LB9 User’s Guide 1314/1523

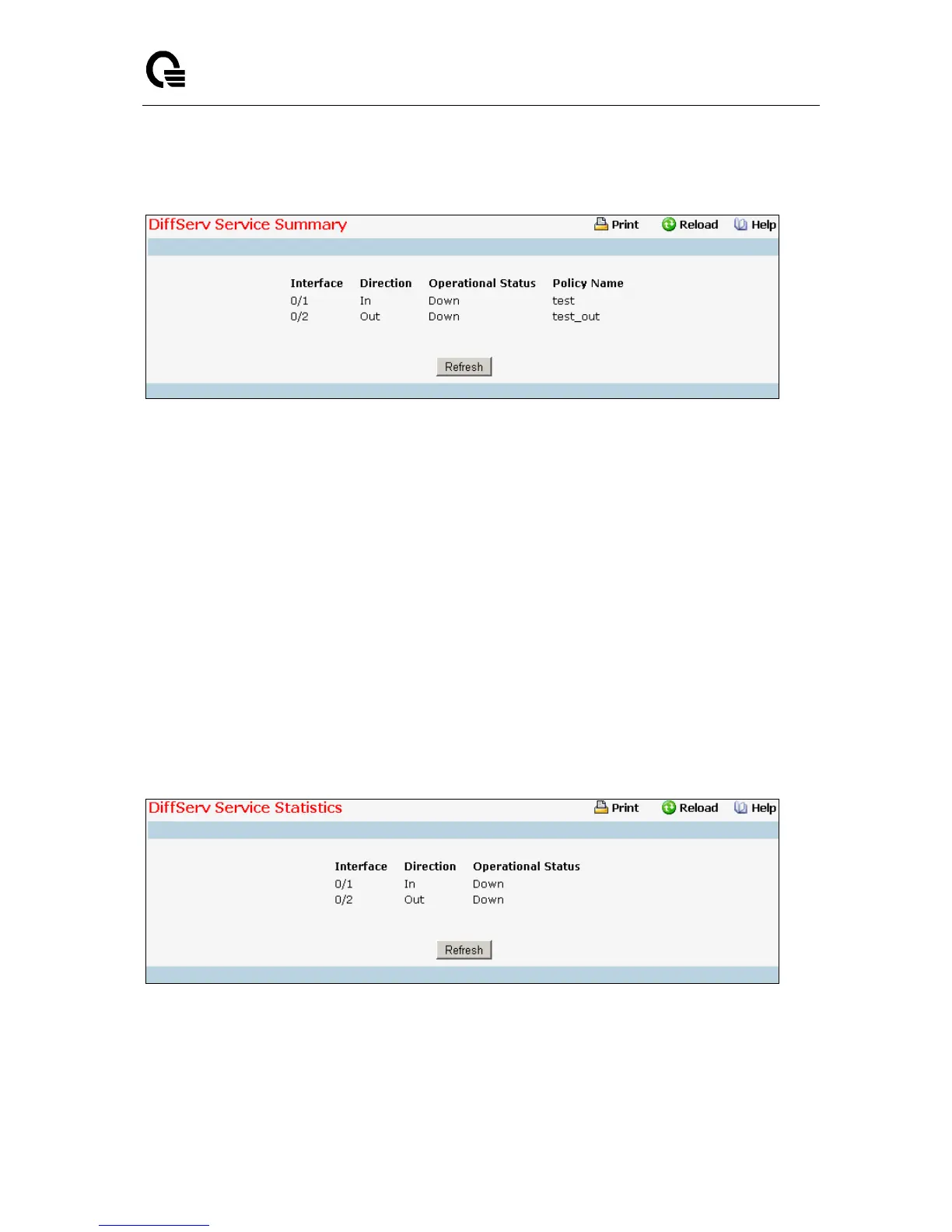

11.5.1.9 Viewing DiffServ Service Summary Page
Non-Configurable Data
Slot/Port - Shows the Slot/Port that uniquely specifies an interface.
Direction - Shows traffic direction for this service interface.
Operational Status - Shows the operational status of this service interface, either Up or Down.
Policy Name - Shows the name of the attached policy.
Command Buttons
Refresh - Refresh the displayed data.
11.5.1.10 Viewing DiffServ Service Statistics Page
This screen displays service-level statistical information in tabular form for all interfaces in the system to
which a DiffServ policy has been attached in the inbound and/or outbound traffic directions. Use the
'Counter Mode Selector' to specify the counter display mode as either octets or packets (the default).
Non-Configurable Data
Interface - Shows the Slot/Port that uniquely specifies an interface.
Direction - Shows traffic direction for this service interface.
Operational Status - Shows the operational status of this service interface, either Up or Down.
