Command Buttons
Refresh - Refresh the displayed data.

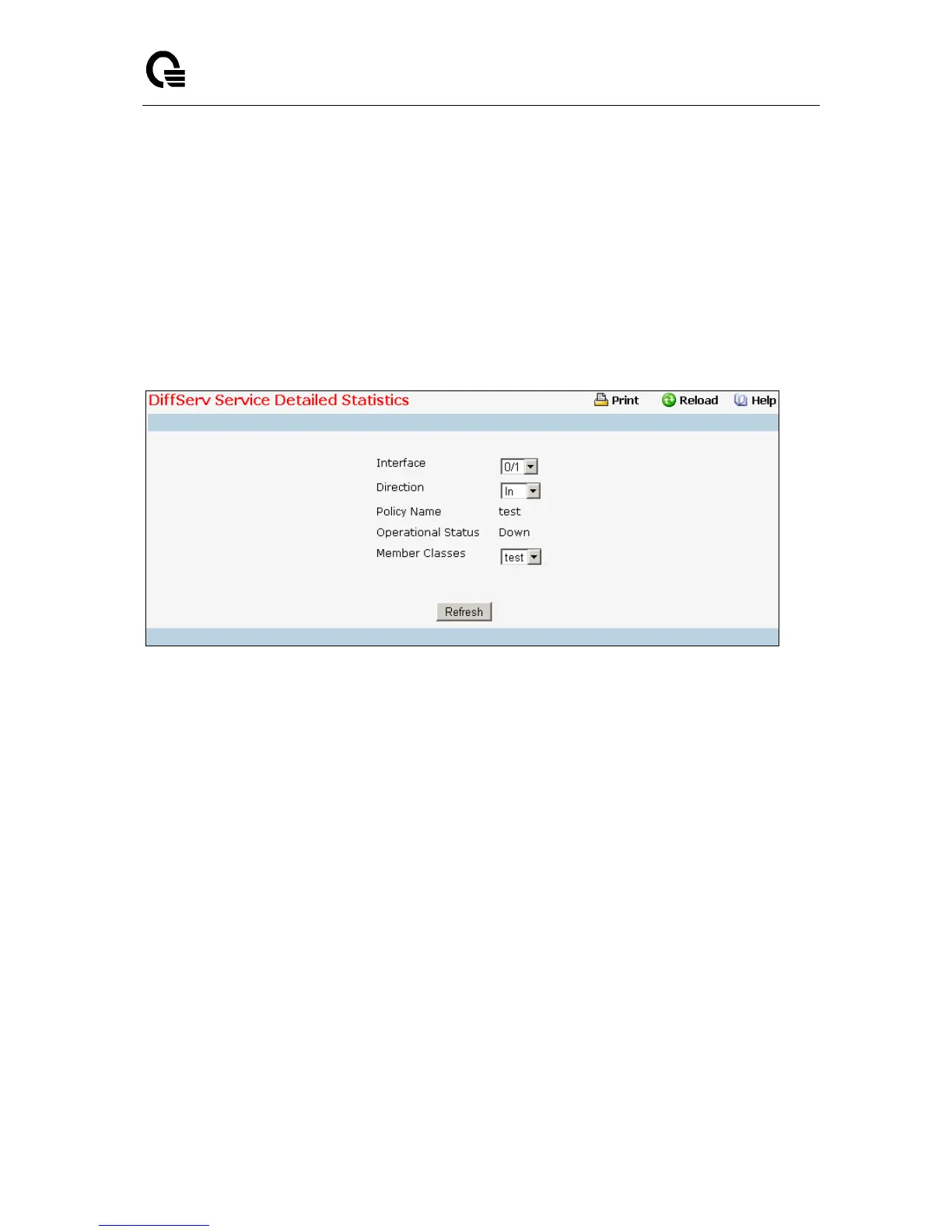

11.5.1.11 Viewing DiffServ Service Detailed Statistics Page
This screen displays class-oriented statistical information for the policy, which is specified by the
interface and direction. The 'Member Classes' drop down list is populated on the basis of the specified
interface and direction and hence the attached policy (if any). Highlighting a member class name
displays the statistical information for the policy-class instance for the specified interface and direction.
Selection Criteria
Slot/Port - List of all valid slot number and port number combinations in the system that have a
DiffServ policy currently attached (in either direction), from which one can be chosen.
Direction - List of the traffic direction of interface. Only shows the direction(s) for which a DiffServ
policy is currently attached.
Member Classes - List of all DiffServ classes currently defined as members of the selected Policy
Name. Choose one member class name at a time to display its statistics. If no class is associated
with the chosen policy then nothing will be populated in the list.
Non-Configurable Data
Policy Name - Name of the policy currently attached to the specified interface and direction.
Operational Status - Operational status of the policy currently attached to the specified interface
and direction. The value is either Up or Down.
Command Buttons
Refresh - Refresh the displayed data.
To Next Page
