LB9 User’s Guide 1331/1523
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.

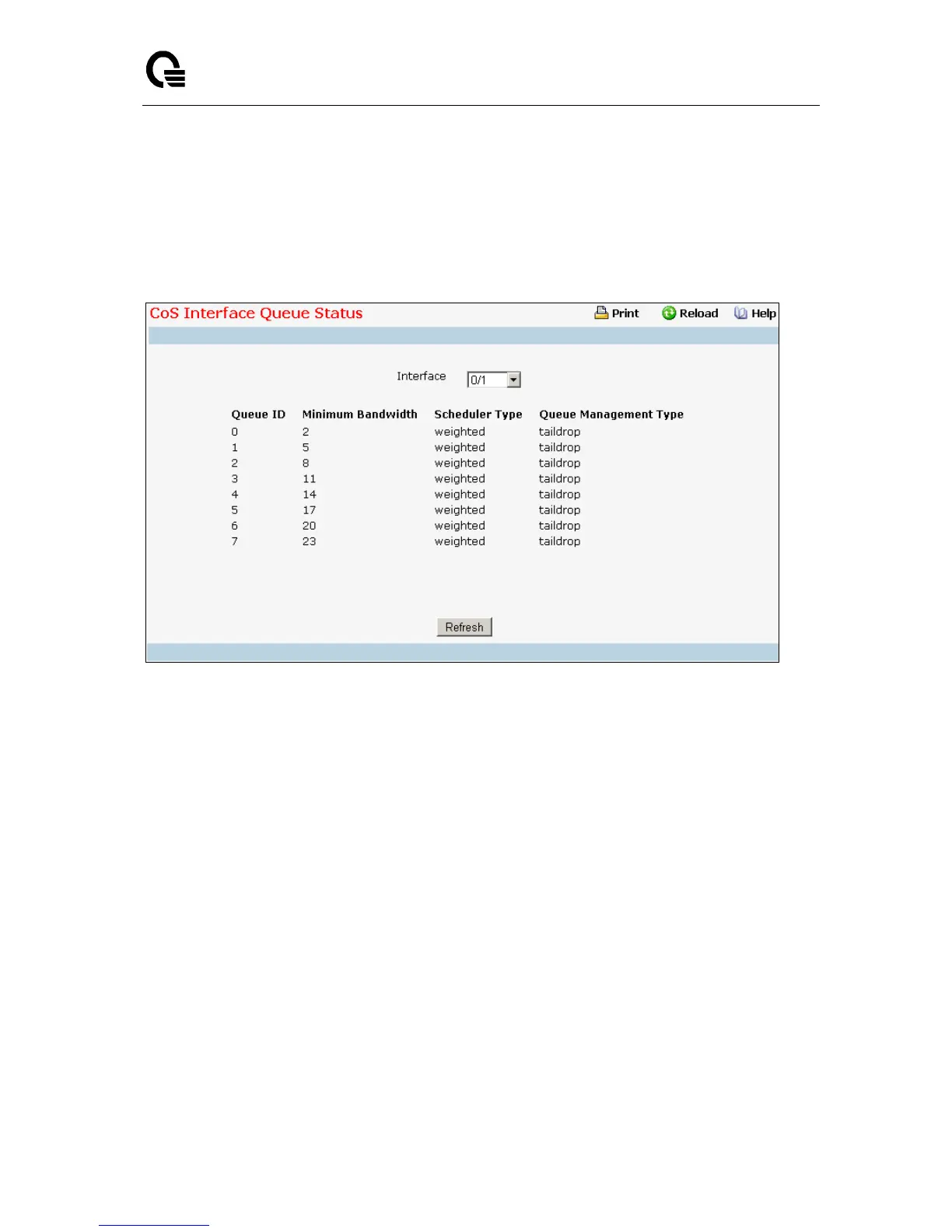

11.5.5.6 Viewing CoS interface queue status
Selection Criteria
Interface - Specifies all CoS configurable interfaces. The option "Global" represents the most recent
global configuration settings. These may be overridden on a per-interface basis.
Non-Configurable Data
Queue ID - Specifies the queueID.
Minimum Bandwidth - Specifies the minimum guaranteed bandwidth allotted to this queue. The
value 0 means no guaranteed minimum. Sum of individual Minimum Bandwidth values for all queues
in the selected interface cannot exceed defined maximum (100).
Scheduler Type - Specifies the type of scheduling used for this queue.
Scheduler Type can only be one of the following:
ï‚· strict
ï‚· weighted
Queue Management Type - Queue depth management technique used for queues on this
interface. This is only used if device supports independent settings per-queue.
Queue Management Type can only be one of the following:
ï‚· taildrop
