LB9 User’s Guide 1369/1523

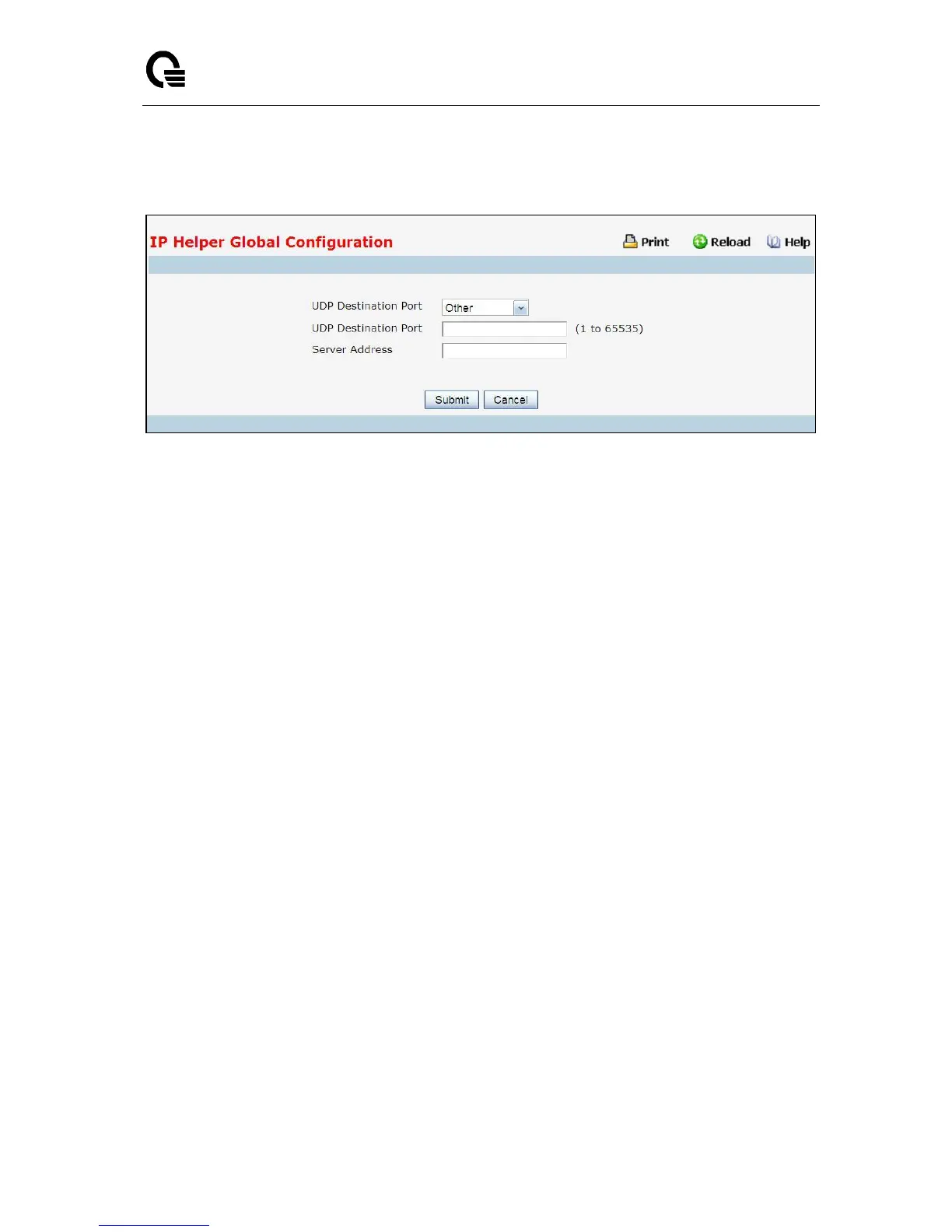

11.6.5.2 Adding Global IP Helper Address
Configurable Data
UDP Destination Port (1 to 65535) - The destination UDP port ID/Port Name of UDP packets to be
relayed. Select the protocol from the menu. If the user wants to configure other than the listed
protocols, select Other from the menu. Then user will be prompted with the UDP Destination Port
field. Select the DefaultSet to configure for the relay entry for the default set of protocols.
Server Address - The Server Address to which the packets with the given UDP Destination Port will
be relayed.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Cancel - Discards the changes made on the page.
