LB9 User’s Guide 1370/1523

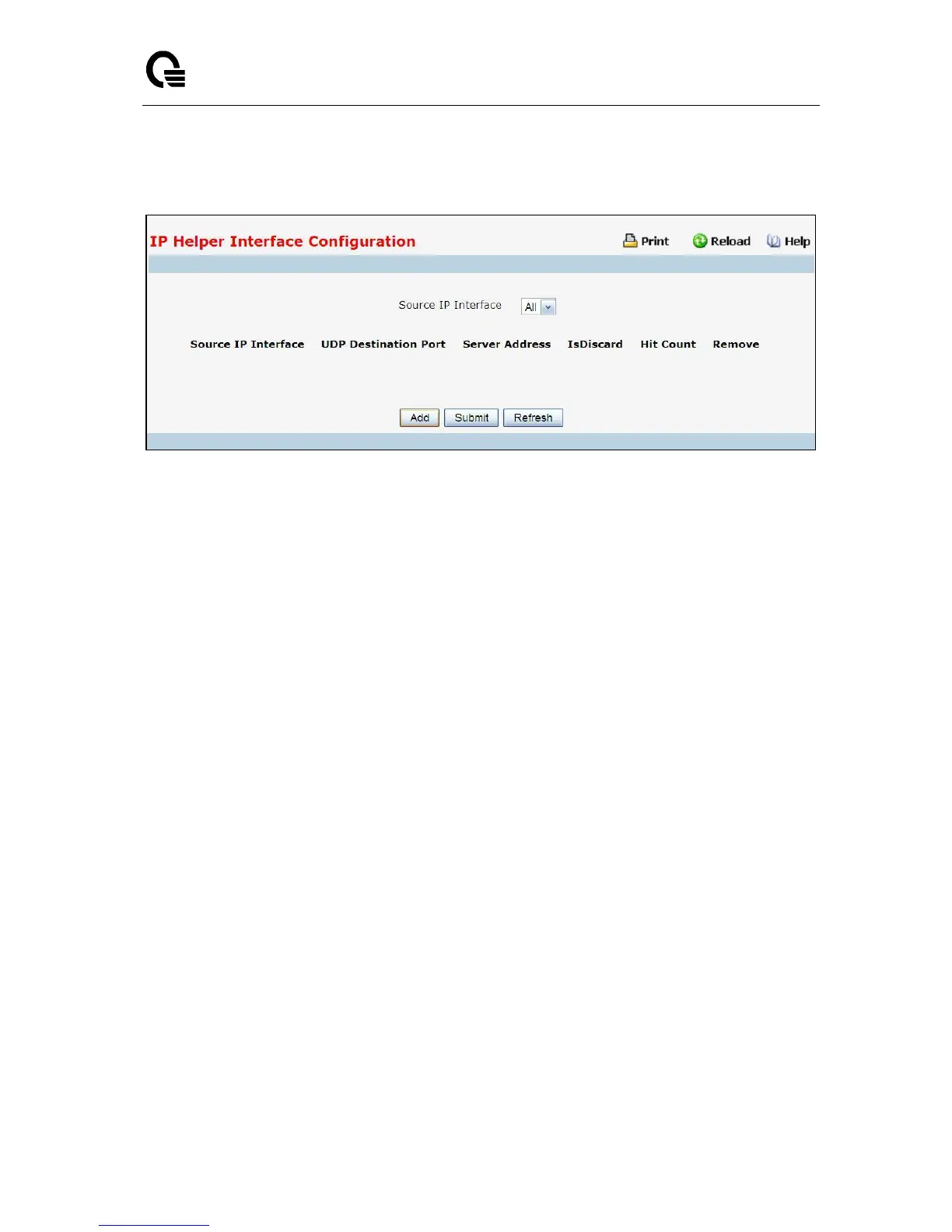

11.6.5.3 Configuring Interface IP Helper
Configurable Data
Source IP Interface - Select the interface from the pull down menu to get the relay entries
configured on a particular interface. If "All" is selected all the configured relay entries on all interfaces
will be displayed.
Remove - Removes the specified UDP Relay Entry when selected and "Submit" is pressed.
Command Buttons
Add - Used to add UDP Relay/Helper IP configuration.
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
