LB9 User’s Guide 1376/1523

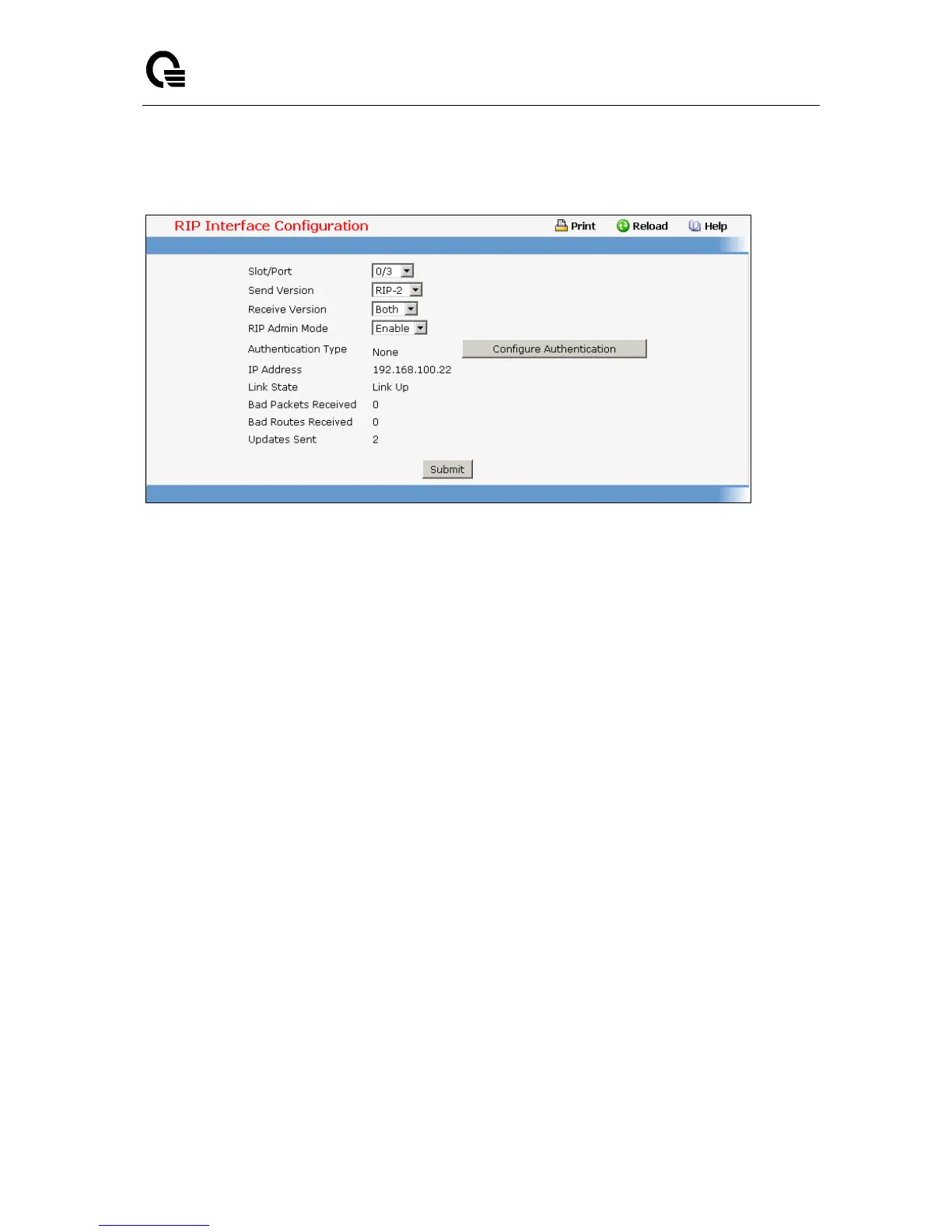

11.6.6.3 Defining The Routing Interface’s RIP Configuration Page
Selection Criteria
Slot/Port - Select the interface for which data is to be configured.
Configurable Data
Send Version - Select the version of RIP control packets the interface should send from the
pulldown menu. The value is one of the following:
RIP-1 - send RIP version 1 formatted packets via broadcast.
RIP-1c - RIP version 1 compatibility mode. Send RIP version 2 formatted packets via broadcast.
RIP-2 - send RIP version 2 packets using multicast.
None - no RIP control packets will be sent.
The default is RIP-2.
Receive Version - Select what RIP control packets the interface will accept from the pulldown
menu. The value is one of the following:
RIP-1 - accept only RIP version 1 formatted packets.
RIP-2 - accept only RIP version 2 formatted packets.
Both - accept packets in either format.
None - no RIP control packets will be accepted.
The default is Both.
RIP Admin Mode - Select enable or disable from the pulldown menu. Before you enable RIP version
1 or version 1c on an interface, you must first enable network directed broadcast mode on the
corresponding interface. The default value is disabled.
Authentication Type - You may select an authentication type other than none by clicking on the
'Configure Authentication' button. You will then see a new screen, where you can select the
authentication type from the pulldown menu. The choices are:
