LB9 User’s Guide 1394/1523

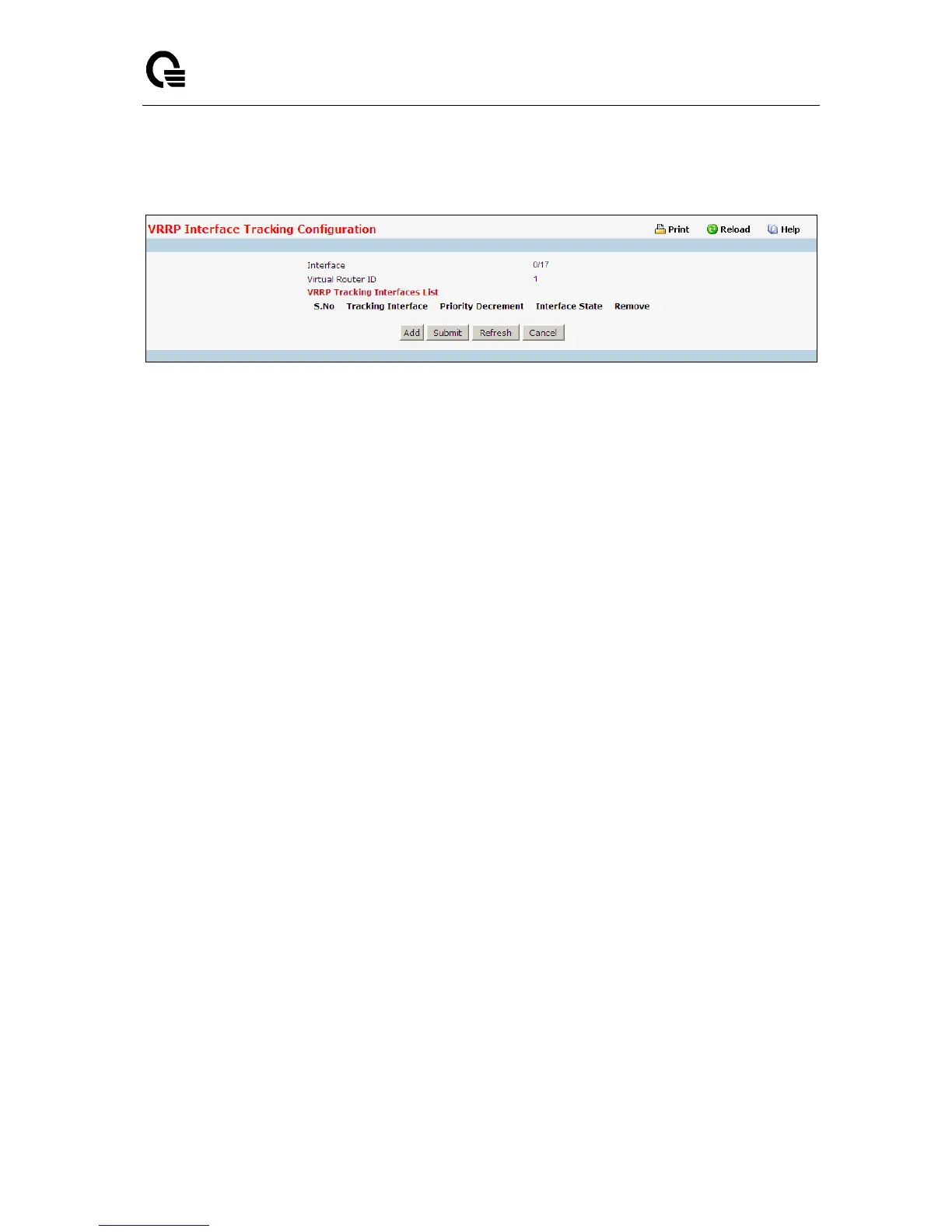

11.6.10.4 Configuring VRRP Interface Tracking
Configurable Data
Priority Decrement - The priority decrement for the tracked interface. The valid range is 1 -254.
default value is 10.
Remove - Removes the selected Tracking interface from the VRRP tracked list.
Non-Configurable Data
Interface - The interface for which data is to be displayed.
Virtual Router ID - The Virtual Router ID for which data is to be displayed.
S.No - The serial number for this row.
Tracking Interface - The Tracked interface for which data is to be displayed or configured.
Interface State - The IP state of the tracked interface.
Command Buttons
Add - Proceed to the VRRP Track interface screen.
Submit - Send the updated configuration to the router. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Cancel - Return to the Virtual Router Configuration screen.
