LB9 User’s Guide 1425/1523
Non-Configurable Data
Area ID - The OSPFv3 area.
IPv6 Prefix - The IPv6 Prefix of an address range for the area.
LSDB Type - The Link Advertisement type for the address range and area.
Advertise - The Advertisement mode for the address range and area.
Remove - Check box to remove the particular entry from the table.
Command Buttons
Create - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
The new address range will be added to the display in the non-configurable data area.
Delete - Removes the specified address range from the area configuration.
Refresh - Refresh the data on the screen with the present state of the data in the switch.

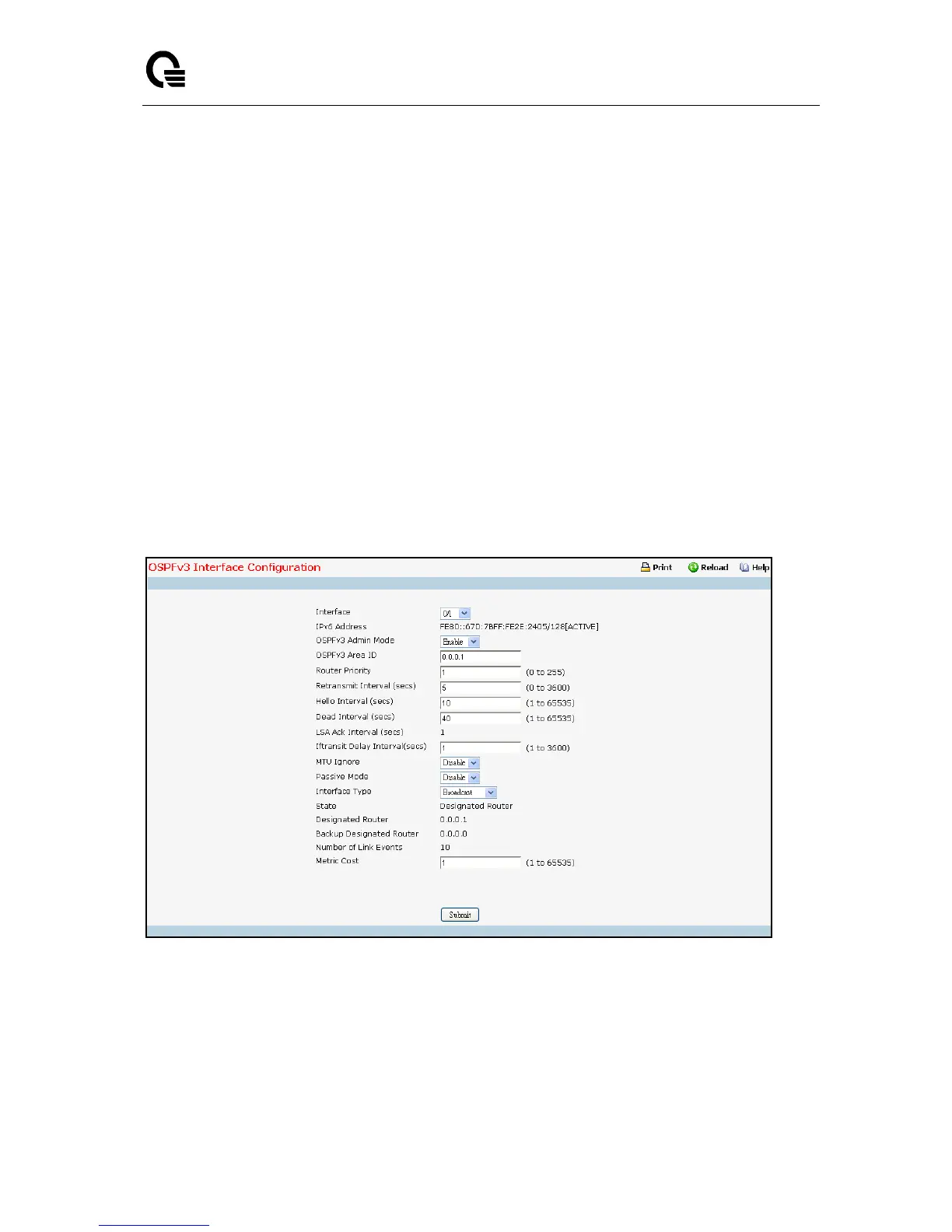

11.7.7.5 Configuring OSPFv3 Interface Configuration Page
Selection Criteria
Interface - Select the interface for which data is to be displayed or configured.
Configurable Data
OSPFv3 Admin Mode* - You may select enable or disable from the pulldown menu. The default
value is 'disable.' You can configure OSPFv3 parameters without enabling OSPFv3 Admin Mode,
but they will have no effect until you enable Admin Mode. The following information will be displayed
