LB9 User’s Guide 1424/1523

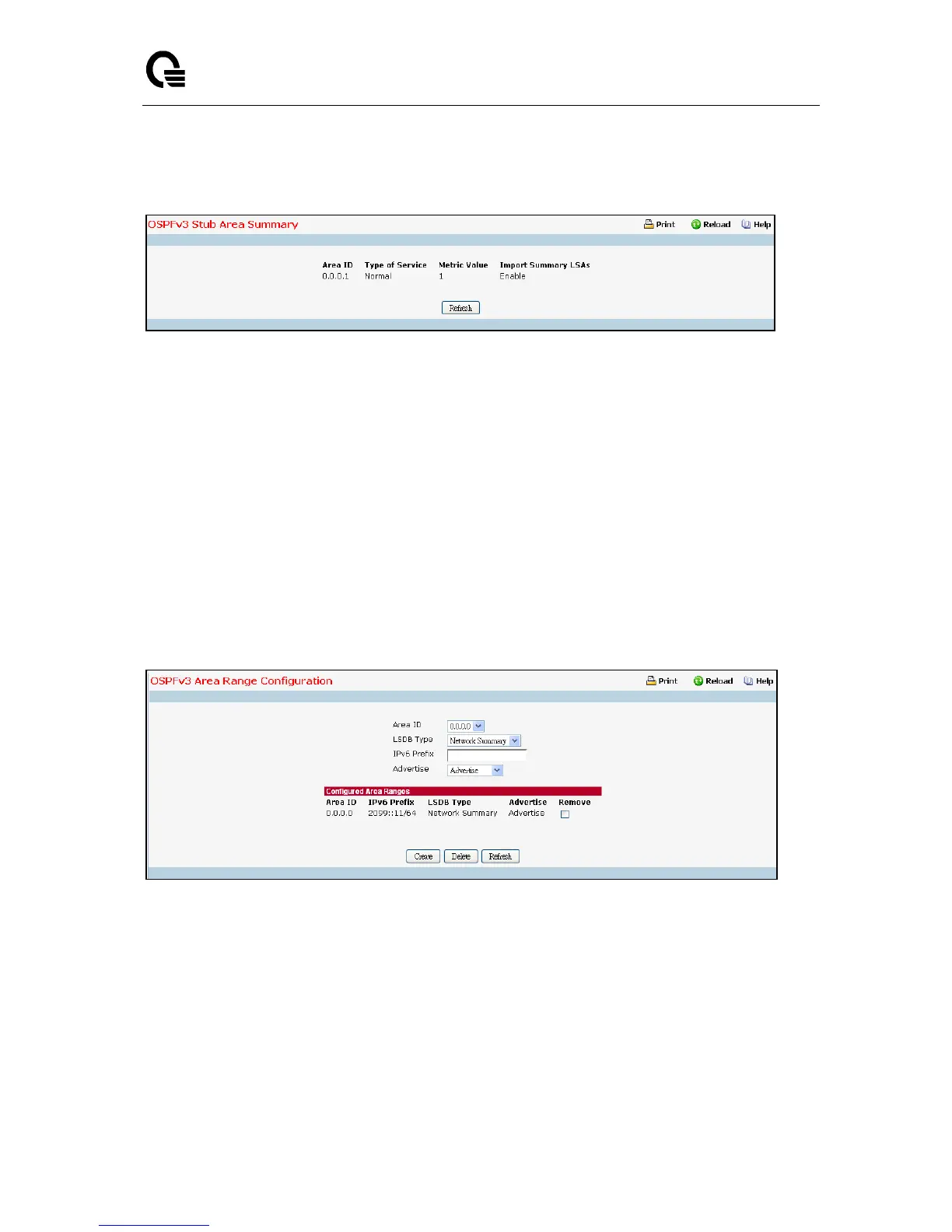

11.7.7.3 Viewing OSPFv3 Stub Area Summary Page
Non-Configurable Data
Area ID - The Area ID of the Stub area
Type of Service - Displays the type of service of the Stub Area.
Metric Value - The metric value applied to the default route advertised into the area.
Import Summary LSAs - Whether the import of Summary LSAs is enabled or disabled.
Command Buttons
Refresh - Refresh the data on the screen to the current values from the switch.
11.7.7.4 Configuring OSPFv3 Area Range Configuration Page
Selection Criteria
Area ID - Selects the area for which data is to be configured.
LSDB Type - Select the type of Link Advertisement associated with the specified area and address
range. The default type is 'Network Summary'.
Advertise - Select 'Advertise' or 'Do Not Advertise' from the pull-down menu. If you selected
Advertise, the address range will be advertised outside the area via a Network Summary or NSSA
External LSA. The default is 'Advertise'.
Configurable Data
IPv6 Prefix - Enter the IPv6 Prefix/Prefix Length for the address range for the selected area.
