LB9 User’s Guide 1443/1523

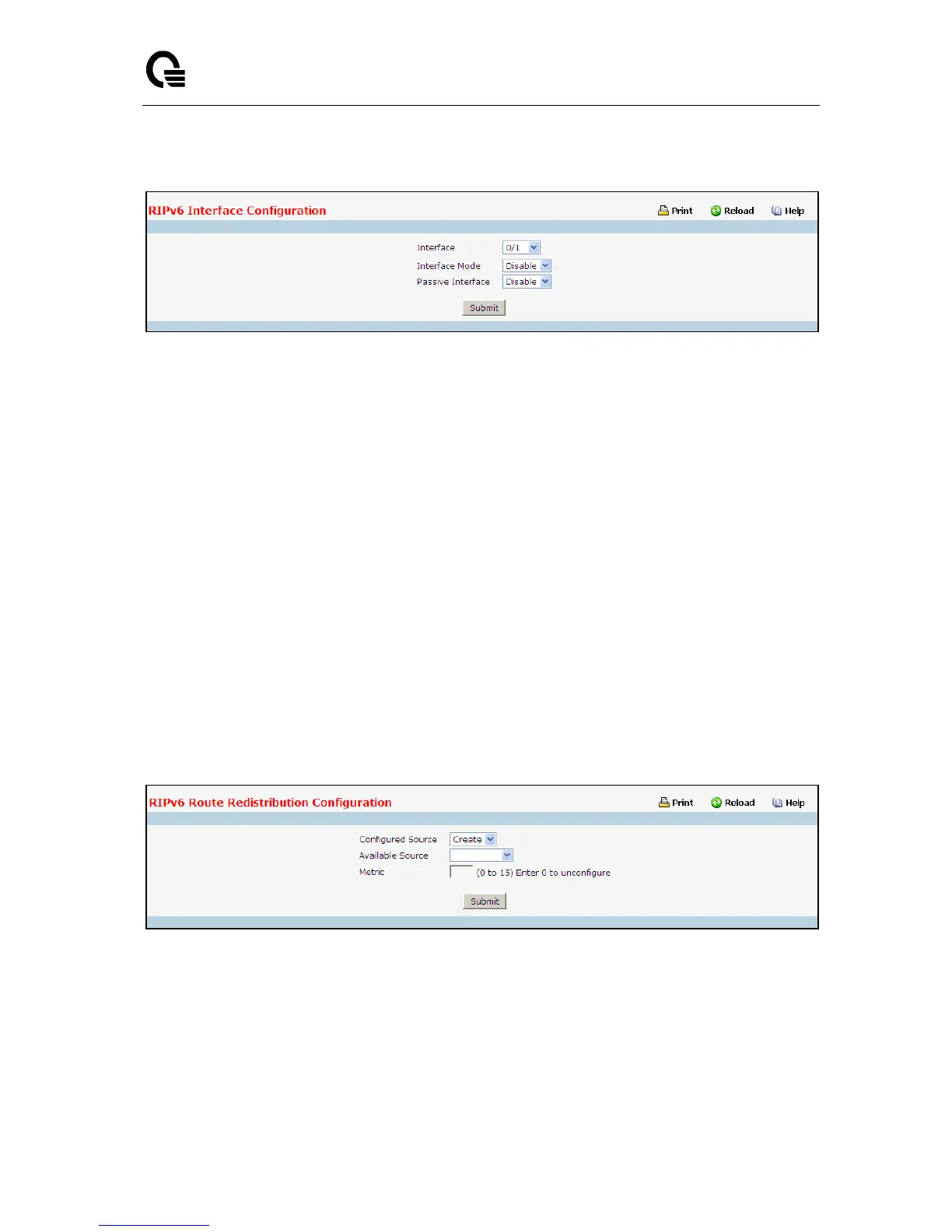

11.7.9.2 Configuring RIPv6 Interface Configuration Page
Selection Criteria
Interface - Select the interface for which data is to be configured.
Configurable Data
Interface Mode - Select enable or disable from the pulldown menu. Before you enable RIPv6
version 1 or version 1c on an interface, you must first enable network directed broadcast mode on
the corresponding interface. The default value is disabled.
Passive Interface - Select enable or disable from the pulldown menu. The default value is disabled.
Command Buttons
Submit - Send the updated configuration to the switch. Configuration changes take effect
immediately. These changes will not be retained across a power cycle unless a save is performed.
11.7.9.3 Configuring RIPv6 Redistribution Configuration Page
This screen can be used to configure the RIPv6 Route Redistribution parameters. The allowable values
for each fields are displayed next to the field. If any invalid values are entered, an alert message will be
displayed with the list of all the valid values.
Configurable Data
Configured Source - This select box is a dynamic selector and would be populated by only those
Source Routes that have already been configured for redistribute by RIPv6. However, the topmost
option in the select box would be "Create", and this allows the user to configure another, among the
Available Source Routes. The valid values are
- Create
- Static
