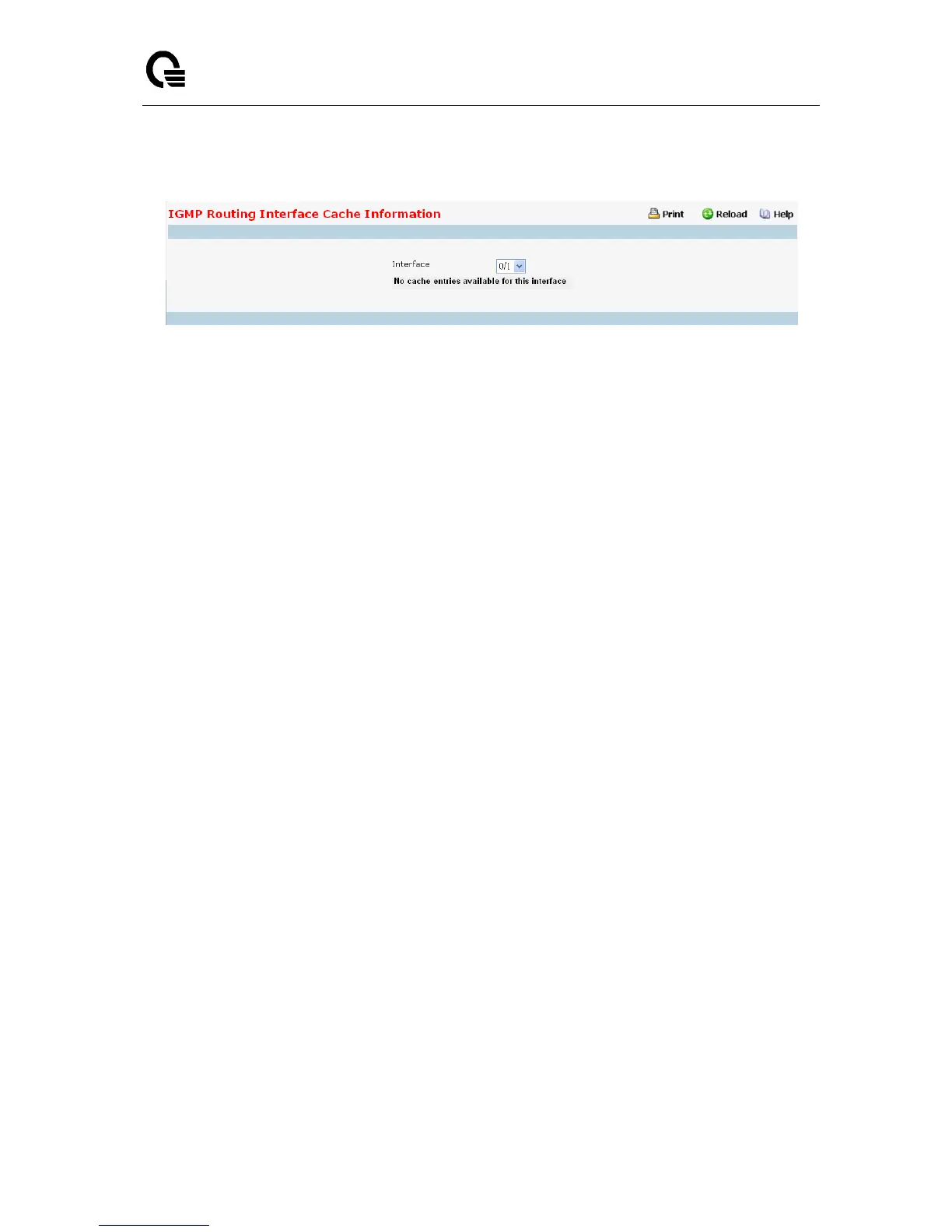

11.8.6.4 Viewing IGMP Routing Interface Cache Information
Selection Criteria
Multicast Group IP - Select the IP multicast group address for which data is to be displayed. If no
group membership reports have been received on the selected interface you cannot make this
selection, and none of the data on this page displays.
Interface - Select the interface for which data is to be displayed.
Non-Configurable Data
Last Reporter - The IP address of the source of the last membership report received for the IP
Multicast group address on the selected interface.
Up Time - The time elapsed (in hh:mm:ss) since this entry was created.
Expiry Time - Cache timer value,which indicates the remaining lifetime (in hh:mm:ss) for each entry.
Version 1 Host Timer - The time (in hh:mm:ss) remaining until the local router assumes that there
are no longer any IGMP version 1 members on the IP subnet attached to this interface. When an
IGMPv1 membership report is received, this timer is reset to the group membership timer. While this
timer is non-zero, the local router ignores any IGMPv2 leave messages for this group that it receives
on the selected interface. This field is displayed only if the interface is configured for IGMP version 1.
Version 2 Host Timer - The time (in hh:mm:ss) remaining until the local router assumes that there
are no longer any IGMP version 2 members on the IP subnet attached to this interface. When an
IGMPv2 membership report is received, this timer is reset to the group membership timer. While this
timer is non-zero, the local router ignores any IGMPv1 and IGMPv3 leave messages for this group
that it receives on the selected interface. This field is displayed only if the interface is configured for
IGMP version 2.
Compatibility - This parameter shows group compatibility mode (v1, v2 and v3) for this group on the
specified interface.
Filter Mode - The source filter mode (Include/Exclude/NA) for the specified group on this interface.
When NA mode is active the field is blank.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
