LB9 User’s Guide 1461/1523

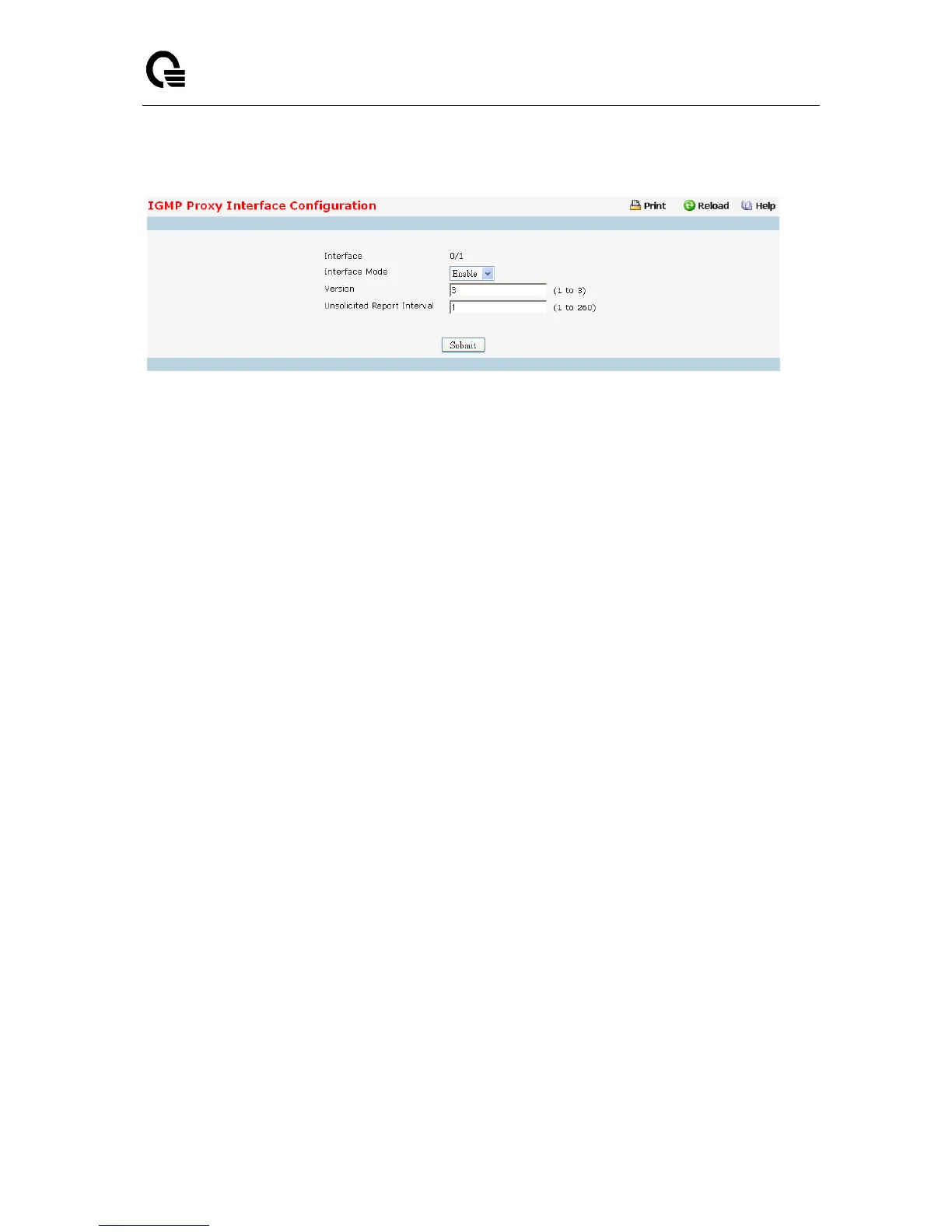

11.8.6.6 Configuring IGMP Proxy Interface Configuration
Selection Criteria
Interface - Select the port for which data is to be displayed or configured from the pull down menu.
You must have configured at least one router interface before configuring or displaying data for an
IGMP Proxy interface and it should not be a IGMP routing interface. This field is configurable only
when interface mode is disabled.
Configurable Data
Interface Mode - Select enable or disable from the pull down menu to set the administrative status
of IGMP Proxy on the selected interface. The default is disable. Routing, IGMP and Multicast global
admin modes should be enabled to enable IGMP Proxy interface mode.
Version - Enter the version of IGMP you want to configure on the selected interface. Valid values
are (1 to 3) and the default value is 3. This field is configurable only when IGMP Proxy interface
mode is enabled.
Unsolicited Report Interval - Enter the unsolicited time interval value in seconds. The Unsolicited
Report Interval is the time between repetitions of a host's initial report of membership in a group.
Valid values are from (1 to 260). The default value is 1.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
