LB9 User’s Guide 1463/1523
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Clear Statistics - Clear the IGMP Proxy interface statistics.

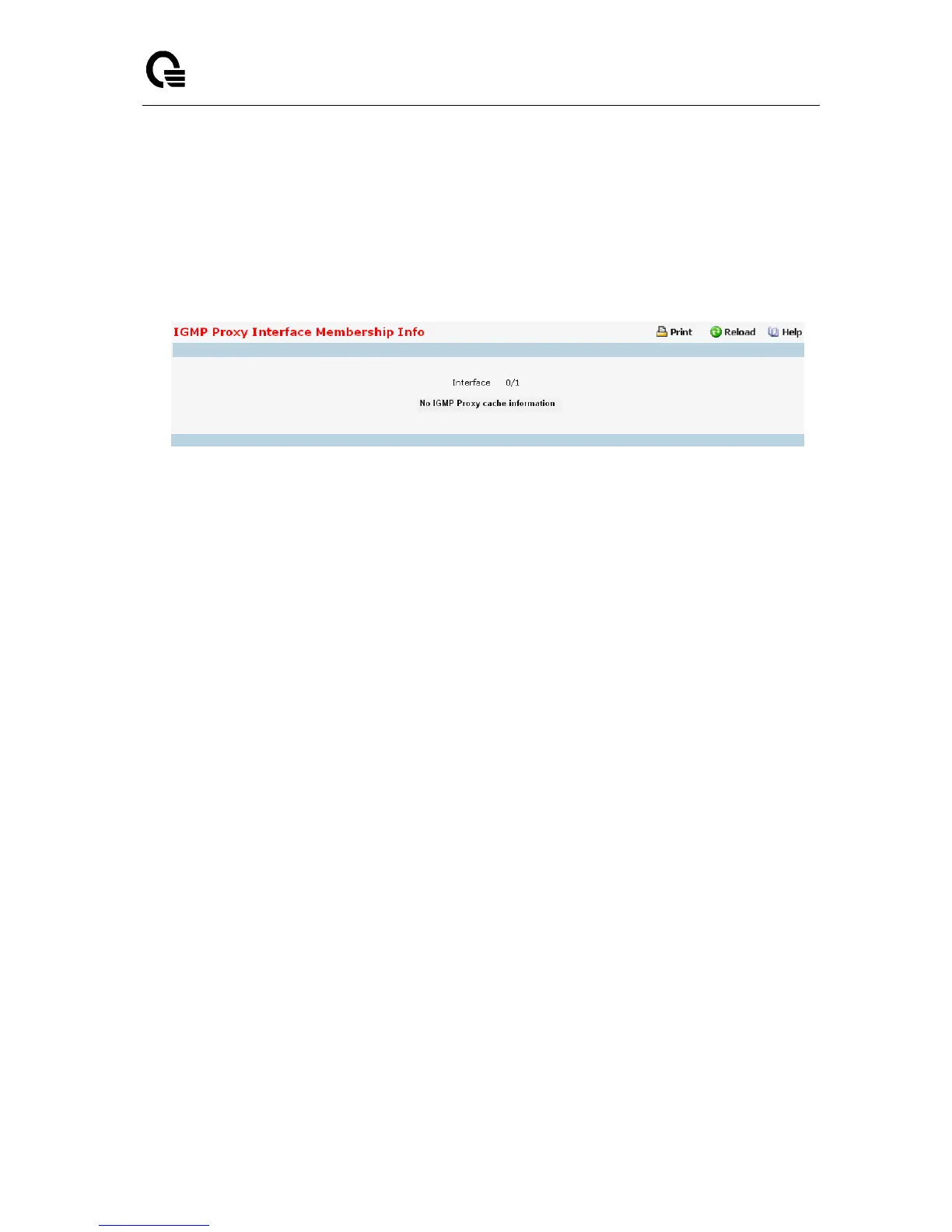

11.8.6.8 Viewing IGMP Proxy Interface MemberShip Information
Selection Criteria
Multicast Group IP - Select the IP multicast group address for which data is to be displayed. If no
group membership reports have been received on the selected interface you will not be able to make
this selection, and none of the non-configurable data will be displayed.
Non-Configurable Data
Interface - Displays the interface on which IGMP proxy is enabled.
Last Reporter - The IP address of the source of the last membership report received for the IP
Multicast group address on the IGMP Proxy interface.
Up Time(hh:mm:ss) - The time elapsed since this entry was created in hours, minutes and
seconds.
State - The state of the host entry. A Host can be in one of the state. Non-member state - does not
belong to the group on the interface. Delaying member state - host belongs to the group on the
interface and report timer running. The report timer is used to send out the reports. Idle member
state - host belongs to the group on the interface and no report timer running.
Filter Mode - The group filter mode (Include/Exclude/None) for the specified group on the IGMP
Proxy interface.
Number of Sources - The number of source hosts present in the selected multicast group.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch.
