LB9 User’s Guide 1464/1523

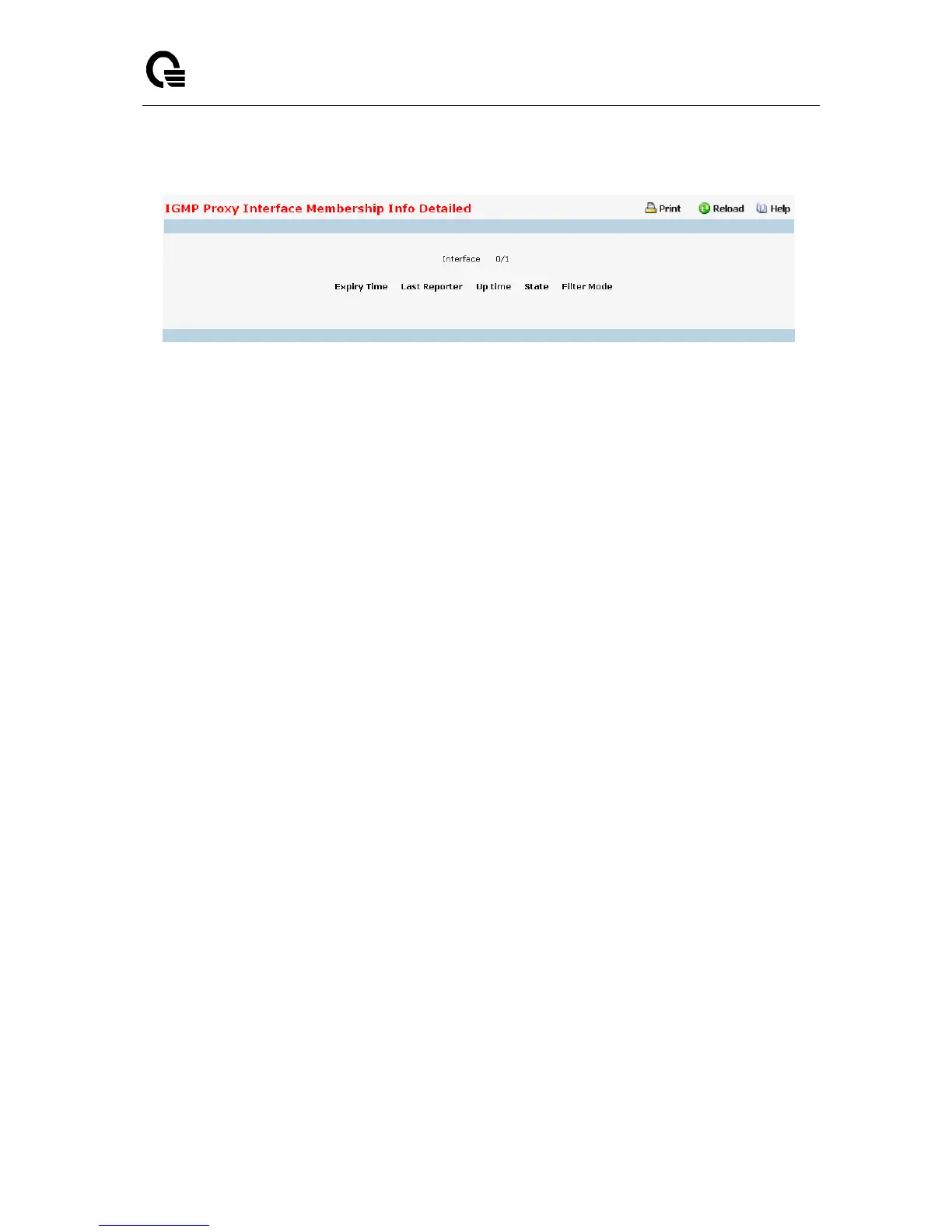

11.8.6.9 Viewing IGMP Proxy Interface Membership Info Detailed
Selection Criteria
Multicast Group IP - Select the IP multicast group address for which data is to be displayed. If no
group membership reports have been received on the IGMP Proxy interface you will not be able to
make this selection, and none of the non-configurable data will be displayed.
Non-Configurable Data
Interface - Displays the interface on which IGMP proxy is enabled.
Source Address - This parameter shows source addresses which are members of this multicast
address.
Expiry Time - This parameter shows expiry time interval against each source address which is a
member of this multicast group. This is the amount of time after which the specified source entry is
aged out.
Last Reporter - The IP address of the source of the last membership report received for the IP
Multicast group address on the selected interface.
Up Time - Displays the up time since the entry was created in cache table..
State - The state of the host entry. A Host can be in one of the state. Non-member state - does not
belong to the group on the interface. Delaying member state - host belongs to the group on the
interface and report timer running. The report timer is used to send out the reports. Idle member
state - host belongs to the group on the interface and no report timer running.
Filter Mode - The group filter mode (Include/Exclude/None) for the specified group on the IGMP
Proxy interface..
