LB9 User’s Guide 1473/1523

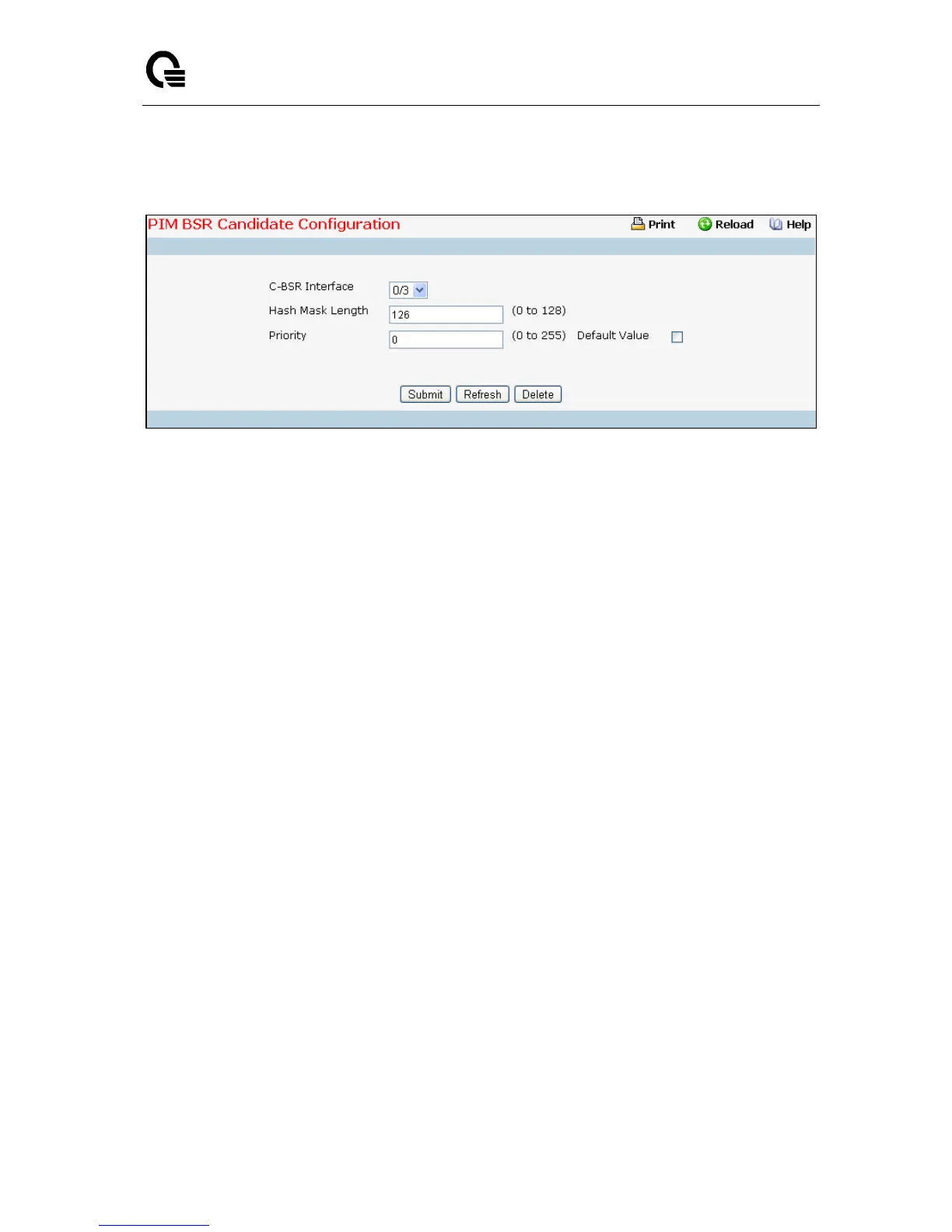

11.8.7.9 Configuring BSR Candidate Configuration
Selection Criteria
C-BSR Interface - Select the interface for which data is to be displayed.
Configurable Data
Hash Mask Length - Enter the C-BSR hash mask length to be advertised in bootstrap messages.
This hash mask length will be used in the hash algorithm for selecting the RP for a particular group.
The valid values are from (0 to 32). Default value is 30.
Priority - Enter the priority of C-BSR. The valid values are from (0 to 255). Default value is 0.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Delete - Deletes the candidate BSR configured on the router.
