LB9 User’s Guide 1481/1523

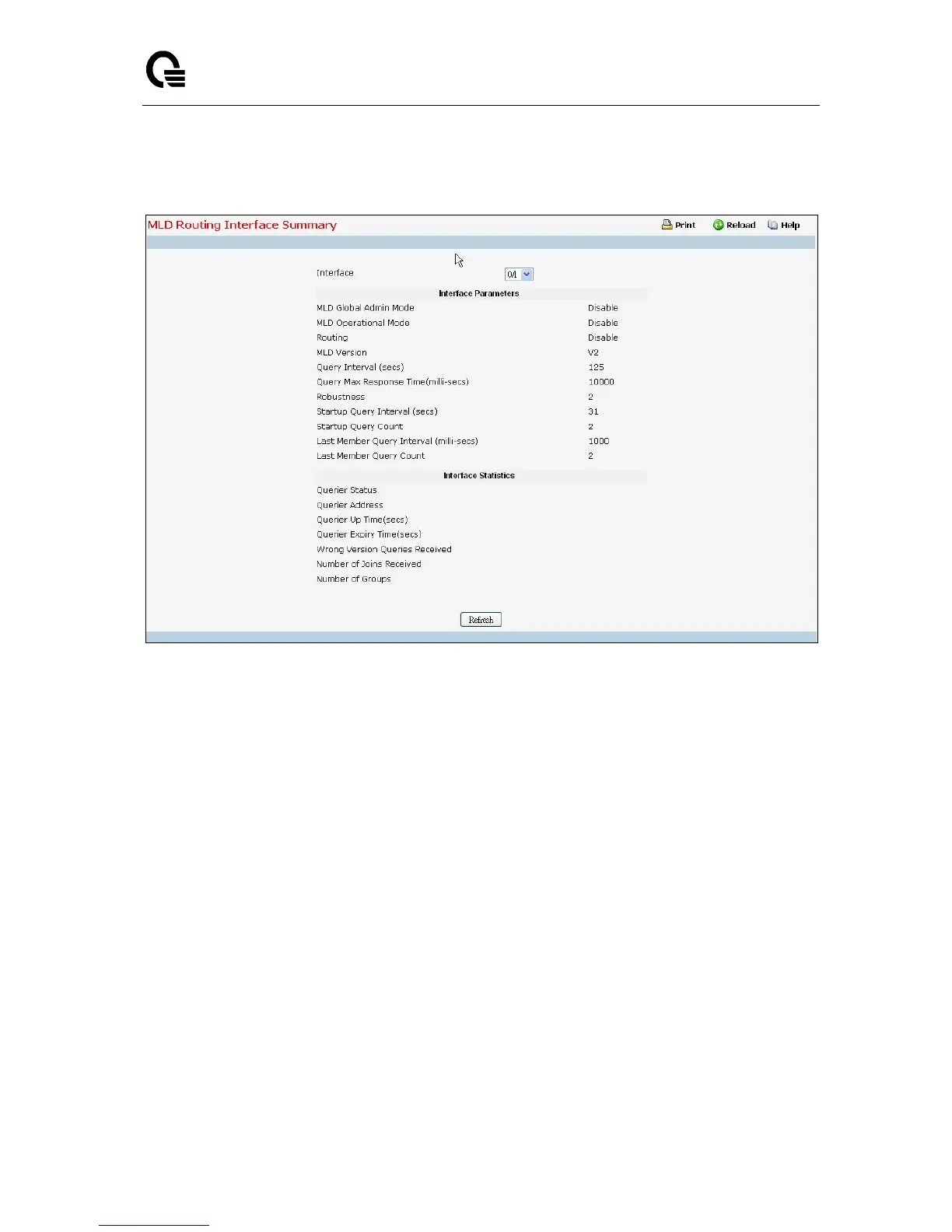

11.9.1.3 Viewing MLD Interface Summary Page
Selection Criteria
Interface - Select the slot and port for which data is to be displayed. Slot 0 is the base unit.
Non-Configurable Data
Interface Parameters
MLD Global Admin Mode - The administrative status of MLD on the selected interface.
MLD Operational Mode- The operational status of MLD on the Interface.
Routing - The Routing mode for an interface.
MLD Version - The version of MLD configured on the selected interface.
Query Interval - This field indicates the configured query interval (in seconds) for the interface.
Query Max Response Time - This field indicates the configured maximum query response time (in
milli-seconds) advertised in MLD queries on this interface.
Robustness - The robustness parameter for the selected interface. This variable allows tuning for
the expected packet loss on a subnet. If a subnet is expected to be lossy, the robustness variable
may be increased. MLD is robust to (robustness variable-1) packet losses.
Startup Query Interval - This value indicates the configured interval (in seconds) between General
Queries sent by a Querier on startup.
Startup Query Count - This value indicates the configured number of Queries sent out on startup,
separated by the Startup Query Interval
