LB9 User’s Guide 1483/1523

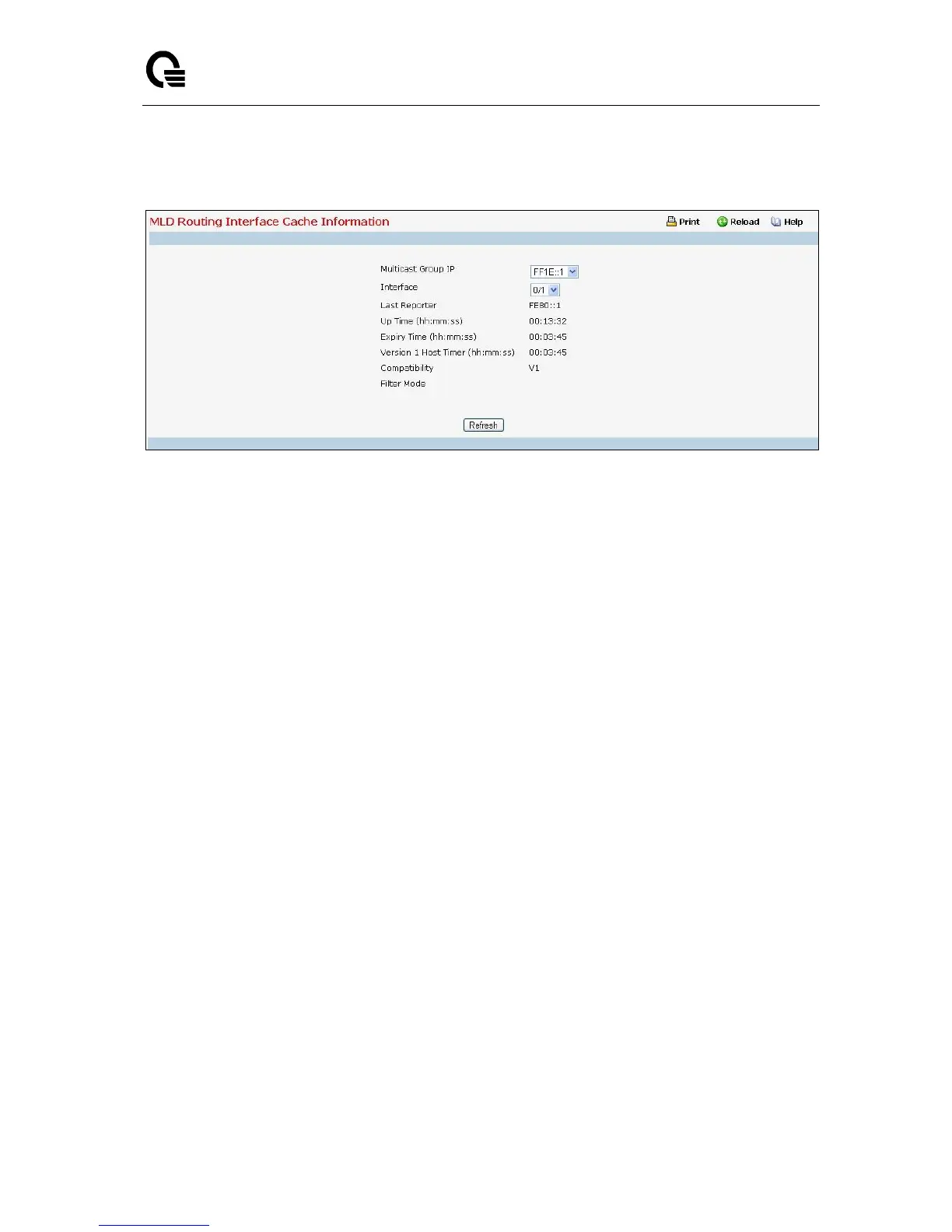

11.9.1.4 Viewing MLD Interface Cache Information
Selection Criteria
Multicast Group IP - Select the IP multicast group address for which data is to be displayed. If no
group membership reports have been received on the selected interface you cannot make this
selection, and none of the data on this page displays.
Interface - Select the interface for which data is to be displayed.
Non-Configurable Data
Last Reporter - The IP address of the source of the last membership report received for the IP
Multicast group address on the selected interface.
Up Time - The time elapsed (in hh:mm:ss) since this entry was created.
Expiry Time - Cache timer value,which indicates the remaining lifetime (in hh:mm:ss) for each entry.
Version 1 Host Timer - The time (in hh:mm:ss) remaining until the local router assumes that there
are no longer any MLD version 1 members on the IPv6 subnet attached to this interface. When an
MLDv1 membership report is received, this timer is reset to the group membership timer.
Compatibility - This parameter shows group compatibility mode (V1 or V2) for this group on the
specified interface.
Filter Mode - The source filter mode (Include/Exclude/NA) for the specified group on this interface.
When NA mode is active the field is blank.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the switch..
