LB9 User’s Guide 1488/1523
Reports Sent - The Reports Sent for MLD version 1.
Leaves Received - The Leaves Received for MLD version 1.
Leaves Sent - The Leaves Sent for MLD version 1.
MLDv2 Statistics
Queries Received - The Queries Received for MLD version 2.
Reports Received - The Reports Received for MLD version 2.
Reports Sent - The Reports Sent for MLD version 2.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
Clear Statistics - Clear the MLD Proxy interface statistics.

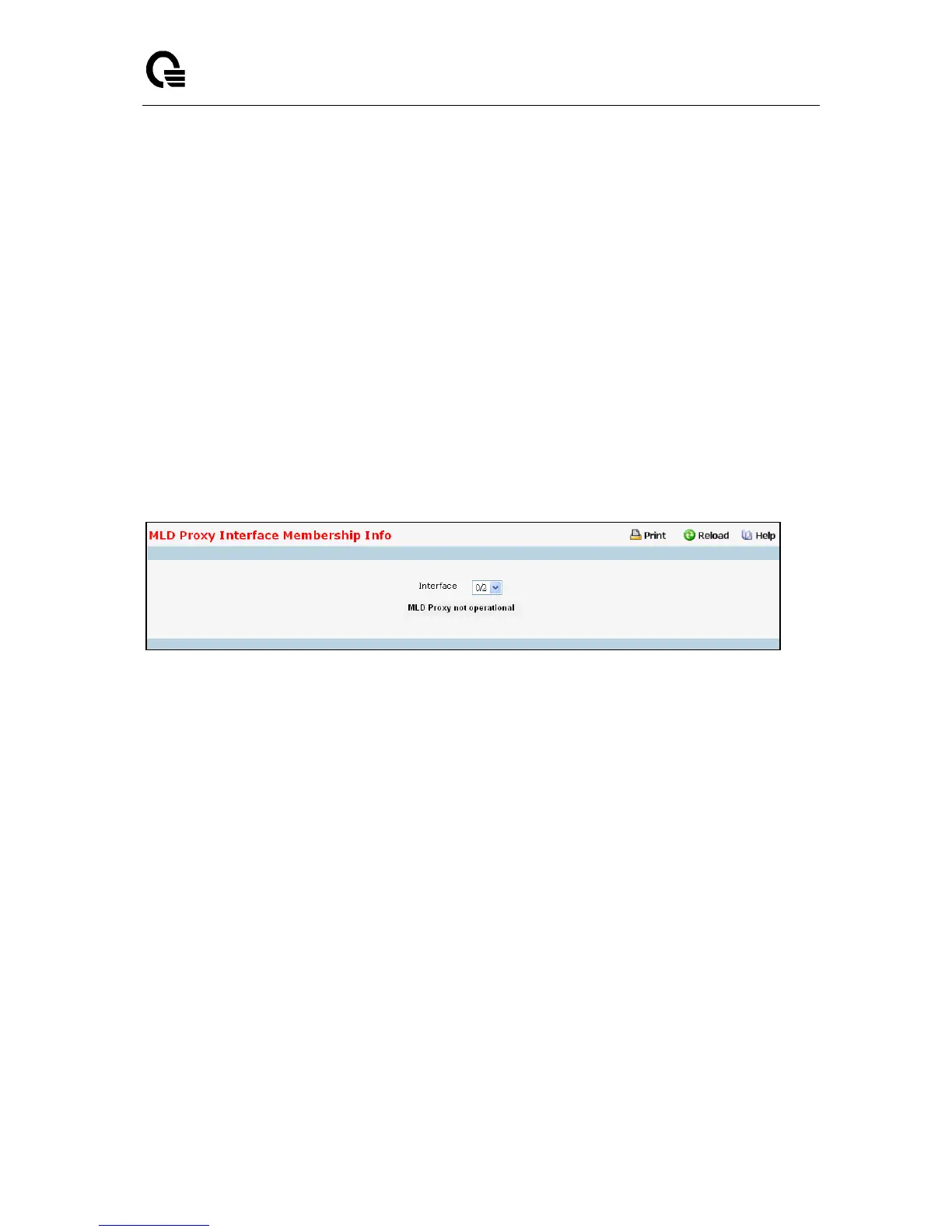

11.9.1.9 Viewing MLD Proxy Interface Membership Information Page
Selection Criteria
Multicast Group IPv6 - Select the IPv6 multicast group address for which data is to be displayed. If
no group membership reports have been received on the selected interface you will not be able to
make this selection, and none of the non-configurable data will be displayed.
Non-Configurable Data
Interface - Displays the interface on which MLD proxy is enabled.
Last Reporter - The IPv6 address of the source of the last membership report received for the IPv6
Multicast group address on the MLD Proxy interface.
Uptime - The time elapsed since this entry was created.
State - The state of the host entry. A Host can be in one of the state. Non-member state - does not
belong to the group on the interface. Delaying member state - host belongs to the group on the
interface and report timer running. The report timer is used to send out the reports. Idle member
state - host belongs to the group on the interface and no report timer running.
Filter Mode - The group filter mode (Include/Exclude/None) for the specified group on the MLD
Proxy interface.
Number of Sources - The number of source hosts present in the selected multicast group.
Command Buttons
Refresh - Refresh the data on the screen with the present state of the data in the router.
