LB9 User’s Guide 1489/1523

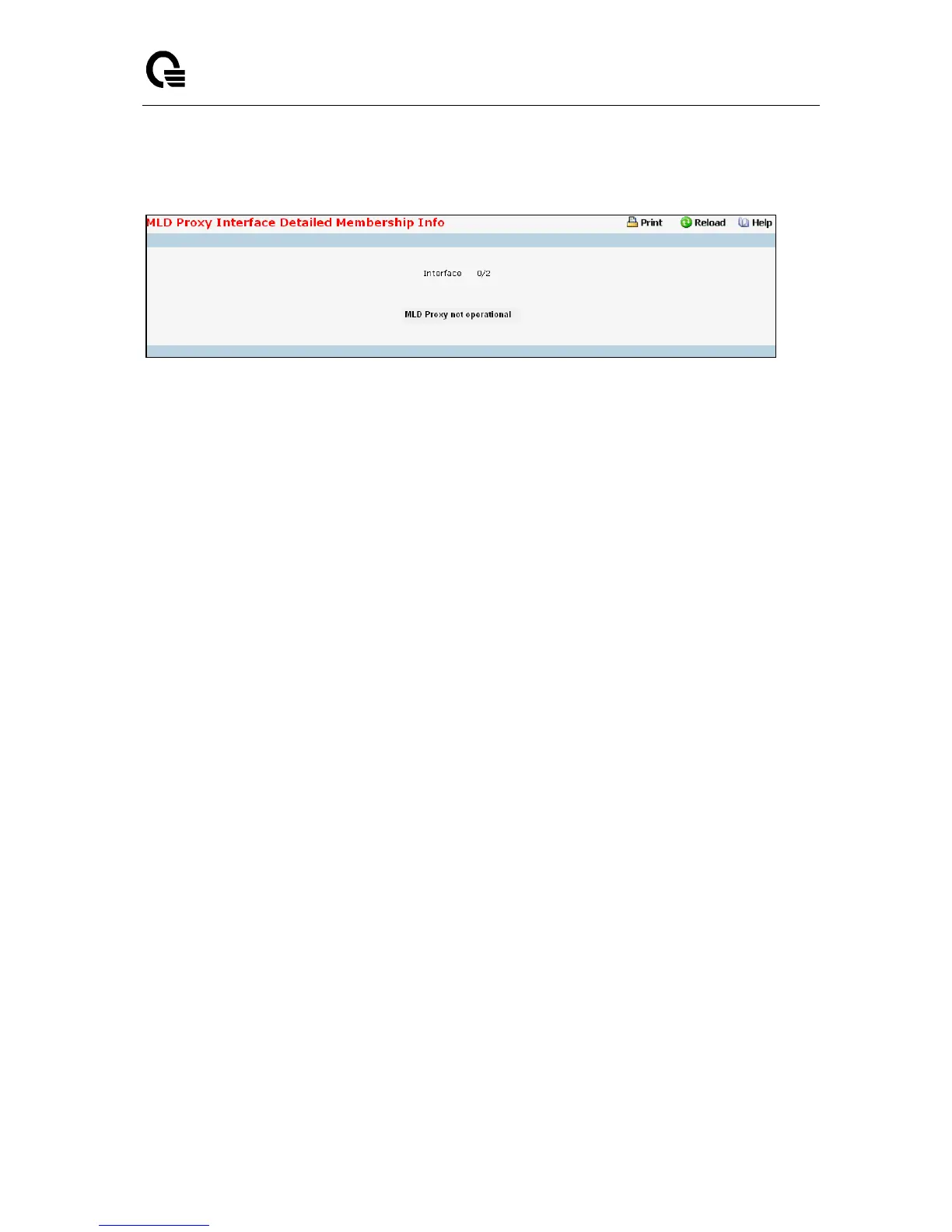

11.9.1.10 Viewing MLD Proxy Interface Membership Details Information Page
Selection Criteria
Multicast Group IPv6 - Select the IPv6 multicast group address for which data is to be displayed. If
no group membership reports have been received on the MLD Proxy interface you will not be able to
make this selection, and none of the non-configurable data will be displayed.
Non-Configurable Data
Interface - Displays the interface on which MLD proxy is enabled.
Source IPv6 - This parameter shows source addresses which are members of this multicast
address.
Expiry Time - This parameter shows expiry time interval against each source address which is a
member of this multicast group. This is the amount of time after which the specified source entry is
aged out.
Last Reporter - The IPv6 address of the source of the last membership report received for the IPv6
Multicast group address on the selected interface.
Up Time - Displays the up time since the entry was created in cache table.
State - The state of the host entry. A Host can be in one of the state. Non-member state - does not
belong to the group on the interface. Delaying member state - host belongs to the group on the
interface and report timer running. The report timer is used to send out the reports. Idle member
state - host belongs to the group on the interface and no report timer running.
Filter Mode - The group filter mode (Include/Exclude/None) for the specified group on the MLD
Proxy interface.
