LB9 User’s Guide 1495/1523

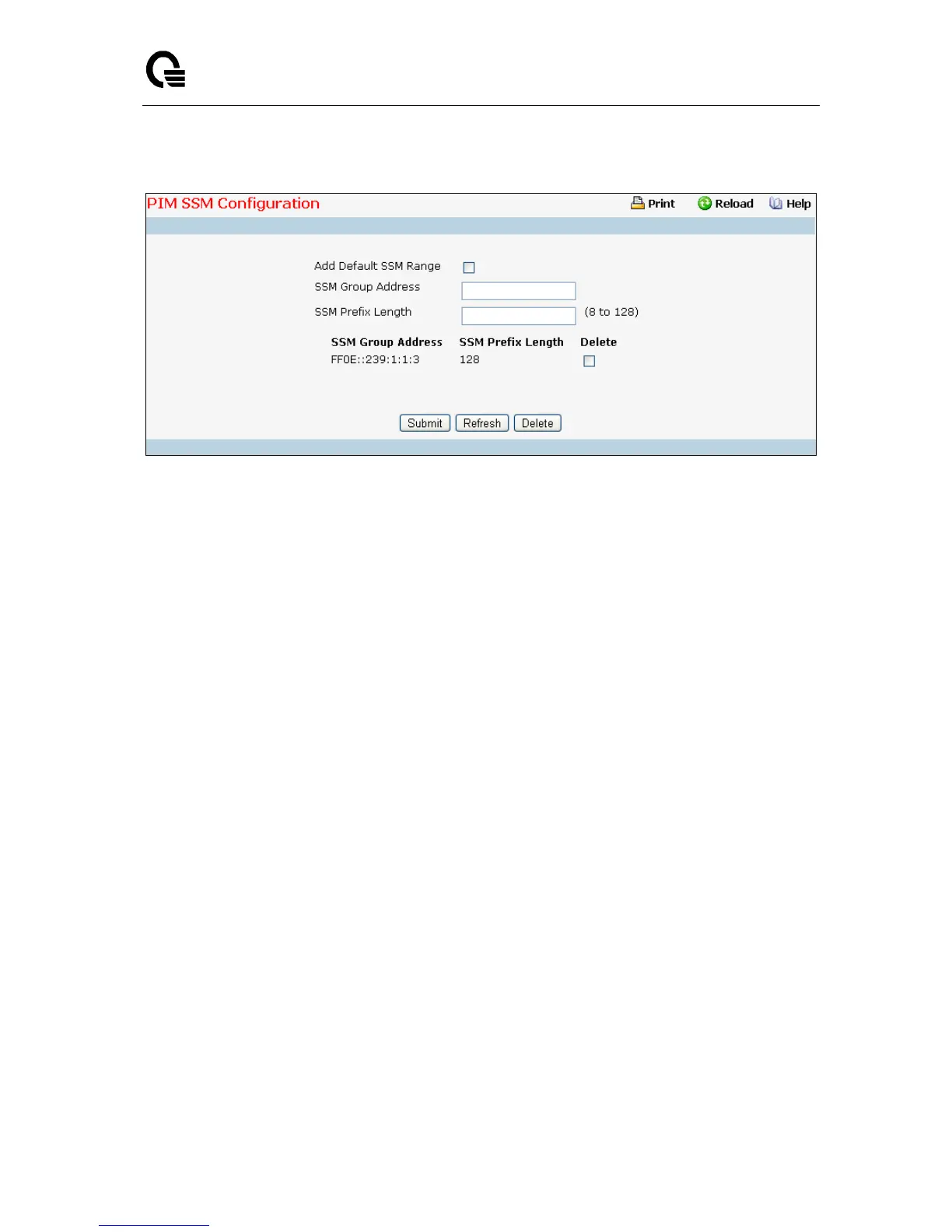

11.9.2.5 Configuring PIM SSM Configuration Page
Configurable Data
Add Default SSM Range - Select this check-box to add default SSM range (FF3x::/32) .
SSM Group Address - Enter the source-specific multicast group ip-address. SSM Group address
for 'FF3x::' is represented by 'FF30::' address.
SSM Prefix Length - Enter the source-specific multicast group ip-address prefix length.
Delete - Check Box to delete a particular SSM Group Address and the SSM Prefix Length entry.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Delete - Deletes the selected SSM ranges in the switch
