LB9 User’s Guide 1496/1523

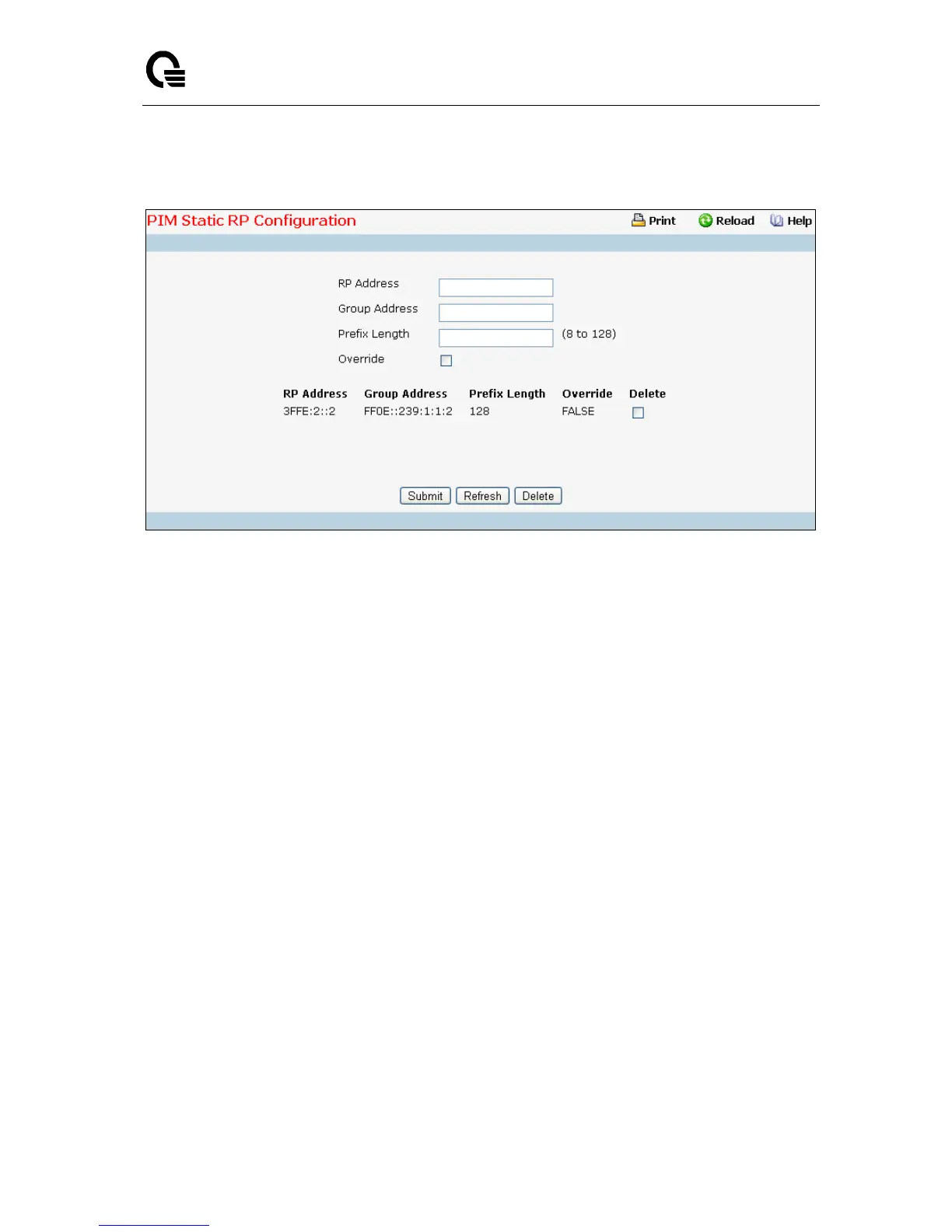

11.9.2.6 Configuring PIM Static RP Configuration Page
Configurable Data
RP Address - IP Address of the RP for the group range created or deleted.
Group Address - Group Address for which the static RP is to be created or deleted.
Prefix Length - Prefix Length of the Group Address for which the Static RP is to be created or
deleted.
Override - The check option to configure the static RP to override the dynamic (candidate) RPs
learnt for same group ranges.
Delete - Check box to delete the particular entry from the table.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Refresh - Refresh the data on the screen with the present state of the data in the switch.
Delete - Attempts to remove the specified static RP IP Address for the PIM-SM router. Configuration
changes take effect immediately. These changes will not be retained across a power cycle unless a
save is performed.
