LB9 User’s Guide 1497/1523

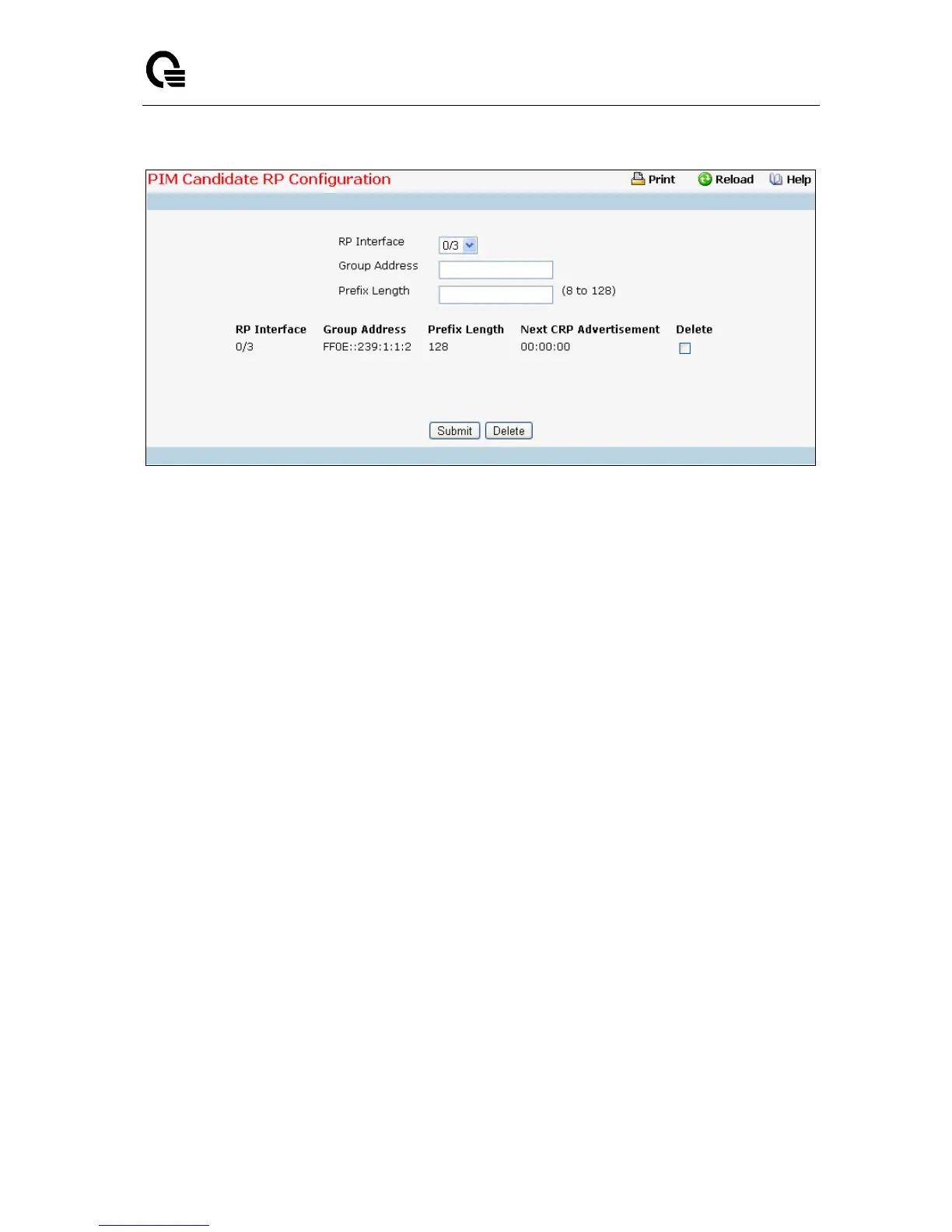

11.9.2.7 Configuring PIM Candidate RP Configuration Page
Selection Criteria
RP Interface - Select the interface for which the Candidate RP has to be configured.
Configurable Data
Group Address - The group address transmitted in Candidate-RP-Advertisements.
Prefix Length - The group address mask transmitted in Candidate-RP-Advertisements.
Delete - Check box to delete the particular entry from the table.
Command Buttons
Submit - Update the switch with the values on the screen. If you want the switch to retain the new
values across a power cycle you must perform a save.
Delete - Attempts to remove the specified Candidate RP Address for the PIM-SM router.
Configuration changes take effect immediately. These changes will not be retained across a power
cycle unless a save is performed.
