Spectrum Measurements
R&S
®
ESR
230User Manual 1175.7068.02 ─ 12
Results are provided for the TX channel and the number of defined adjacent channels
above and below the TX channel. If more than one TX channel is defined, the carrier
channel to which the relative adjacent-channel power values should be referenced
must be defined.

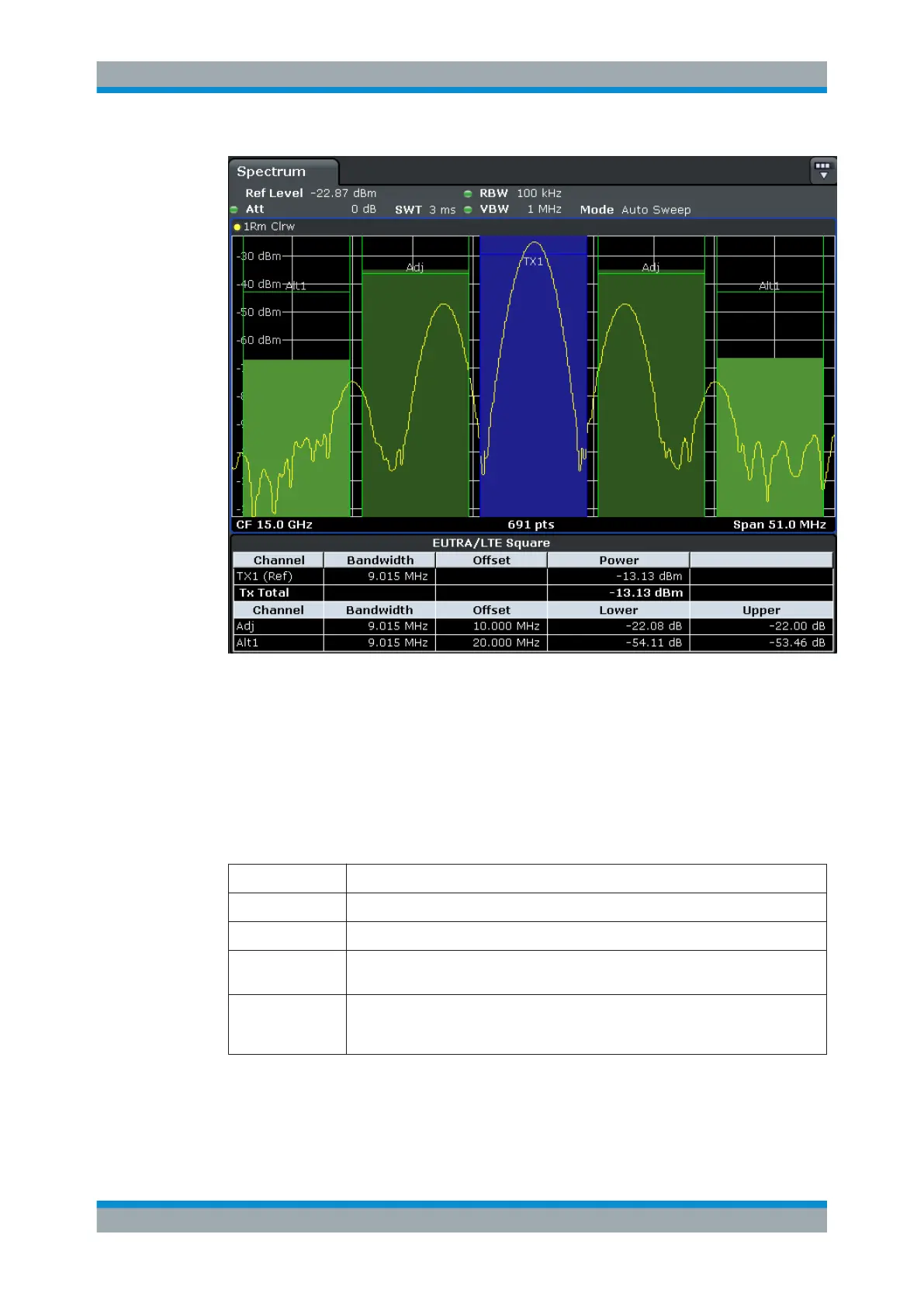

The measured power values for the TX and adjacent channels are also output as a
table in the second screen. Which powers are measured depends on the number of
configured channels, see "# of Adj Chan" on page 237.
For each channel, the following values are displayed:
Label Description
Channel Channel name as specified in the "Channel Settings" (see "Names" on page 240).
Bandwidth Configured channel bandwidth (see "Bandwidth" on page 238)
Offset Offset of the channel to the TX channel (Configured channel spacing, see "Spacing"
on page 239)
Power
(Lower/Upper)
The measured power values for the TX and lower and upper adjacent channels. The
powers of the transmission channels are output in dBm or dBm/Hz, or in dBc, relative
to the specified reference TX channel.
