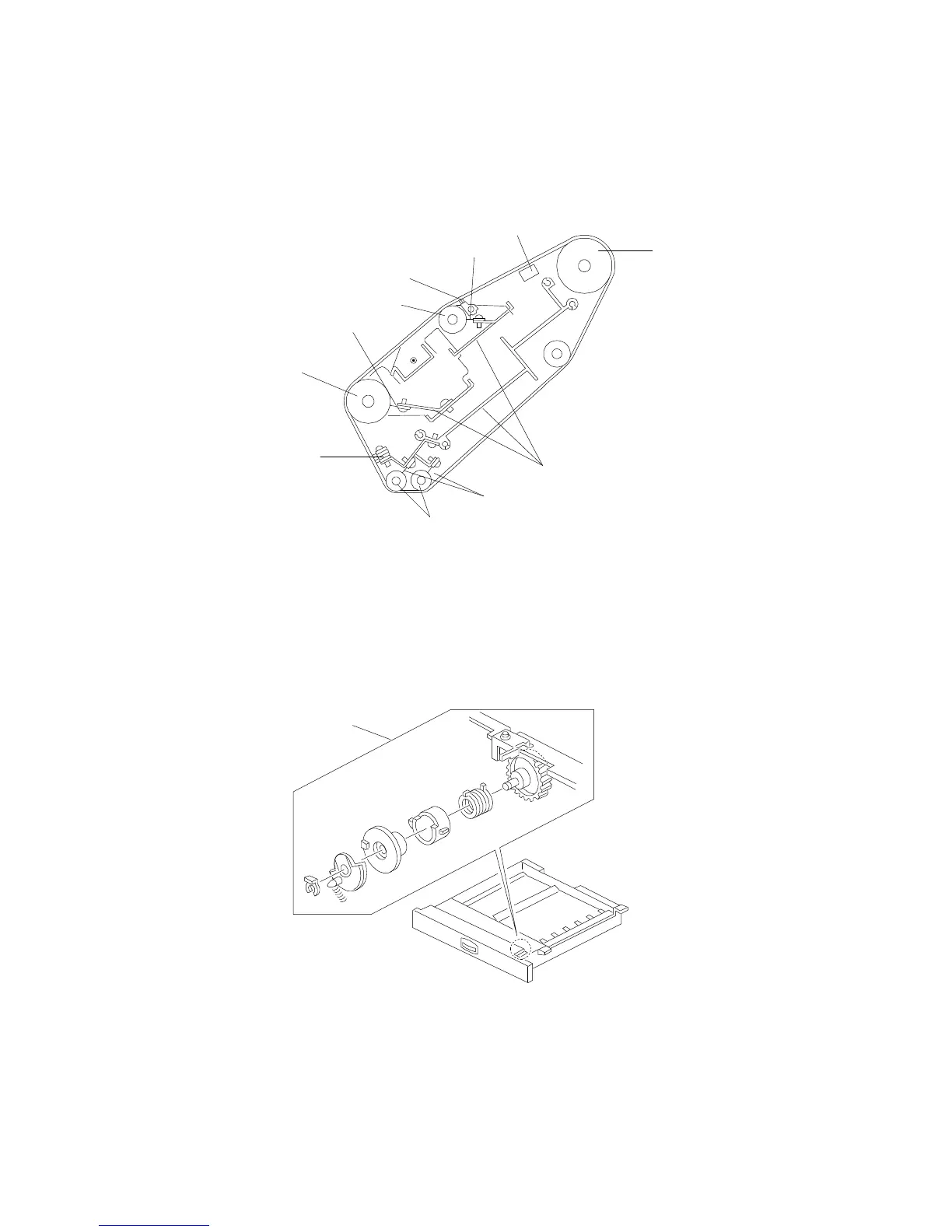

NOTE 1. When replacing the belt, clean each roller, the stays, and the belt
H.P. sensor with alcohol. Also, clean the grounding brushes and
the belt mark brush with a blower brush.
NOTE 2. Duplex Tray: Spring Clutch
Do the following every 200K.
Clean the clutch assembly [A]. Then lubricate the clutch spring
with Mobil Temp 78.
Belt Drive Roller
Grounding Brush
Cleaning Support Roller
Grounding Brush
Paper Transfer Support Rollers
Grounding Brushes
Stays
Transfer Belt Tension Roller
Belt Mark Brush
Grounding Brush
Belt H.P. Sensor
[A]
REGULAR PM TABLE
A166/A187/A189 4-42 SM
