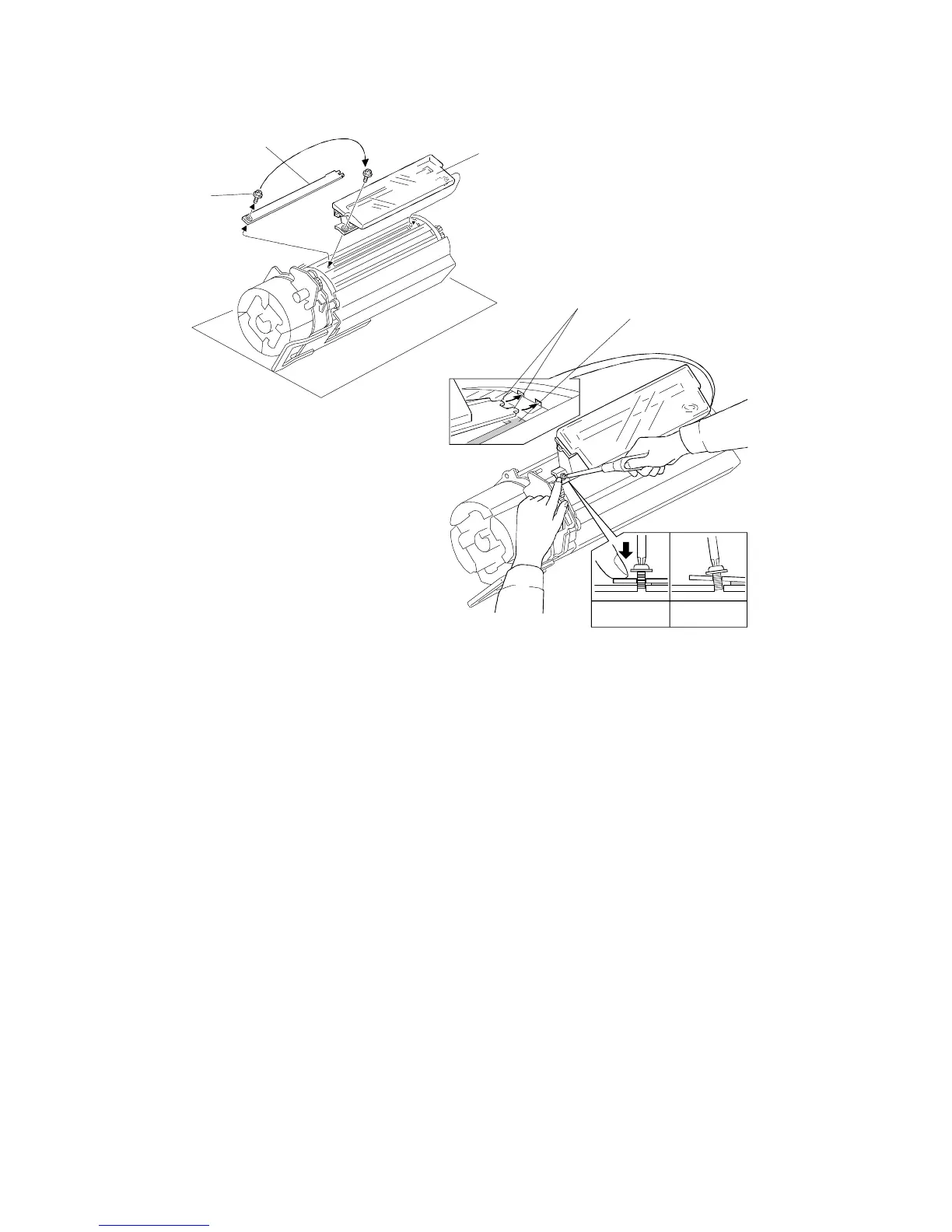

11. Remove the developer cover [A].
12. Attach the developer collection bottle/supply funnel ass’y [B] to the
development unit using the screw [C] (M4 x 6).
NOTE: 1. Before tightening the screw [C], ensure the two tabs [D] are
completely inserted into the slots and the screw holes are
aligned correctly.
2. Be sure to use the correct screw [C] (M4 x 6) to attach the
developer supply funnel. If a screw longer than screw [C] is
used, the development paddle will be damaged by the longer
screw.
3. When installing the developer supply funnel, take care not to
misalign the sponge [E] or developer may spill out.
4. Hold the developer supply funnel in position when tightening
the screw. This is to prevent the screw holes from misaligning.
5. Never overtighten the screw [C]. If the screw is overtightened,
the development unit’s screw hole (made of aluminum) may
be damaged and the entire development unit may need to
be replaced.
[A]
[B]
[C]
OK
NG
[D]
[E]
DEVELOPMENT UNIT
A166/A187/A189 5-40 SM
To Next Page
