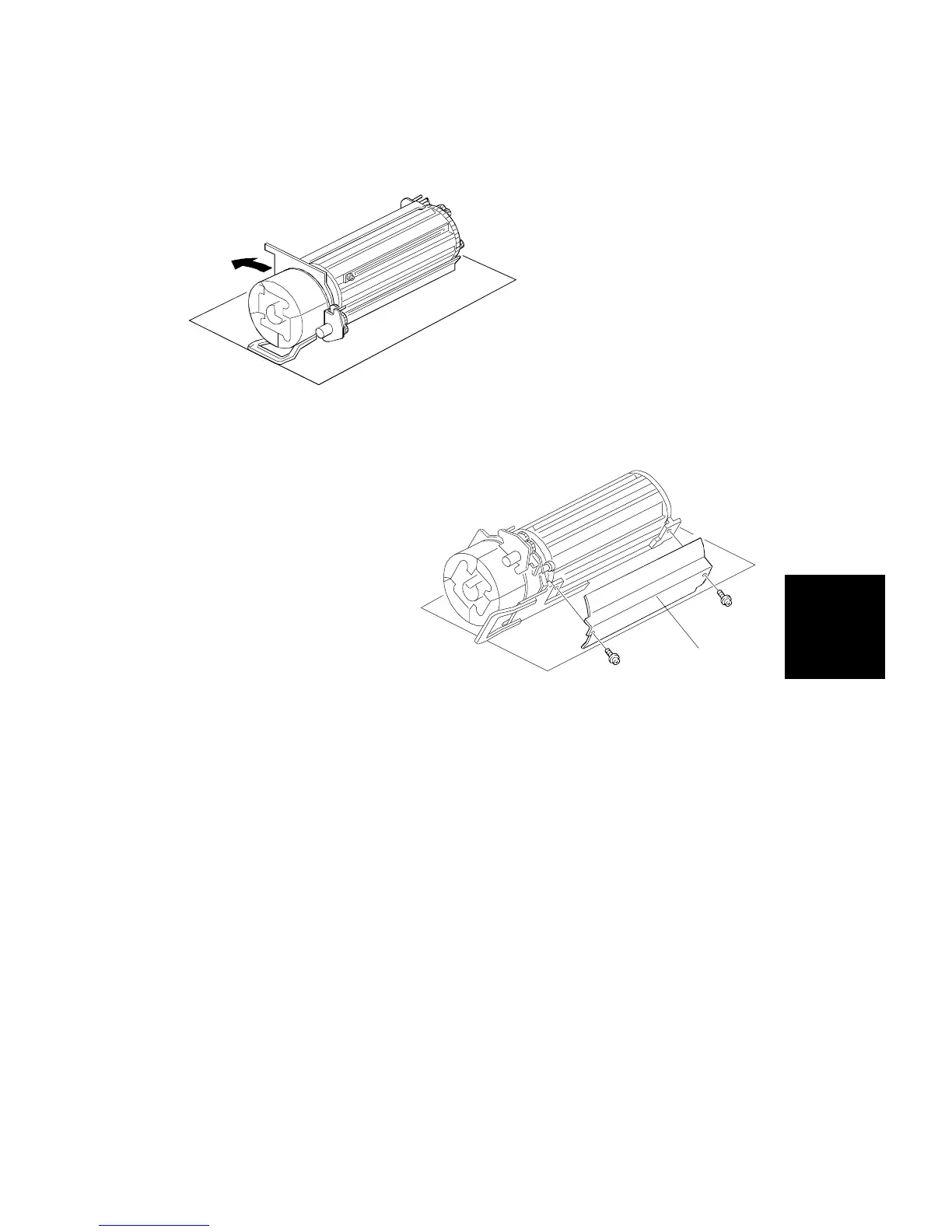

8. Place the development unit on a clean sheet of paper as shown above
(development unit placement position)
NOTE: Be sure to use a clean sheet of paper or floor mat when placing
the development unit on the floor. This prevents the floor from
getting dirty.
9. Rotate the development unit into the developer installation position as
shown.
10. Remove the toner saucer [A] (2 screws).
[A]
Developer installation position
Development unit placement position
