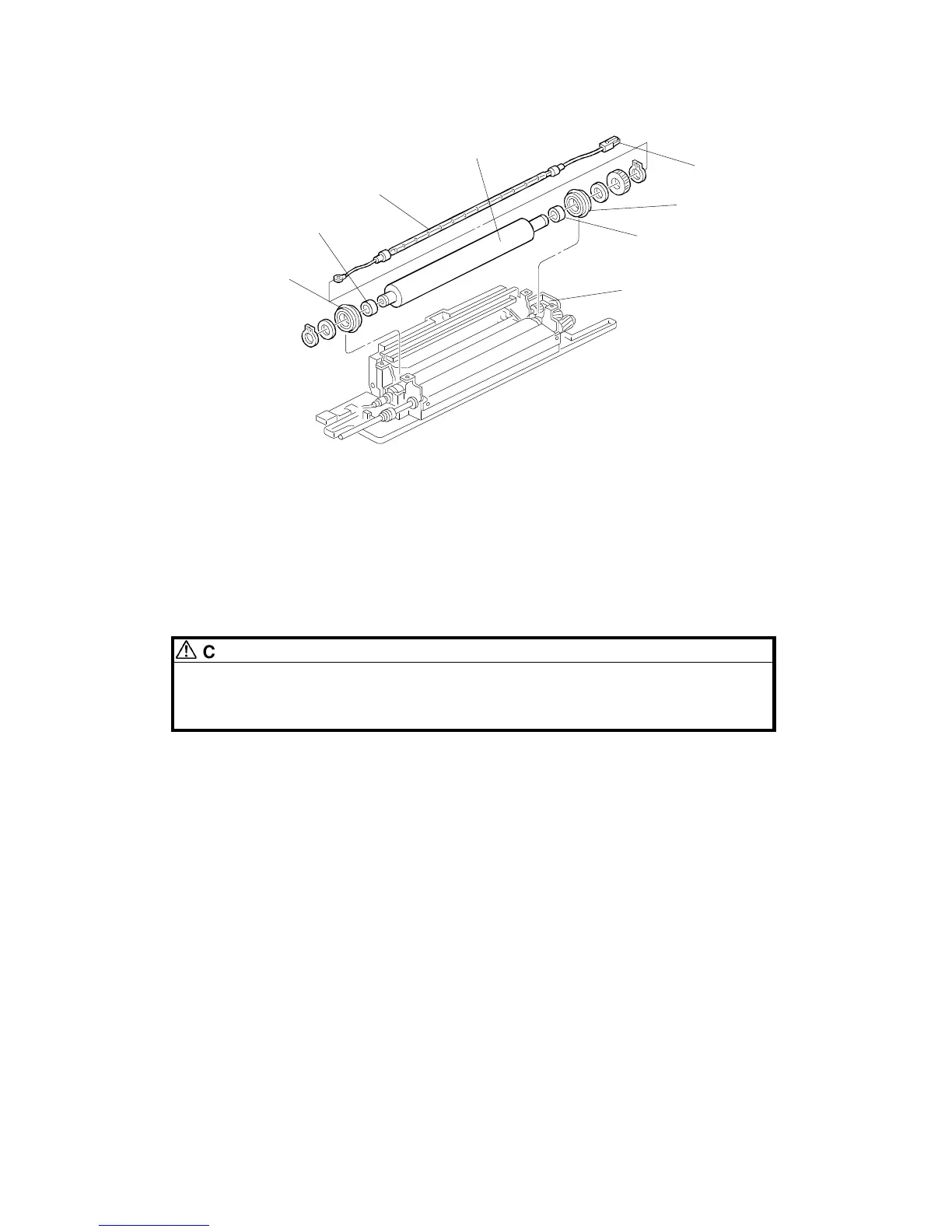

17. Disconnect the fusing lamp connector [A] from the rear lamp holder [B]
and remove the fusing lamp [C] from the rear.
18. Replace the hot roller [D] and the hot roller shaft bearings [E] (2 C-rings,
1 gear, 2 spacers, and 2 bushings).
•
Apply grease to the inner and outer surfaces of the bushings every
40K scans.
CAUTION
Be sure to apply the grease to the bushings [F] only after they have
cooled. The grease vaporizes when heated. The resulting gas is harmful
if inhaled.
[C]
[D]
[E]
[F]
[B]
[A]
[F]
[E]
PAPER TRANSPORT AND FUSING
A166/A187/A189 5-78 SM
