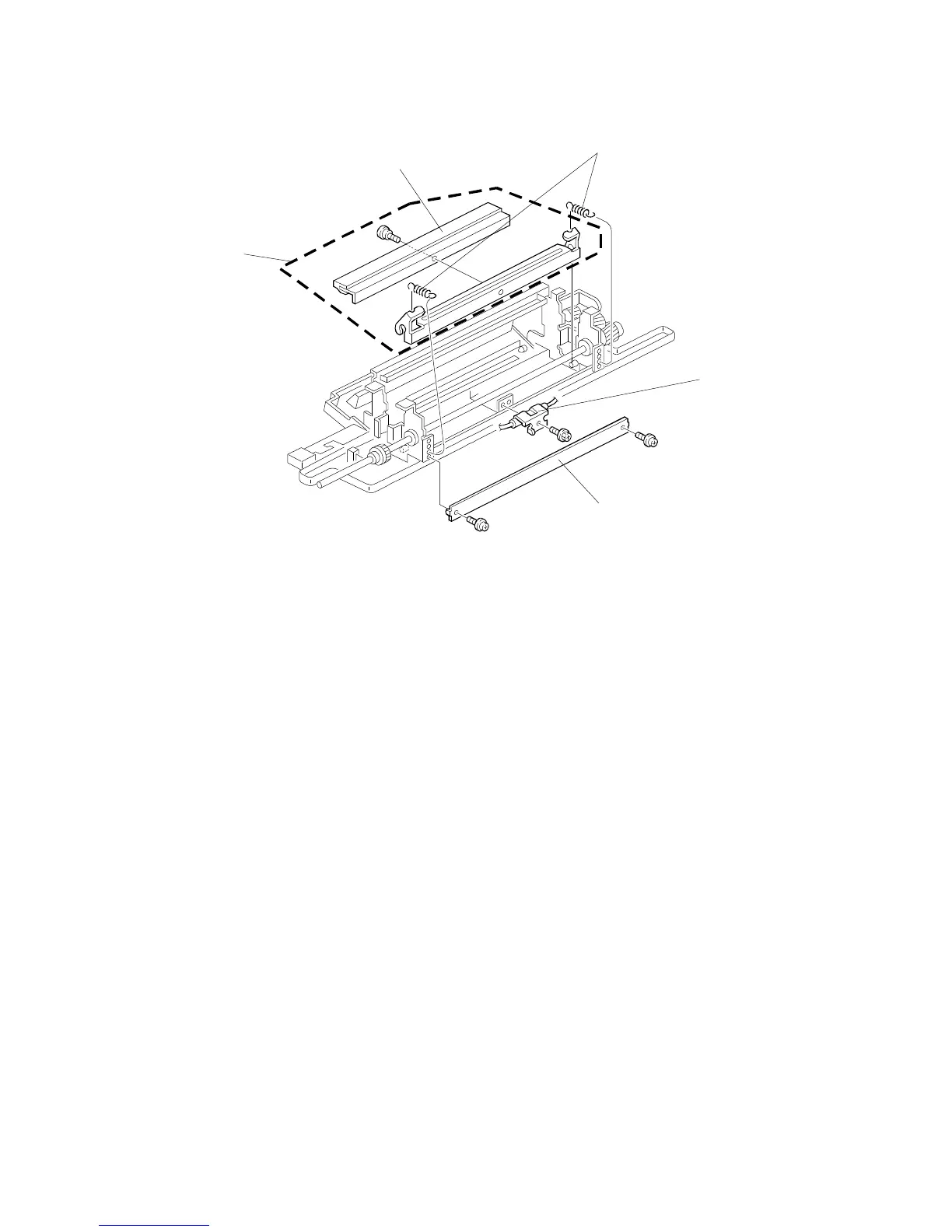

22. Remove the lower plate [A] (2 screws).
23. Remove the pressure roller thermofuse [B] (1 screw).
24. Remove the two pressure blade springs [C].
25. Remove the pressure roller cleaning blade assembly [D].
26. Remove the pressure roller cleaning blade [E] (1 shoulder screw).
[E]
[C]
[B]
[A]
[D]
