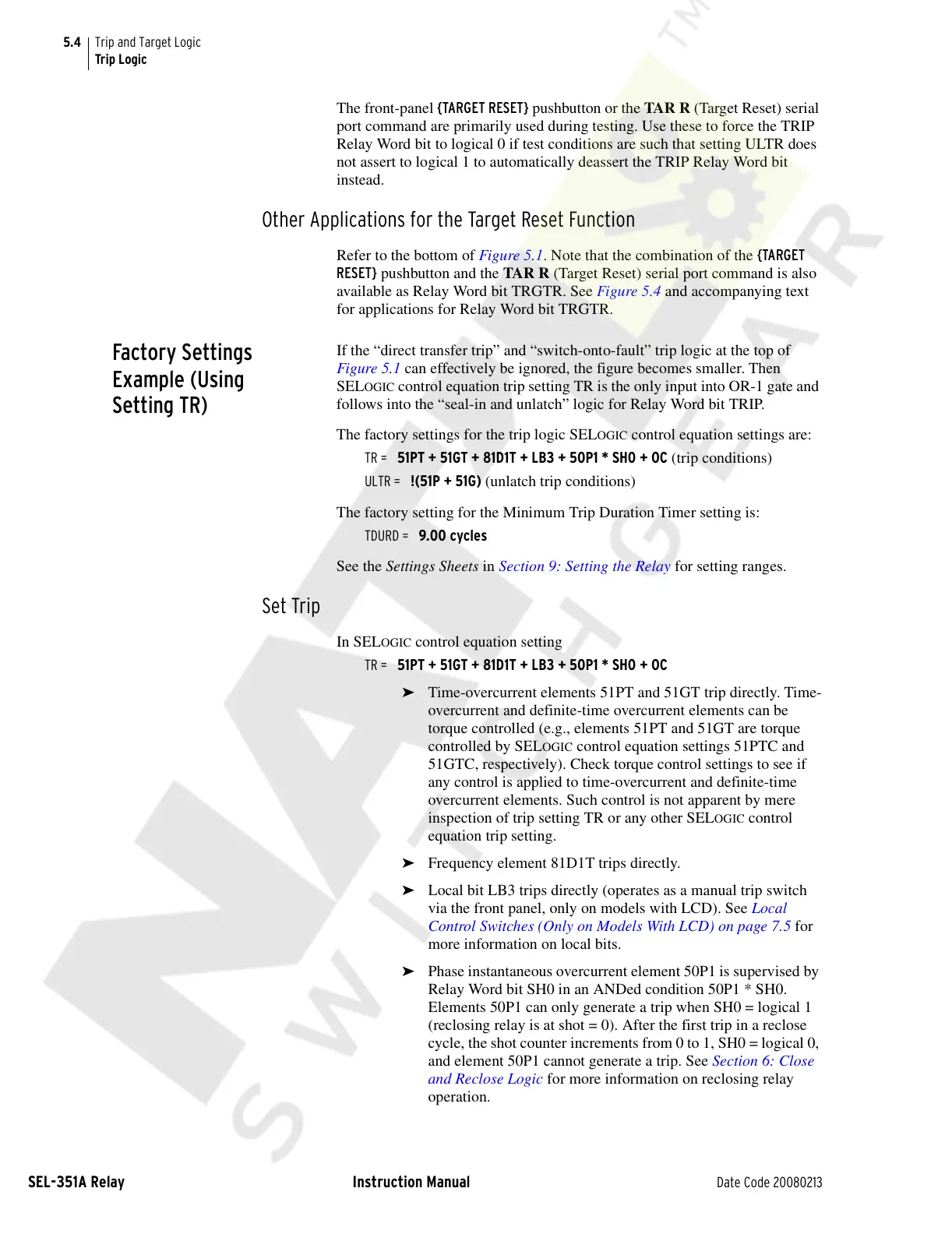

5.4
SEL-351A Relay Instruction Manual Date Code 20080213
Trip and Target Logic
Trip Logic
The front-panel {TARGET RESET} pushbutton or the TAR R (Target Reset) serial
port command are primarily used during testing. Use these to force the TRIP
Relay Word bit to logical 0 if test conditions are such that setting ULTR does
not assert to logical 1 to automatically deassert the TRIP Relay Word bit
instead.
Other Applications for the Target Reset Function
Refer to the bottom of Figure 5.1. Note that the combination of the {TARGET
RESET} pushbutton and the TAR R (Target Reset) serial port command is also
available as Relay Word bit TRGTR. See Figure 5.4 and accompanying text
for applications for Relay Word bit TRGTR.
Factory Settings
Example (Using
Setting TR)
If the “direct transfer trip” and “switch-onto-fault” trip logic at the top of
Figure 5.1 can effectively be ignored, the figure becomes smaller. Then
SEL
OGIC control equation trip setting TR is the only input into OR-1 gate and
follows into the “seal-in and unlatch” logic for Relay Word bit TRIP.
The factory settings for the trip logic SEL
OGIC control equation settings are:
TR = 51PT + 51GT + 81D1T + LB3 + 50P1 * SH0 + OC (trip conditions)
ULTR = !(51P + 51G) (unlatch trip conditions)
The factory setting for the Minimum Trip Duration Timer setting is:
TDURD = 9.00 cycles
See the Settings Sheets in Section 9: Setting the Relay for setting ranges.
Set Trip
In SELOGIC control equation setting
TR = 51PT + 51GT + 81D1T + LB3 + 50P1 * SH0 + OC
➤ Time-overcurrent elements 51PT and 51GT trip directly. Time-
overcurrent and definite-time overcurrent elements can be
torque controlled (e.g., elements 51PT and 51GT are torque
controlled by SEL
OGIC control equation settings 51PTC and
51GTC, respectively). Check torque control settings to see if
any control is applied to time-overcurrent and definite-time
overcurrent elements. Such control is not apparent by mere
inspection of trip setting TR or any other SEL
OGIC control
equation trip setting.
➤ Frequency element 81D1T trips directly.
➤ Local bit LB3 trips directly (operates as a manual trip switch
via the front panel, only on models with LCD). See Local
Control Switches (Only on Models With LCD) on page 7.5 for
more information on local bits.
➤ Phase instantaneous overcurrent element 50P1 is supervised by
Relay Word bit SH0 in an ANDed condition 50P1 * SH0.
Elements 50P1 can only generate a trip when SH0 = logical 1
(reclosing relay is at shot = 0). After the first trip in a reclose
cycle, the shot counter increments from 0 to 1, SH0 = logical 0,
and element 50P1 cannot generate a trip. See Section 6: Close
and Reclose Logic for more information on reclosing relay
operation.
