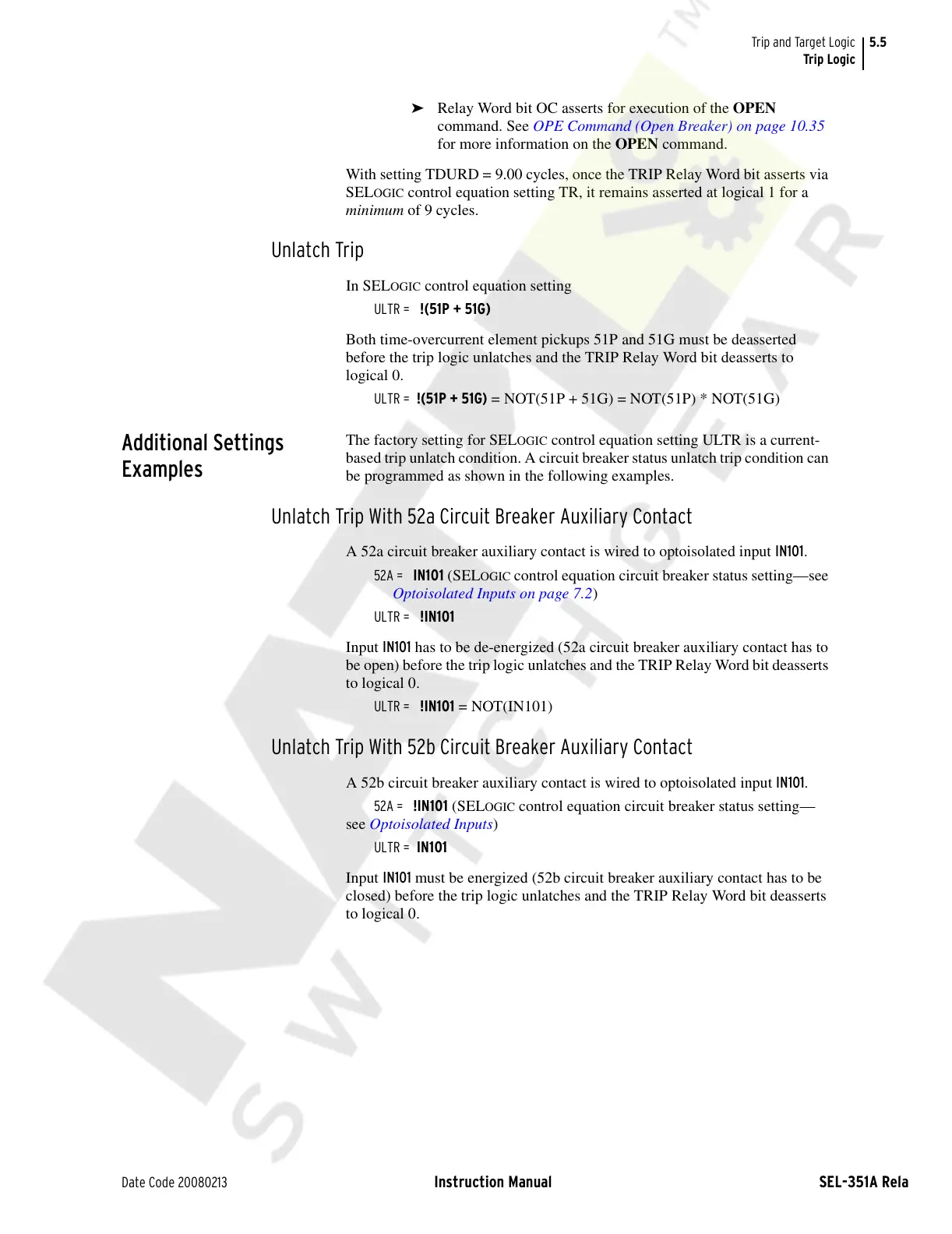

5.5
Date Code 20080213 Instruction Manual SEL-351A Relay
Trip and Target Logic
Trip Logic
➤ Relay Word bit OC asserts for execution of the OPEN
command. See OPE Command (Open Breaker) on page 10.35
for more information on the OPEN command.
With setting TDURD = 9.00 cycles, once the TRIP Relay Word bit asserts via
SEL
OGIC control equation setting TR, it remains asserted at logical 1 for a
minimum of 9 cycles.
Unlatch Trip
In SELOGIC control equation setting
ULTR = !(51P + 51G)
Both time-overcurrent element pickups 51P and 51G must be deasserted
before the trip logic unlatches and the TRIP Relay Word bit deasserts to
logical 0.
ULTR = !(51P + 51G) = NOT(51P + 51G) = NOT(51P) * NOT(51G)
Additional Settings
Examples
The factory setting for SELOGIC control equation setting ULTR is a current-
based trip unlatch condition. A circuit breaker status unlatch trip condition can
be programmed as shown in the following examples.
Unlatch Trip With 52a Circuit Breaker Auxiliary Contact
A 52a circuit breaker auxiliary contact is wired to optoisolated input IN101.
52A = IN101 (SELOGIC control equation circuit breaker status setting—see
Optoisolated Inputs on page 7.2)
ULTR = !IN101
Input IN101 has to be de-energized (52a circuit breaker auxiliary contact has to
be open) before the trip logic unlatches and the TRIP Relay Word bit deasserts
to logical 0.
ULTR = !IN101 = NOT(IN101)
Unlatch Trip With 52b Circuit Breaker Auxiliary Contact
A 52b circuit breaker auxiliary contact is wired to optoisolated input IN101.
52A = !IN101 (SELOGIC control equation circuit breaker status setting—
see Optoisolated Inputs)
ULTR = IN101
Input IN101 must be energized (52b circuit breaker auxiliary contact has to be
closed) before the trip logic unlatches and the TRIP Relay Word bit deasserts
to logical 0.
