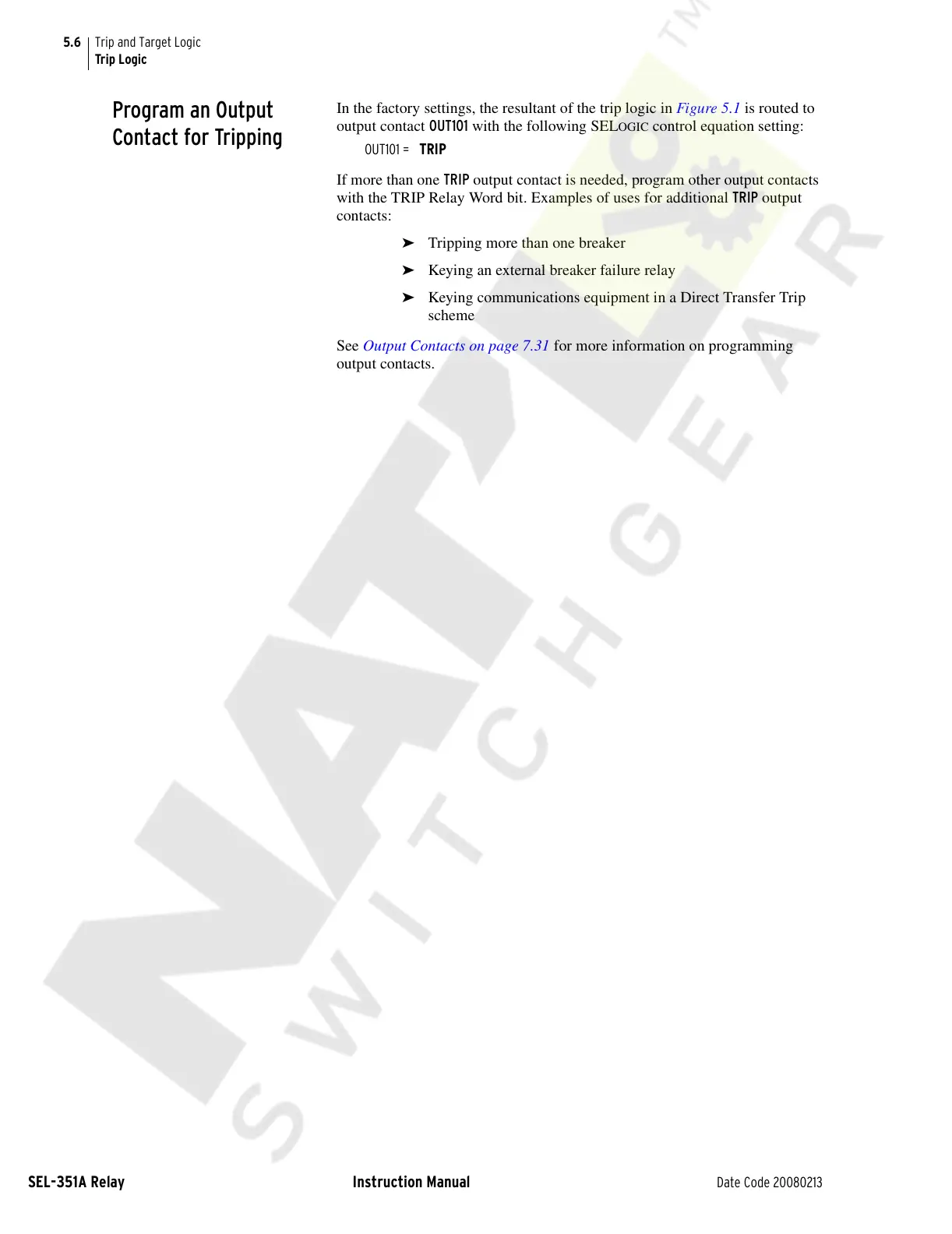

5.6

SEL-351A Relay Instruction Manual Date Code 20080213

Trip and Target Logic

Trip Logic

Program an Output

Contact for Tripping

In the factory settings, the resultant of the trip logic in Figure 5.1 is routed to

output contact OUT101 with the following SEL

OGIC control equation setting:

OUT101 = TRIP

If more than one TRIP output contact is needed, program other output contacts

with the TRIP Relay Word bit. Examples of uses for additional TRIP output

contacts:

➤ Tripping more than one breaker

➤ Keying an external breaker failure relay

➤ Keying communications equipment in a Direct Transfer Trip

scheme

See Output Contacts on page 7.31 for more information on programming

output contacts.
