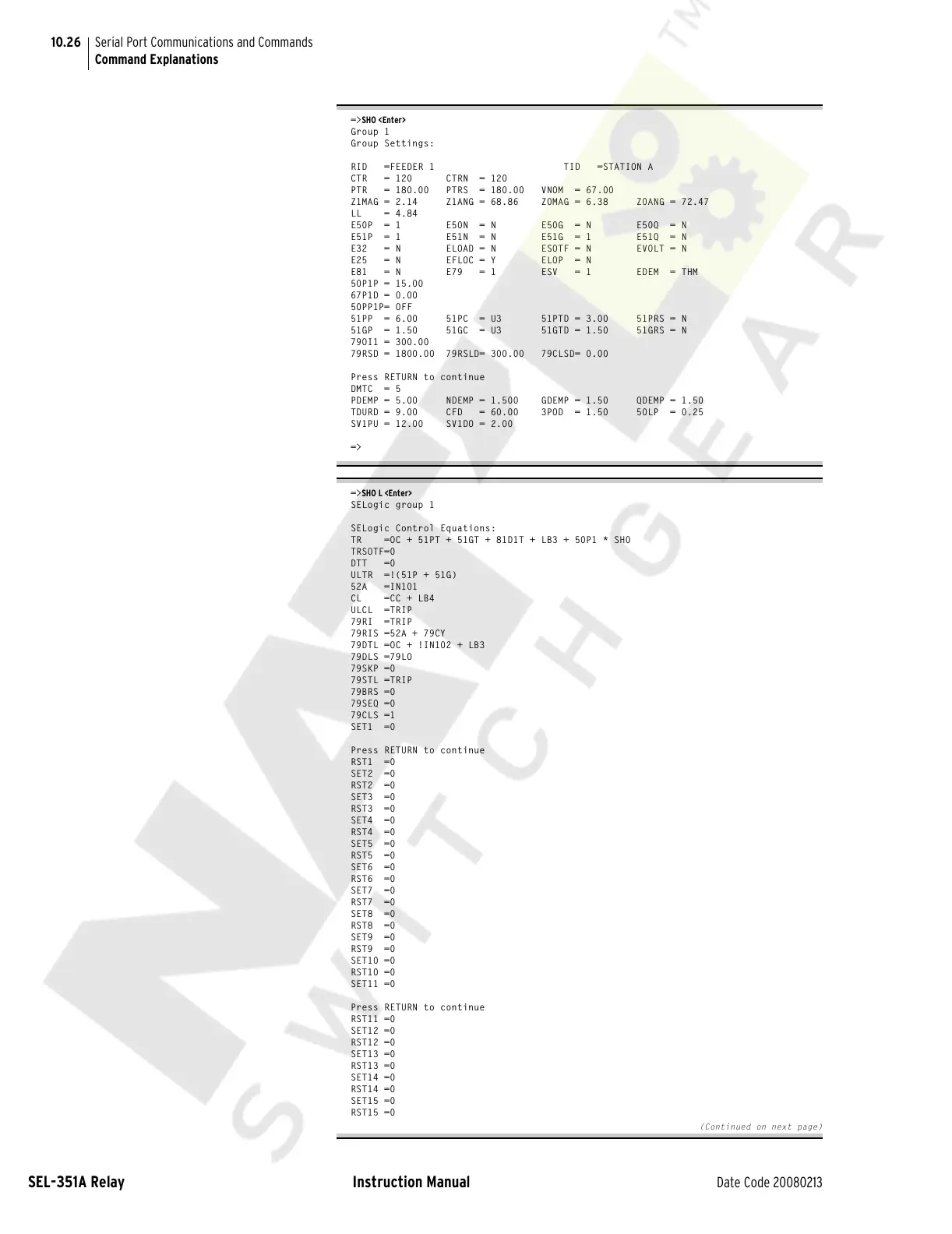

Serial Port Communications and Commands
Command Explanations
=>SHO <Enter>
Group 1
Group Settings:
RID =FEEDER 1 TID =STATION A
CTR = 120 CTRN = 120
PTR = 180.00 PTRS = 180.00 VNOM = 67.00
Z1MAG = 2.14 Z1ANG = 68.86 Z0MAG = 6.38 Z0ANG = 72.47
LL = 4.84
E50P = 1 E50N = N E50G = N E50Q = N
E51P = 1 E51N = N E51G = 1 E51Q = N
E32 = N ELOAD = N ESOTF = N EVOLT = N
E25 = N EFLOC = Y ELOP = N
E81 = N E79 = 1 ESV = 1 EDEM = THM
50P1P = 15.00
67P1D = 0.00
50PP1P= OFF
51PP = 6.00 51PC = U3 51PTD = 3.00 51PRS = N
51GP = 1.50 51GC = U3 51GTD = 1.50 51GRS = N
79OI1 = 300.00
79RSD = 1800.00 79RSLD= 300.00 79CLSD= 0.00
Press RETURN to continue
DMTC = 5
PDEMP = 5.00 NDEMP = 1.500 GDEMP = 1.50 QDEMP = 1.50
TDURD = 9.00 CFD = 60.00 3POD = 1.50 50LP = 0.25
SV1PU = 12.00 SV1DO = 2.00
=>
=>SHO L <Enter>
SELogic group 1
SELogic Control Equations:
TR =OC + 51PT + 51GT + 81D1T + LB3 + 50P1 * SH0
TRSOTF=0
DTT =0
ULTR =!(51P + 51G)
52A =IN101
CL =CC + LB4
ULCL =TRIP
79RI =TRIP
79RIS =52A + 79CY
79DTL =OC + !IN102 + LB3
79DLS =79LO
79SKP =0
79STL =TRIP
79BRS =0
79SEQ =0
79CLS =1
SET1 =0
Press RETURN to continue
RST1 =0
SET2 =0
RST2 =0
SET3 =0
RST3 =0
SET4 =0
RST4 =0
SET5 =0
RST5 =0
SET6 =0
RST6 =0
SET7 =0
RST7 =0
SET8 =0
RST8 =0
SET9 =0
RST9 =0
SET10 =0
RST10 =0
SET11 =0
Press RETURN to continue
RST11 =0
SET12 =0
RST12 =0
SET13 =0
RST13 =0
SET14 =0
RST14 =0
SET15 =0
(Continued on next page)
RST15 =0
