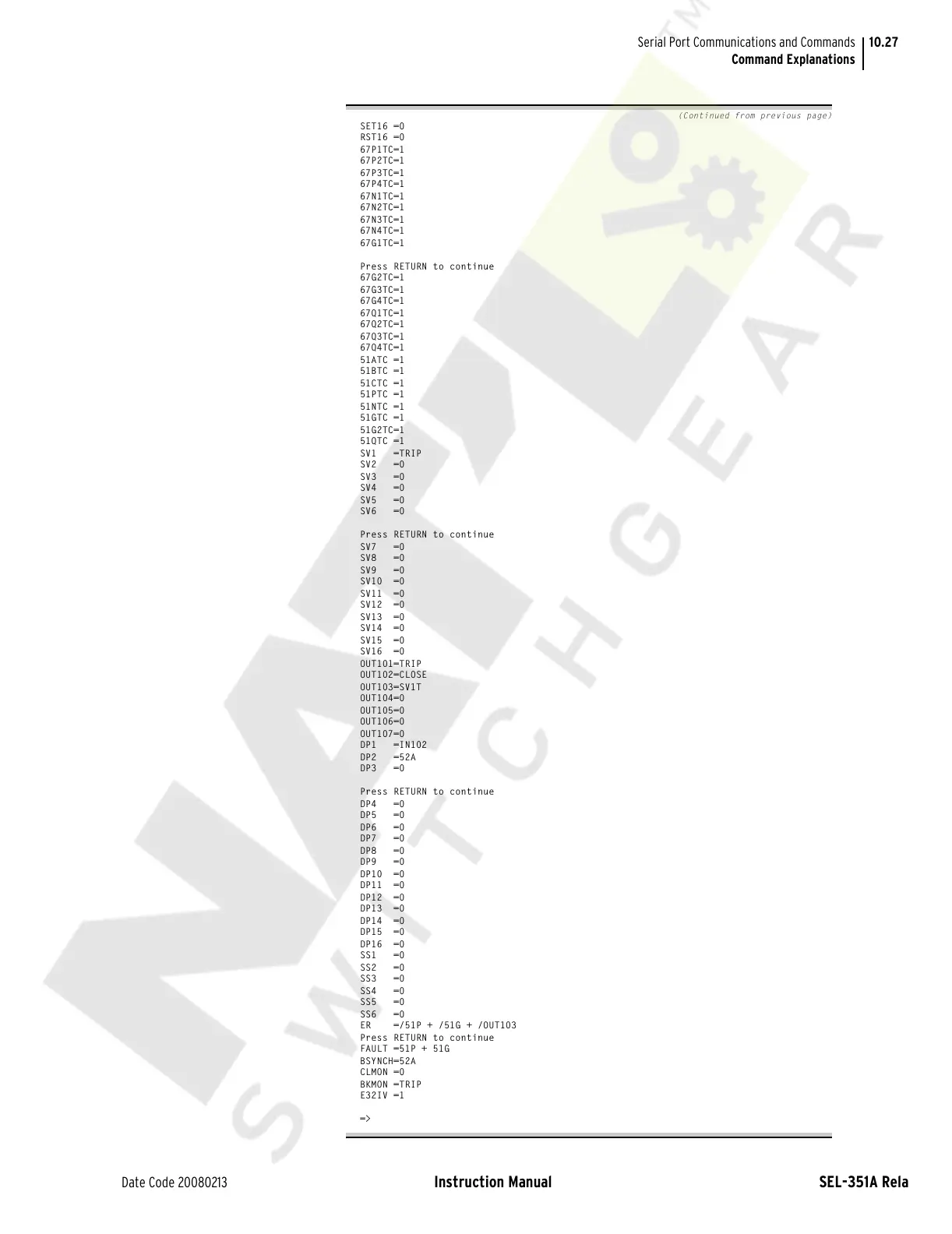

10.27

Date Code 20080213 Instruction Manual SEL-351A Relay

Serial Port Communications and Commands

Command Explanations

(Continued from previous page)

SET16 =0

RST16 =0

67P1TC=1

67P2TC=1

67P3TC=1

67P4TC=1

67N1TC=1

67N2TC=1

67N3TC=1

67N4TC=1

67G1TC=1

Press RETURN to continue

67G2TC=1

67G3TC=1

67G4TC=1

67Q1TC=1

67Q2TC=1

67Q3TC=1

67Q4TC=1

51ATC =1

51BTC =1

51CTC =1

51PTC =1

51NTC =1

51GTC =1

51G2TC=1

51QTC =1

SV1 =TRIP

SV2 =0

SV3 =0

SV4 =0

SV5 =0

SV6 =0

Press RETURN to continue

SV7 =0

SV8 =0

SV9 =0

SV10 =0

SV11 =0

SV12 =0

SV13 =0

SV14 =0

SV15 =0

SV16 =0

OUT101=TRIP

OUT102=CLOSE

OUT103=SV1T

OUT104=0

OUT105=0

OUT106=0

OUT107=0

DP1 =IN102

DP2 =52A

DP3 =0

Press RETURN to continue

DP4 =0

DP5 =0

DP6 =0

DP7 =0

DP8 =0

DP9 =0

DP10 =0

DP11 =0

DP12 =0

DP13 =0

DP14 =0

DP15 =0

DP16 =0

SS1 =0

SS2 =0

SS3 =0

SS4 =0

SS5 =0

SS6 =0

ER =/51P + /51G + /OUT103

Press RETURN to continue

FAULT =51P + 51G

BSYNCH=52A

CLMON =0

BKMON =TRIP

E32IV =1
