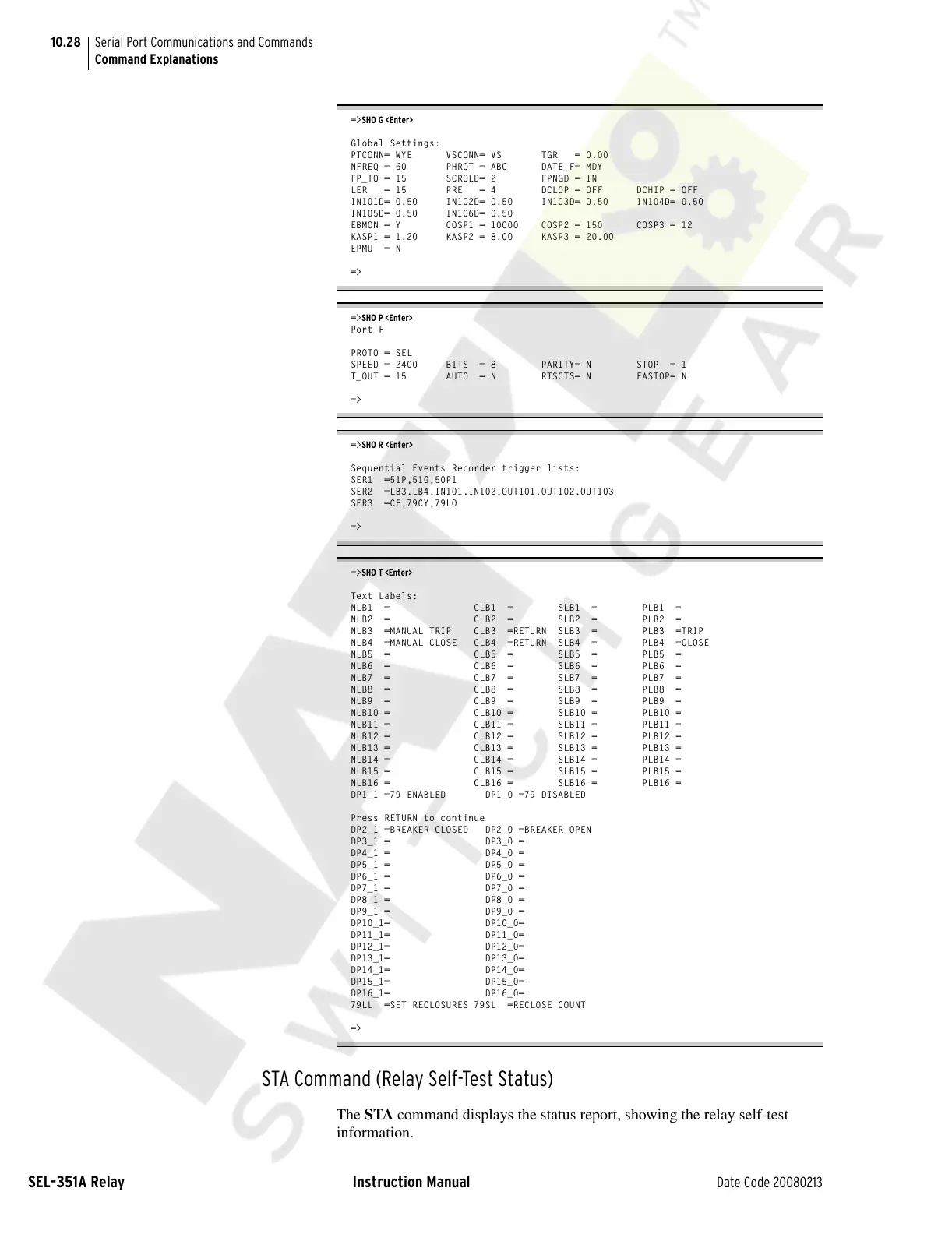

10.28
SEL-351A Relay Instruction Manual Date Code 20080213
Serial Port Communications and Commands
Command Explanations
=>SHO G <Enter>
Global Settings:
PTCONN= WYE VSCONN= VS TGR = 0.00
NFREQ = 60 PHROT = ABC DATE_F= MDY
FP_TO = 15 SCROLD= 2 FPNGD = IN
LER = 15 PRE = 4 DCLOP = OFF DCHIP = OFF
IN101D= 0.50 IN102D= 0.50 IN103D= 0.50 IN104D= 0.50
IN105D= 0.50 IN106D= 0.50
EBMON = Y COSP1 = 10000 COSP2 = 150 COSP3 = 12
KASP1 = 1.20 KASP2 = 8.00 KASP3 = 20.00
EPMU = N
=>
=>SHO P <Enter>
Port F
PROTO = SEL
SPEED = 2400 BITS = 8 PARITY= N STOP = 1
T_OUT = 15 AUTO = N RTSCTS= N FASTOP= N
=>
=>SHO R <Enter>
Sequential Events Recorder trigger lists:
SER1 =51P,51G,50P1
SER2 =LB3,LB4,IN101,IN102,OUT101,OUT102,OUT103
SER3 =CF,79CY,79LO
=>
=>SHO T <Enter>
Text Labels:
NLB1 = CLB1 = SLB1 = PLB1 =
NLB2 = CLB2 = SLB2 = PLB2 =
NLB3 =MANUAL TRIP CLB3 =RETURN SLB3 = PLB3 =TRIP
NLB4 =MANUAL CLOSE CLB4 =RETURN SLB4 = PLB4 =CLOSE
NLB5 = CLB5 = SLB5 = PLB5 =
NLB6 = CLB6 = SLB6 = PLB6 =
NLB7 = CLB7 = SLB7 = PLB7 =
NLB8 = CLB8 = SLB8 = PLB8 =
NLB9 = CLB9 = SLB9 = PLB9 =
NLB10 = CLB10 = SLB10 = PLB10 =
NLB11 = CLB11 = SLB11 = PLB11 =
NLB12 = CLB12 = SLB12 = PLB12 =
NLB13 = CLB13 = SLB13 = PLB13 =
NLB14 = CLB14 = SLB14 = PLB14 =
NLB15 = CLB15 = SLB15 = PLB15 =
NLB16 = CLB16 = SLB16 = PLB16 =
DP1_1 =79 ENABLED DP1_0 =79 DISABLED
Press RETURN to continue
DP2_1 =BREAKER CLOSED DP2_0 =BREAKER OPEN
DP3_1 = DP3_0 =
DP4_1 = DP4_0 =
DP5_1 = DP5_0 =
DP6_1 = DP6_0 =
DP7_1 = DP7_0 =
DP8_1 = DP8_0 =
DP9_1 = DP9_0 =
DP10_1= DP10_0=
DP11_1= DP11_0=
DP12_1= DP12_0=
DP13_1= DP13_0=
DP14_1= DP14_0=
DP15_1= DP15_0=
DP16_1= DP16_0=
79LL =SET RECLOSURES 79SL =RECLOSE COUNT
=>
STA Command (Relay Self-Test Status)
The STA command displays the status report, showing the relay self-test
information.
