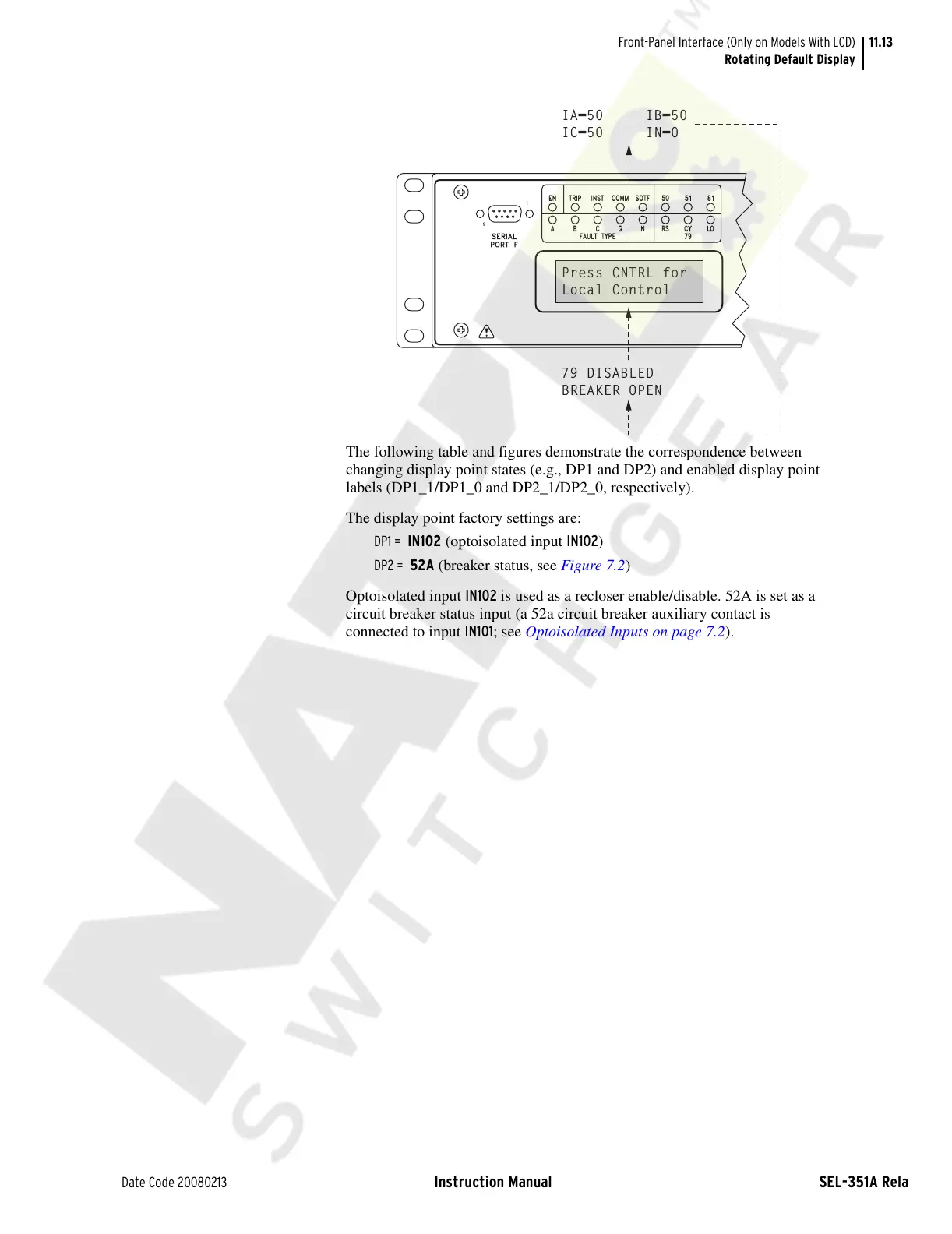

Date Code 20080213 Instruction Manual SEL-351A Relay

Front-Panel Interface (Only on Models With LCD)

Rotating Default Display

The following table and figures demonstrate the correspondence between

changing display point states (e.g., DP1 and DP2) and enabled display point

labels (DP1_1/DP1_0 and DP2_1/DP2_0, respectively).

The display point factory settings are:

DP1 = IN102 (optoisolated input IN102)

DP2 = 52A (breaker status, see Figure 7.2)

Optoisolated input IN102 is used as a recloser enable/disable. 52A is set as a

circuit breaker status input (a 52a circuit breaker auxiliary contact is

connected to input IN101; see Optoisolated Inputs on page 7.2).

INST

FAULT TYPE

SERIAL

PORT F

TRIP

COMM

SOTF

Press CNTRL for

Local Control

79 DISABLED

BREAKER OPEN

IA=50 IB=50

IC=50 IN=0
