SEL-351A Relay Instruction Manual Date Code 20080213

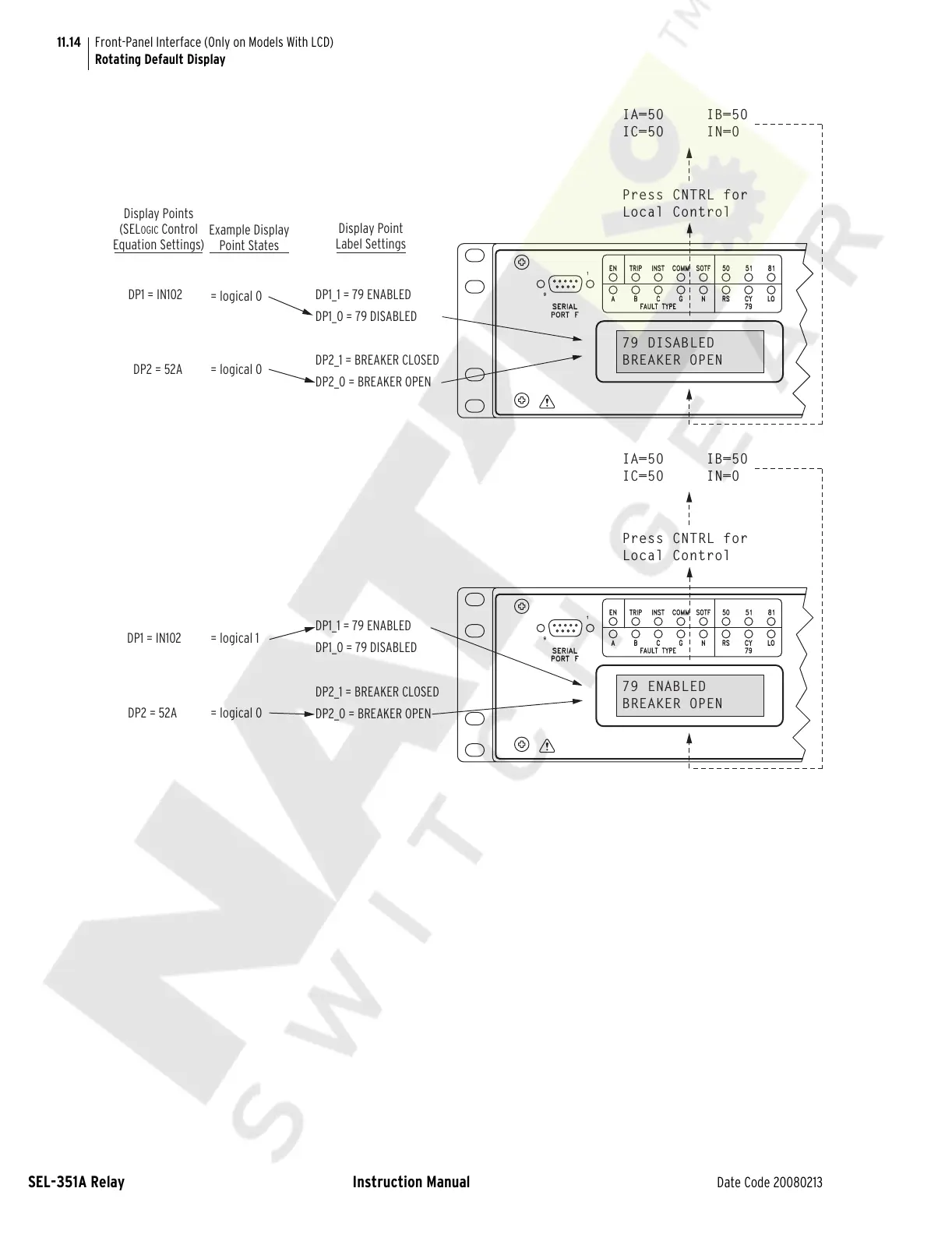

Front-Panel Interface (Only on Models With LCD)

Rotating Default Display

INST

FAULT TYPE

SERIAL

PORT F

TRIP

COMM

SOTF

Press CNTRL for

Local Control

79 DISABLED

BREAKER OPEN

IA=50 IB=50

IC=50 IN=0

INST

FAULT TYPE

SERIAL

PORT F

TRIP

COMM

SOTF

Press CNTRL for

Local Control

79 ENABLED

BREAKER OPEN

IA=50 IB=50

IC=50 IN=0

Display Points

(SEL

OGIC Control

Equation Settings)

Example Display

Point States

Display Point

Label Settings

DP1 = IN102

= logical 0

DP1_1 = 79 ENABLED

DP1_0 = 79 DISABLED

DP2_1 = BREAKER CLOSED

DP2_0 = BREAKER OPEN

DP2 = 52A = logical 0

DP1 = IN102 = logical 1

DP1_1 = 79 ENABLED

DP1_0 = 79 DISABLED

DP2_1 = BREAKER CLOSED

DP2_0 = BREAKER OPEN

DP2 = 52A

= logical 0
