Configuration, Fast Meter, and Fast Operate Commands
Message Definitions
00 # of digital banks
00 # of calculation blocks
0004 Analog channel offset
00B4 Time stamp offset
FFFF Digital offset
494100000000 Analog channel name (IA)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494200000000 Analog channel name (IB)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494300000000 Analog channel name (IC)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494E00000000 Analog channel name (IN)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
494700000000 Analog channel name (IG)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
334932000000 Analog channel name (3I2)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50412B000000 Analog channel name (PA+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50422B000000 Analog channel name (PB+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50432B000000 Analog channel name (PC+)
02 Analog channel type
FF Scale factor type

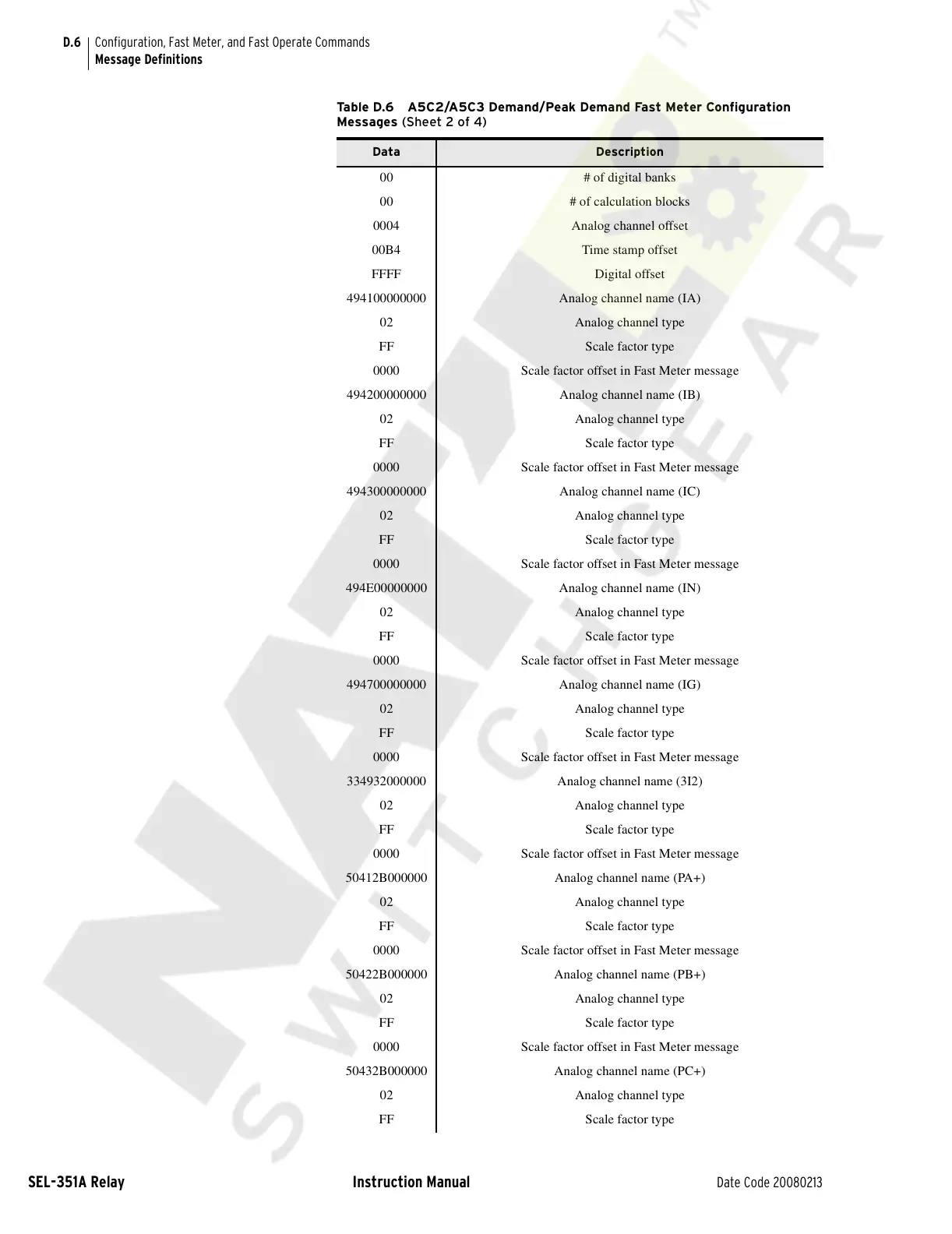

Table D.6 A5C2/A5C3 Demand/Peak Demand Fast Meter Configuration
Messages (Sheet 2 of 4)
