Configuration, Fast Meter, and Fast Operate Commands
Message Definitions
0000 Scale factor offset in Fast Meter message
50332B000000 Analog channel name (P3+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51412B000000 Analog channel name (QA+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51422B000000 Analog channel name (QB+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51432B000000 Analog channel name (QC+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51332B000000 Analog channel name (Q3+)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50412D000000 Analog channel name (PA–)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50422D000000 Analog channel name (PB–)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50432D000000 Analog channel name (PC–)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
50332D000000 Analog channel name (P3–)
02 Analog channel type
FF Scale factor type
0000 Scale factor offset in Fast Meter message
51412D000000 Analog channel name (QA–)
02 Analog channel type
FF Scale factor type

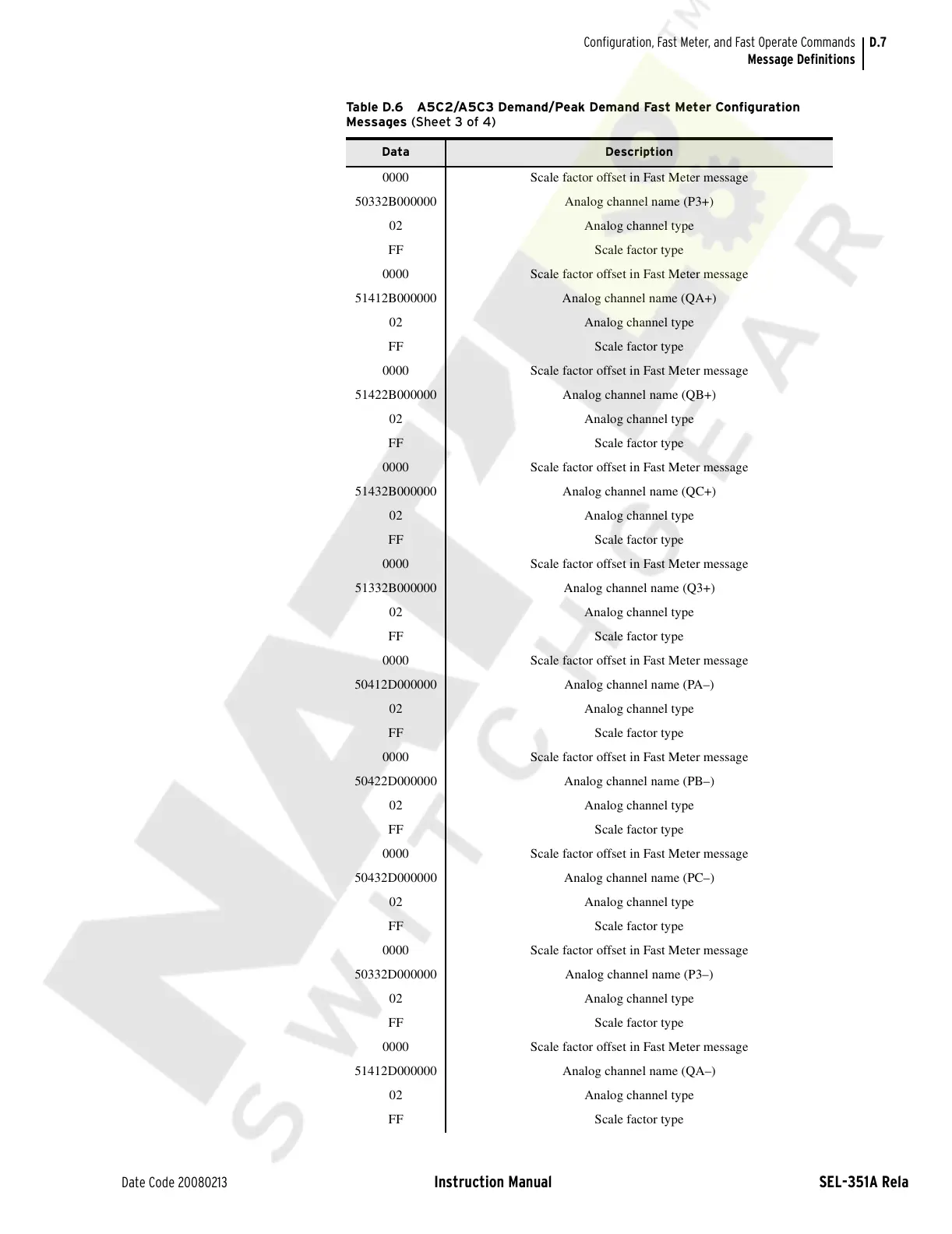

Table D.6 A5C2/A5C3 Demand/Peak Demand Fast Meter Configuration
Messages (Sheet 3 of 4)
