H.10
SEL-351A Relay Instruction Manual Date Code 20080213
Distributed Network Protocol
Object Table
21 5 32-Bit Frozen Counter with Time
of Freeze
21 6 16-Bit Frozen Counter with Time
of Freeze
21 7 32-Bit Frozen Delta Counter
with Time of Freeze
21 8 16-Bit Frozen Delta Counter
with Time of Freeze
21 9 32-Bit Frozen Counter without
Flag
21 10 16-Bit Frozen Counter without
Flag
21 11 32-Bit Frozen Delta Counter
without Flag
21 12 16-Bit Frozen Delta Counter
without Flag
22 0 Counter Change Event—All
Variations
16,7,8
22 1 32-Bit Counter Change Event
without Time
1 6,7,8 129 17,28
22 2
e
16-Bit Counter Change Event
without Time
1 6,7,8 129,130 17,28
22 3 32-Bit Delta Counter Change
Event without Time
22 4 16-Bit Delta Counter Change
Event without Time
22 5 32-Bit Counter Change Event
with Time
1 6,7,8 129 17,28
22 6 16-Bit Counter Change Event
with Time
1 6,7,8 129 17,28
22 7 32-Bit Delta Counter Change
Event with Time
22 8 16-Bit Delta Counter Change
Event with Time
23 0 Frozen Counter Event—All Vari-
ations
23 1 32-Bit Frozen Counter Event
without Time
23 2 16-Bit Frozen Counter Event
without Time
23 3 32-Bit Frozen Delta Counter
Event without Time
23 4 16-Bit Frozen Delta Counter
Event without Time
23 5 32-Bit Frozen Counter Event
with Time

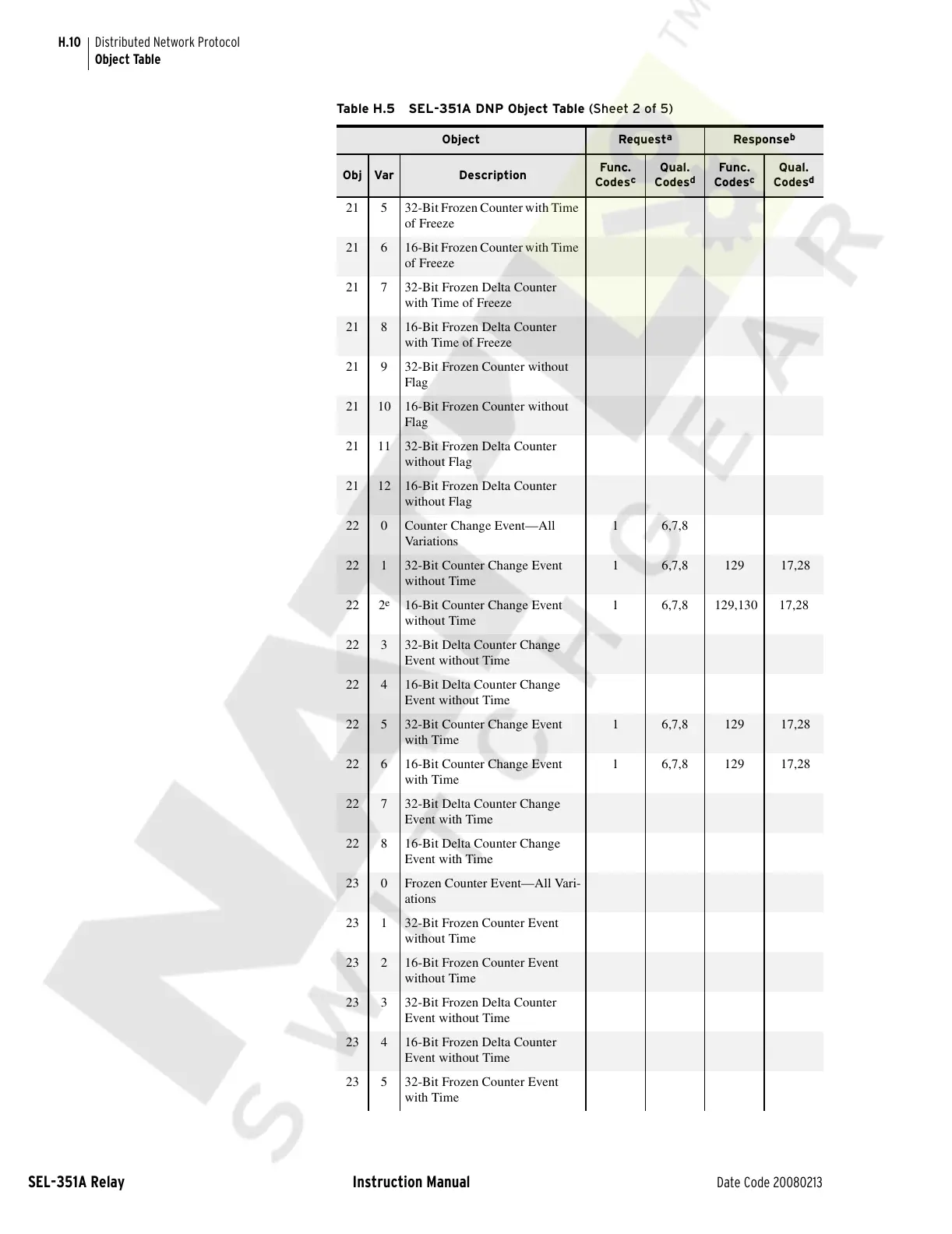

Table H.5 SEL-351A DNP Object Table (Sheet 2 of 5)
Object Request
a
Response
b
Obj Var Description
Func.
Codes
c
Qual.
Codes
d
Func.
Codes
c
Qual.
Codes
d
