Schweitzer Engineering Laboratories SEL-351A - Page 619

H.11
Date Code 20080213 Instruction Manual SEL-351A Relay
Distributed Network Protocol
Object Table
23 6 16-Bit Frozen Counter Event
with Time
23 7 32-Bit Frozen Delta Counter
Event with Time
23 8 16-Bit Frozen Delta Counter
Event with Time
30 0 Analog Input—All Variations 1 0,1,6,7,8
30 1 32-Bit Analog Input 1 0,1,6,7,8 129 0,1,7,8
30 2 16-Bit Analog Input 1 0,1,6,7,8 129 0,1,7,8
30 3 32-Bit Analog Input without
Flag
1 0,1,6,7,8 129 0,1,7,8
30 4
e
16-Bit Analog Input without
Flag
1 0,1,6,7,8 129 0,1,7,8
31 0 Frozen Analog Input—All Varia-
tions
31 1 32-Bit Frozen Analog Input
31 2 16-Bit Frozen Analog Input
31 3 32-Bit Frozen Analog Input with
Time of Freeze
31 4 16-Bit Frozen Analog Input with
Time of Freeze
31 5 32-Bit Frozen Analog Input
without Flag
31 6 16-Bit Frozen Analog Input
without Flag
32 0 Analog Change Event—All Vari-
ations
16,7,8
32 1 32-Bit Analog Change Event
without Time
1 6,7,8 129 17,28
32 2
e
16-Bit Analog Change Event
without Time
1 6,7,8 129,130 17,28
32 3 32-Bit Analog Change Event
with Time
1 6,7,8 129 17,28
32 4 16-Bit Analog Change Event
with Time
1 6,7,8 129 17,28
33 0 Frozen Analog Event—All Vari-
ations
33 1 32-Bit Frozen Analog Event
without Time
33 2 16-Bit Frozen Analog Event
without Time
33 3 32-Bit Frozen Analog Event with
Time
33 4 16-Bit Frozen Analog Event with
Time

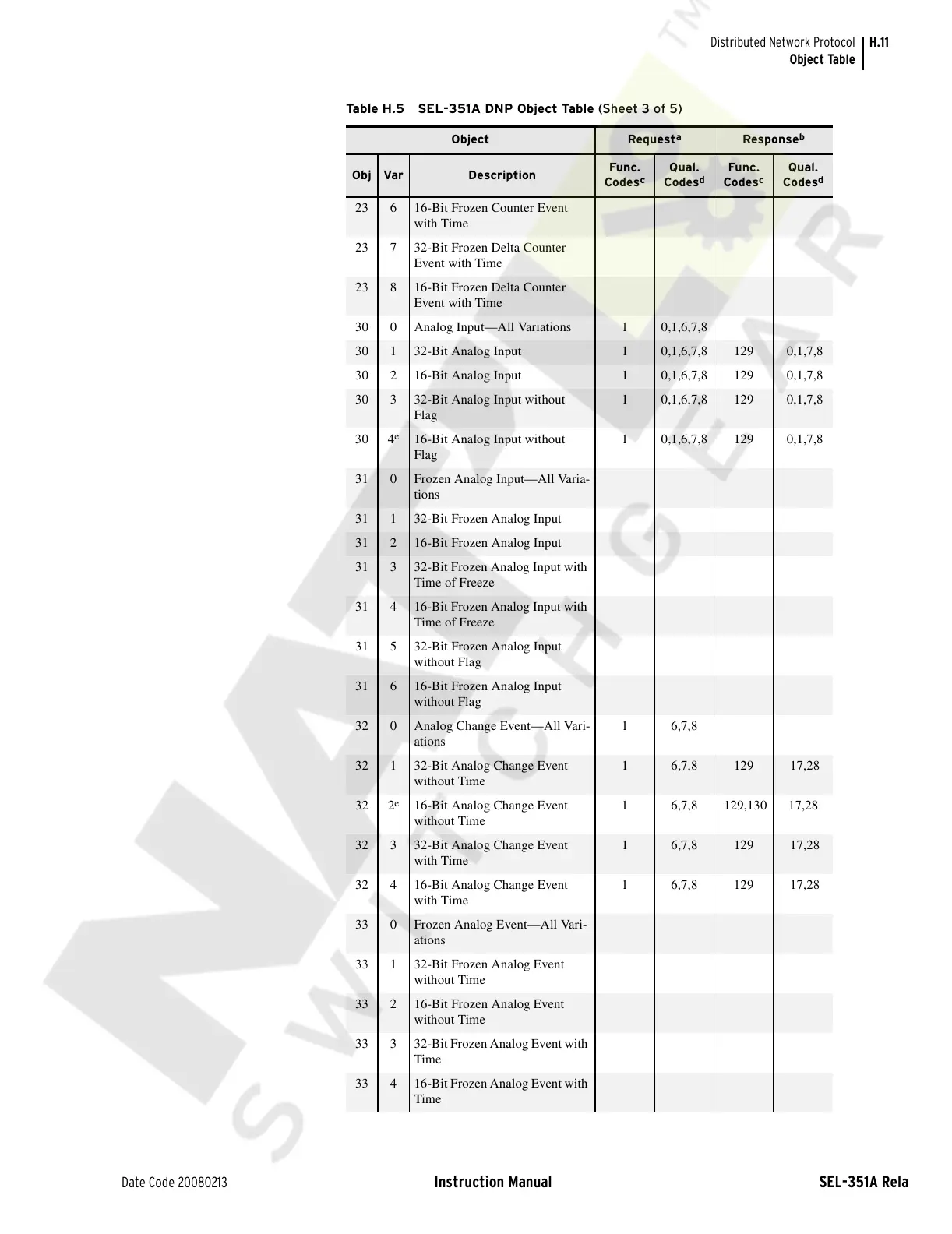

Table H.5 SEL-351A DNP Object Table (Sheet 3 of 5)
Object Request
a
Response
b
Obj Var Description
Func.
Codes
c
Qual.
Codes
d
Func.
Codes
c
Qual.
Codes
d
