SeaDoo 3D User Manual

Section 03 ENGINE SYSTEM
Subsection 03 (REMOVAL AND INSTALLATION)

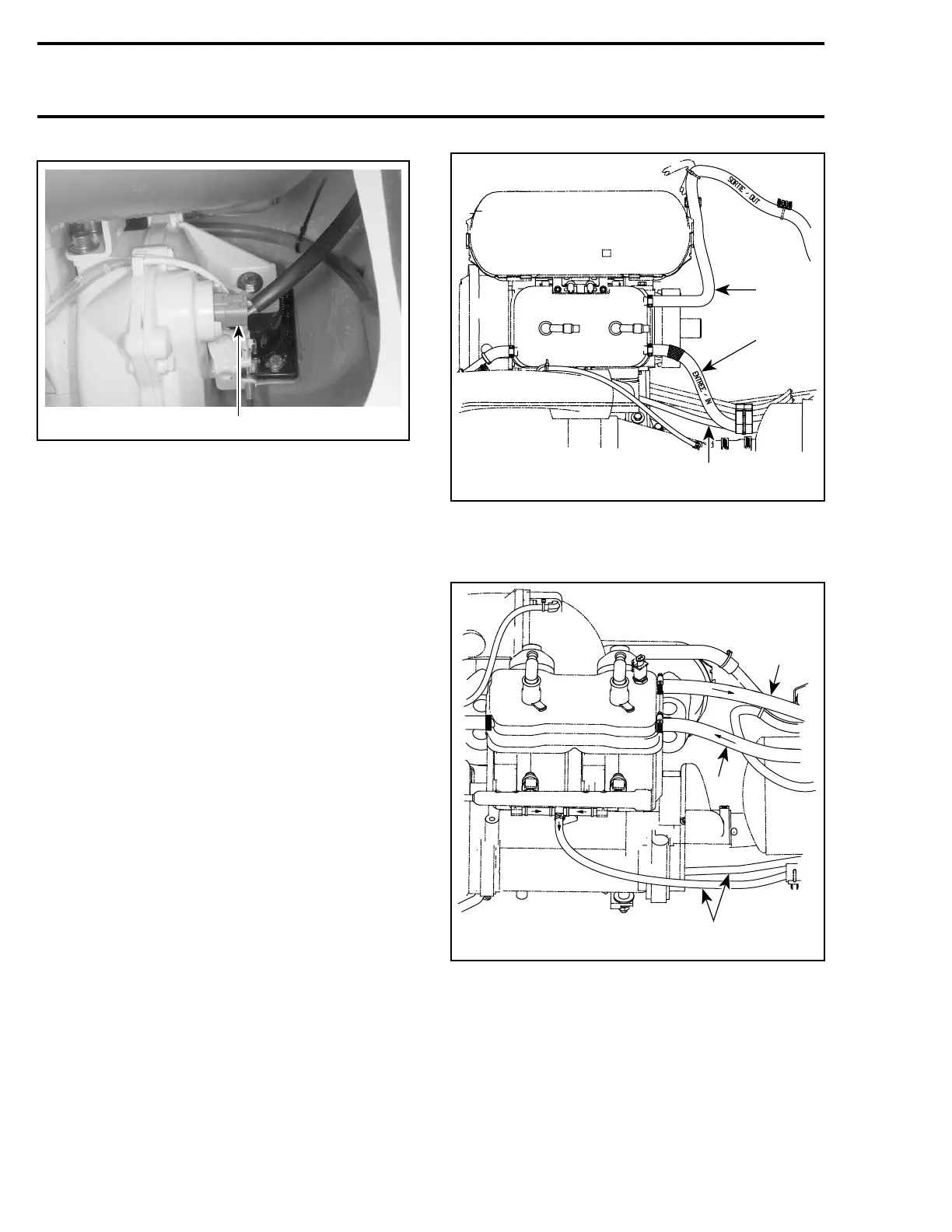

F06D0FA
1
787 RFI ENGINES
1. Unplug connector
787 RFI Engines
Disconnect throttle position sensor (TPS), air
pressure sensor (APS) and air temperature sensor
(ATS).
Disconnect crankshaft position sensor (CPS).
Disconnect connectors from fuel injectors.
RefertoFUELINJECTIONforlocationofsensors
and connectors.
Jet Pump Removal
To withdraw jet pump, refer to JET PUMP.
CAUTION: Whenever removing engine from
watercraft, engine/jet pump alignment must
be performed at reinstallation.
Drive System
To withdraw drive shaft(s), refer to DRIVE SYS-
TEM.
Cooling System
Disconnect the engine water supply hose.
Disconnect the engine water return hose.
NOTE: Engine will have to be raised inside bilge to
disconnect drain hose before removing from bilge.
2
1
3
smr2005-049-001_a
GTI — 717 ENGINES
1. Water supply hose
2. Water return hose
3. Drain hose
1
2
3
smr2005-049-002_a
GTI — 787 RFI ENGINES
1. Water supply hose
2. Water return hose
3. Drain hoses
60 smr2005-049
www.SeaDooManuals.net

SeaDoo 3D Specifications

General

Manufacturer	Sea-Doo
Model	3D
Engine	Rotax 947
Horsepower	130 hp
Category	Personal Watercraft
Engine Type	2-stroke
Width	46.5 inches
Seating Capacity	1 person
