Section 03 ENGINE SYSTEM
Subsection 03 (REMOVAL AND INSTALLATION)
1
2
3
3
smr2005-049-003_a

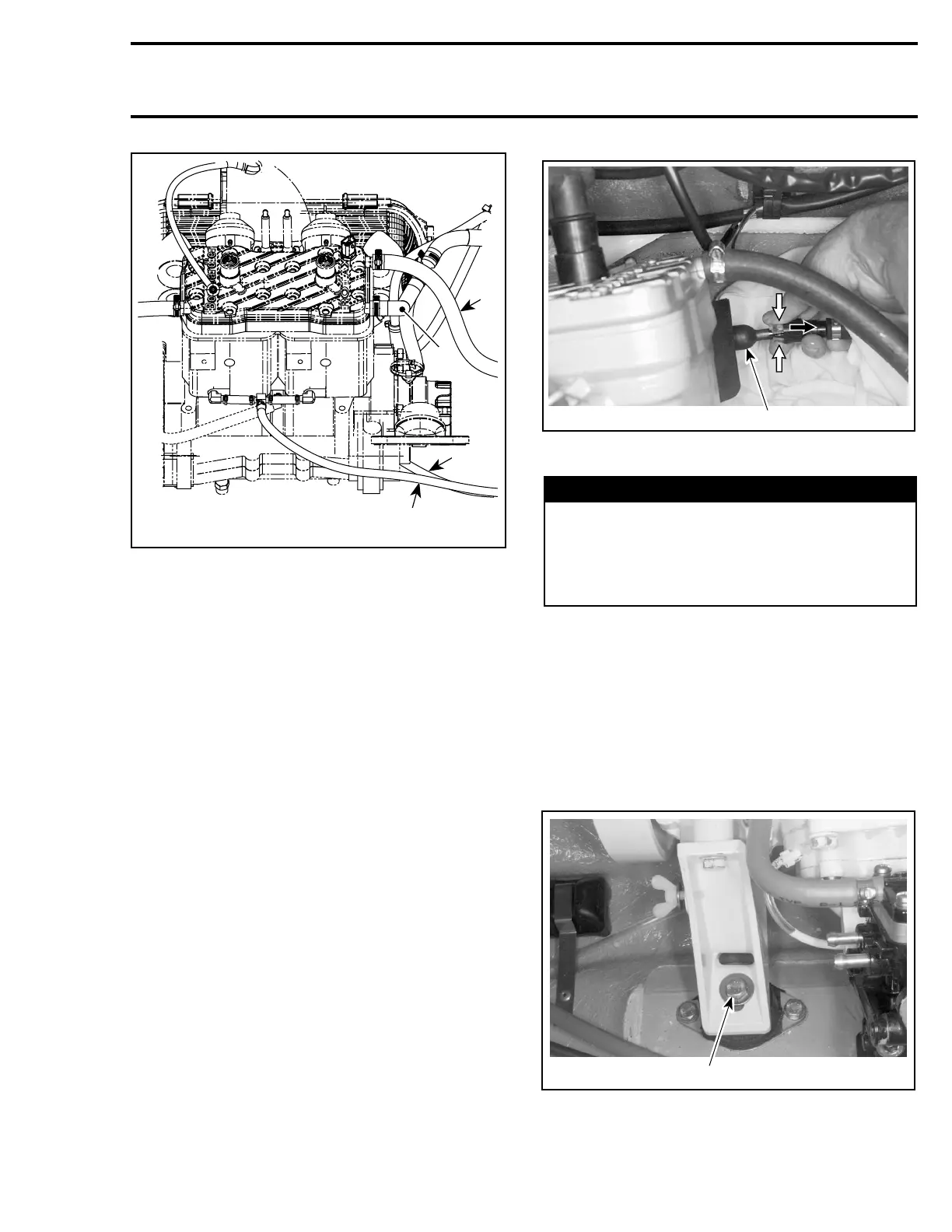

3D — 787 RFI ENGINES
1. Water supply hose
2. Water return hose
3. Drain hoses
Air Intake Silencer
To remove air intake silencer, refer to AIR INTAKE.
Tuned Pipe
To remove tuned pipe, refer to EXHAUST SYS-
TEM.
Carburetor
717 Engines
Turn fuel valve to OFF.
Disconnect fuel supply and fuel return hoses.
To remove carburetor(s), refer to CARBURETOR
for proper procedure.
Throttle Body
787 RFI Engines
Disconnect fuel supply hose from fuel rail.
F07F11A
1
TYPICAL — PRESS TABS AND PULL CONNECTOR
1. Fuel rail
WARNING
The fuel hose may be under pressure. Cov-
er the fuel line connection with an absorbent
shop rag. Slowly disconnect the fuel hose
toreleasethepressure. Wipeoffanyfuel
spillage inside bilge.
Engine Support
NOTE: Be careful when removing engine sup-
port(s) or rubber mount adapters, shims could
have been installed underneath. Shims control
engine/jet pump alignment. Always note position
of shims for reinstallation, to avoid altering engine
alignment.
Remove engine support mount screws.
F02D08A
1
717 ENGINES
1. Remove screw of each engine support
smr2005-049 61
