Section 03 ENGINE SYSTEM
Subsection 03 (REMOVAL AND INSTALLATION)
F06D35A
1

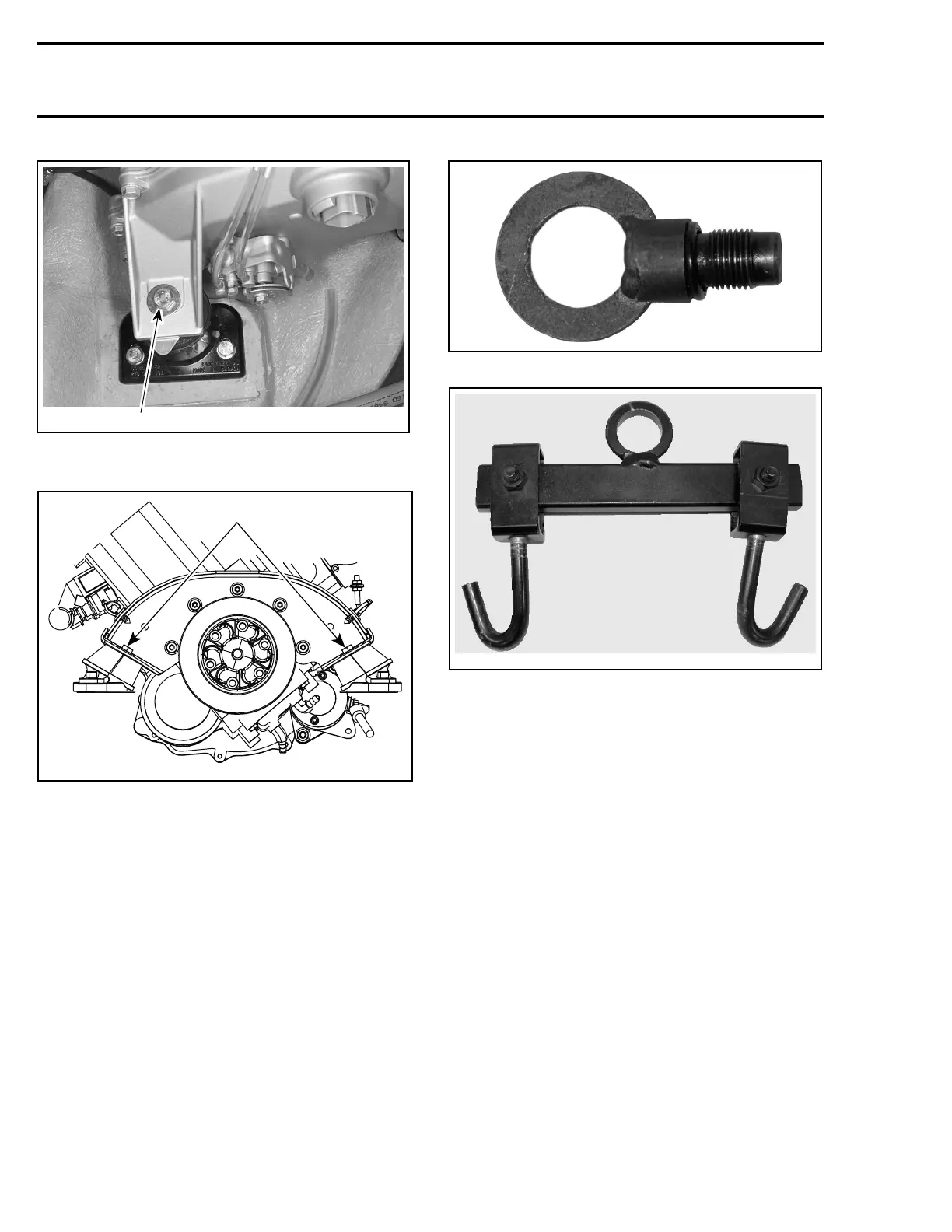

TYPICAL — 787 RFI ENGINES — FRONT SUPPORT
1. Remove screw
1
smr2005-049-007_a
TYPICAL — 787 RFI ENGINES — REAR SUPPORT
1. Remove screws
Lifting Engine
717 Engines
Engine can be easily lifted using the lifting rings
(P/N 529 035 830) and the engine lift tool (P/N 529
035 940).
A33B06A
LIFTING RING
A00B6BA
ENGINE LIFT TOOL
Remove spark plugs and replace by lifting ring.
Hook engine lift tool into lifting ring holes.
Using a chain block, a hoist or other suitable equip-
ment, slightly lift engine to ease the remaining
component removal.
CAUTION: Take care not to damage cable or oil
injection hoses.
787 RFI Engines
Engine can be easily lifted by inserting a hook into
exhaust manifold eyelet.
62 smr2005-049
