Siemens HiPath 1120 - On the Hipath 1150

Installation
4-140 Service Manual
Installing modules
4.7.2.2 On the HiPath 1150

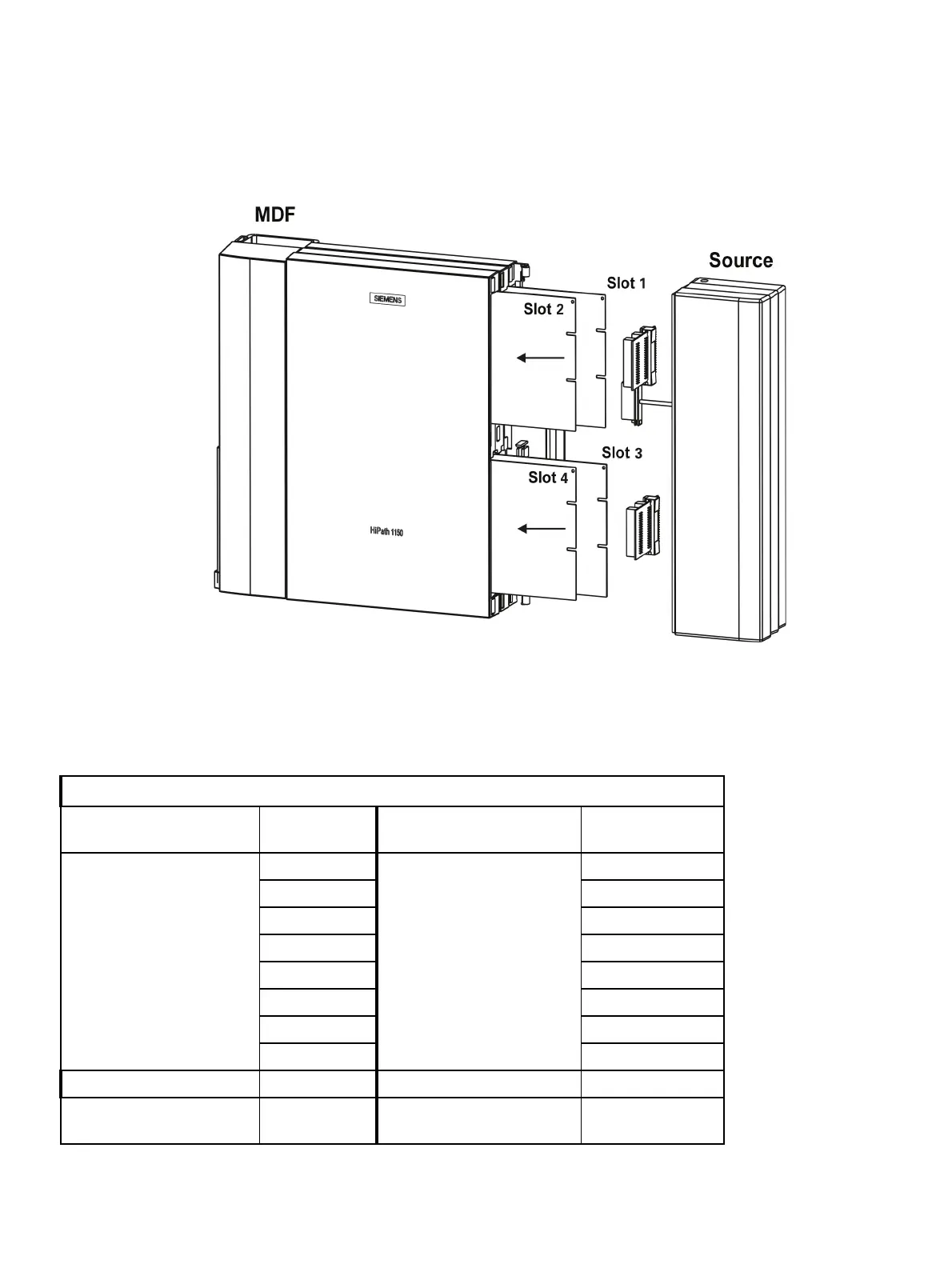

Figure 4-17 Location of modules on HiPath 1150
Table 4-2 shows the modules and the slots where they can be installed with respect to each
system’s limitations.
HiPath 1150
Slot 1
Type of
module
Slot 2
Type of module
Expansion modules
EB 010
Expansion modules
EB 010
EB 012 EB 012
EB 202 EB 202
EB 206 EB 206
EB 210 EB 210
EB 200 EB 200
EB 400 EB 400
EB 800 EB 800
Optional modules U
P0/E
module Optional modules U
P0/E
module
Slot 3
Type of
module
Slot 4
Type of module
