Service Manual
3-73
Modules
Expansion modules (EB)
DIP Switch positions for the TME1 module

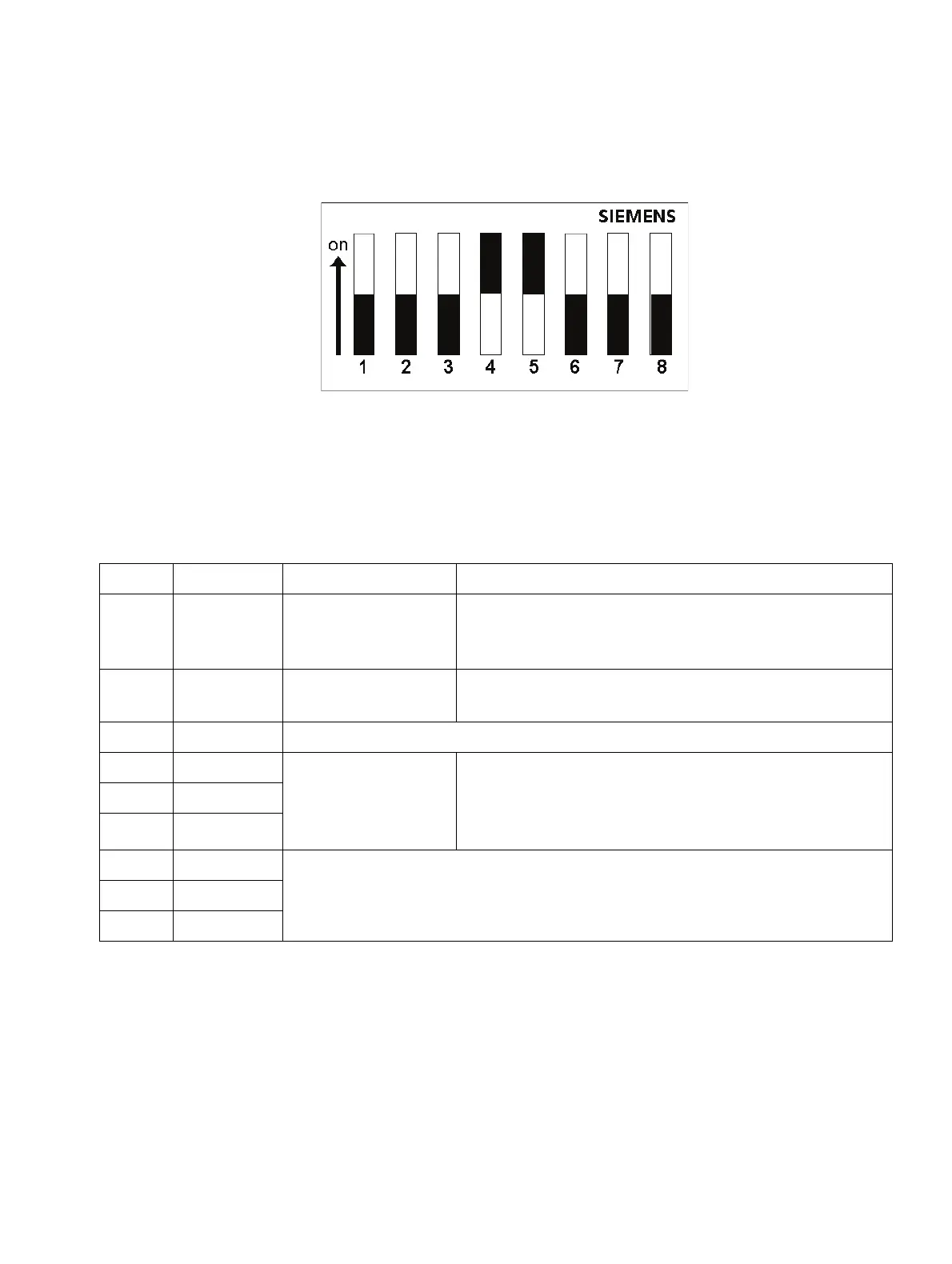

Figure 3-19 DIP Switch for the TME1 module
It is possible to configure the following settings by changing the positions of the Dip switches:
● DIP Switch 1 (S1)
Allows you to delete the flash memory, or choose the baud rate.
Table 3-18 TME1 module, DIP Switch 1
Switch Procedure Meaning Possible settings
1 FE Flash memory off
ON - Deletes Flash memory when the PABX is
turned on
OFF - System will work as usual (default).
2EST
Extended Autotest
(E1 CAS access)
ON - Activates autotest (E1 CAS access)
OFF - Skips autotest (default) (E1 CAS access).
2 EST Reserved for future applications (S2M access)
3BR1
Baud rate
configuration
(3) OFF, (4) OFF and (5) OFF: 9600 bps
(3) OFF, (4) OFF and (5) ON: 19200 bps
(3) OFF, (4) ON and (5) OFF: 38400 bps
(3) OFF, (4) ON and (5) ON: 57600 bps (default)
4BR2
5BR3
6RES
For future applications7RES
8RES
