Installation
4-152 Service Manual
Installing modules
Assembly Diagram

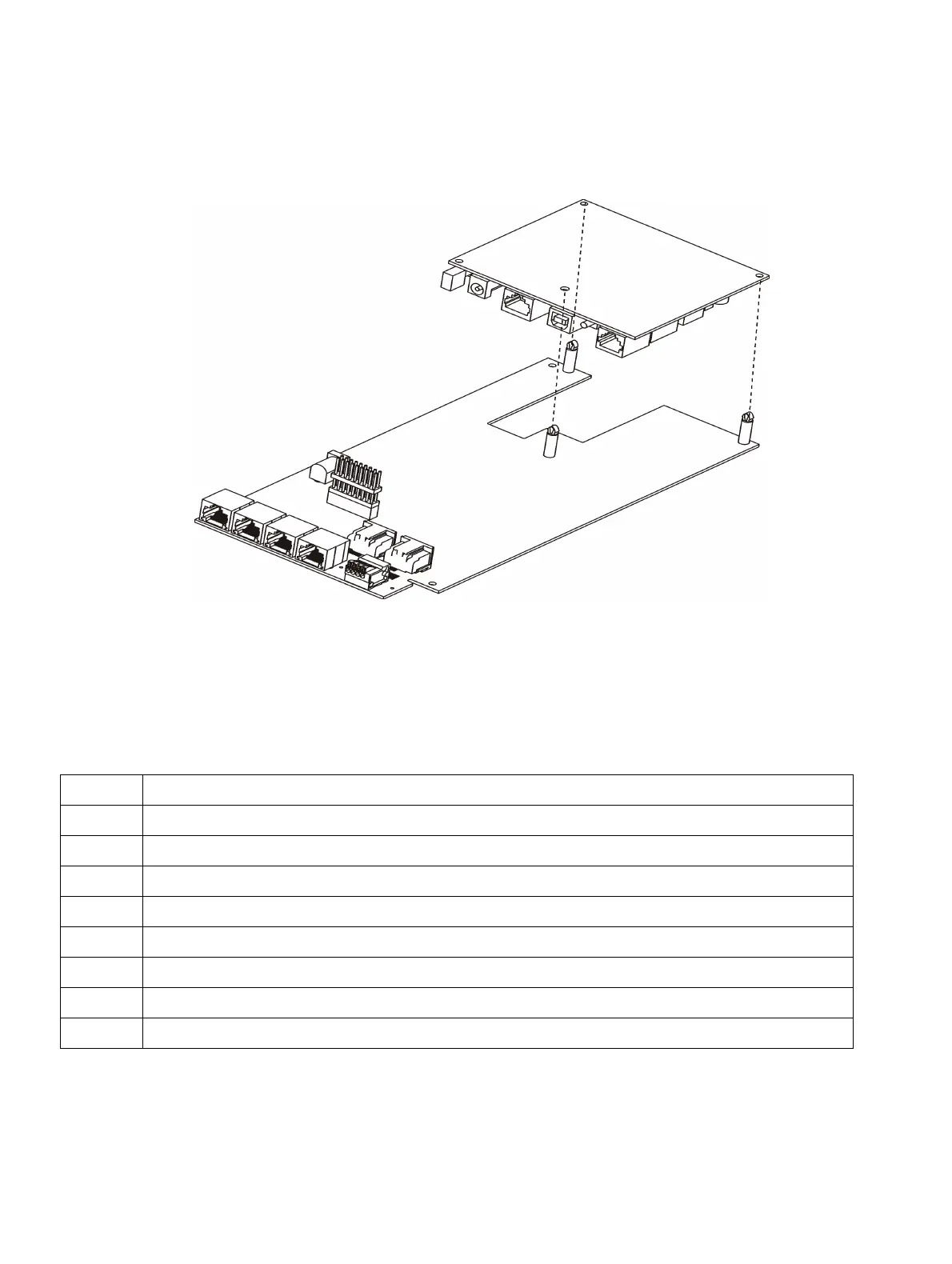

Figure 4-22 Installing a Baby Board ADSLmodule HiPath 1120
4.7.6.2 On the HiPath1150/1190/1190R
Installation Procedures
Step Procedure
1. Select the LIMC module.
2. Attach the separators provided with the module.
3. Attach the Baby Board ADSL module to the separators.
4. Connect the cable of the Ethernet Interface to the X6 Connectors.
5. Connect the cable of the ADSL line to the X14 Connectors.
6. Connect the power cable of the module Baby Board ADSL to the X7 Connectors.
7. “Performing a visual inspection” on page 4-189.
8. Configure the required data (see “Operation” on page 7-278).
X7
X6
X14
X7
X6
X14
