Siemens HiPath 1120 - Figure 4-24 Installing an EVM Module Hipath 1120; On the Hipath 1150

Installation
4-154 Service Manual
Installing modules
Assembly Diagram

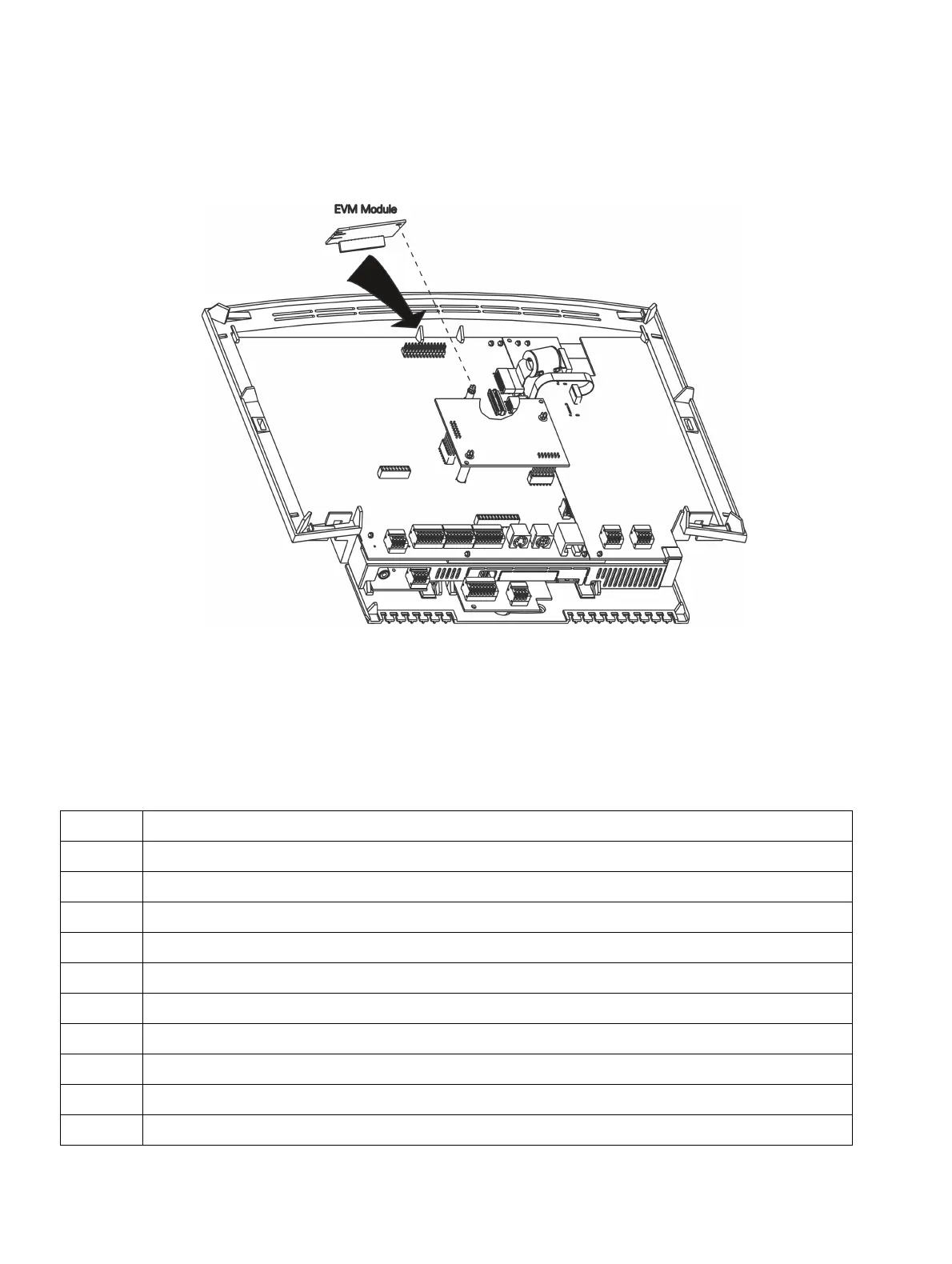

Figure 4-24 Installing an EVM module HiPath 1120
4.7.7.2 On the HiPath 1150
Installation Procedures
Step Procedure
1. Remove the power supply.
2. Remove the Main Distribution Frame’s cover.
3. Remove the backplane.
4. Remove the slots above the MB.
5. Attach the separator provided with the module to the MB.
6. Attach the module to the MB’s pin Connector and to the separator.
7. Reassemble the entire set.
8. “Performing a visual inspection” on page 4-189.
9. Turn on the power supply.
10. Configure the required data (see “Operation” on page 7-278).
