Installation

4-172 Service Manual

Connections to the system’s MDF

4.9.2 HiPath 1150

Example

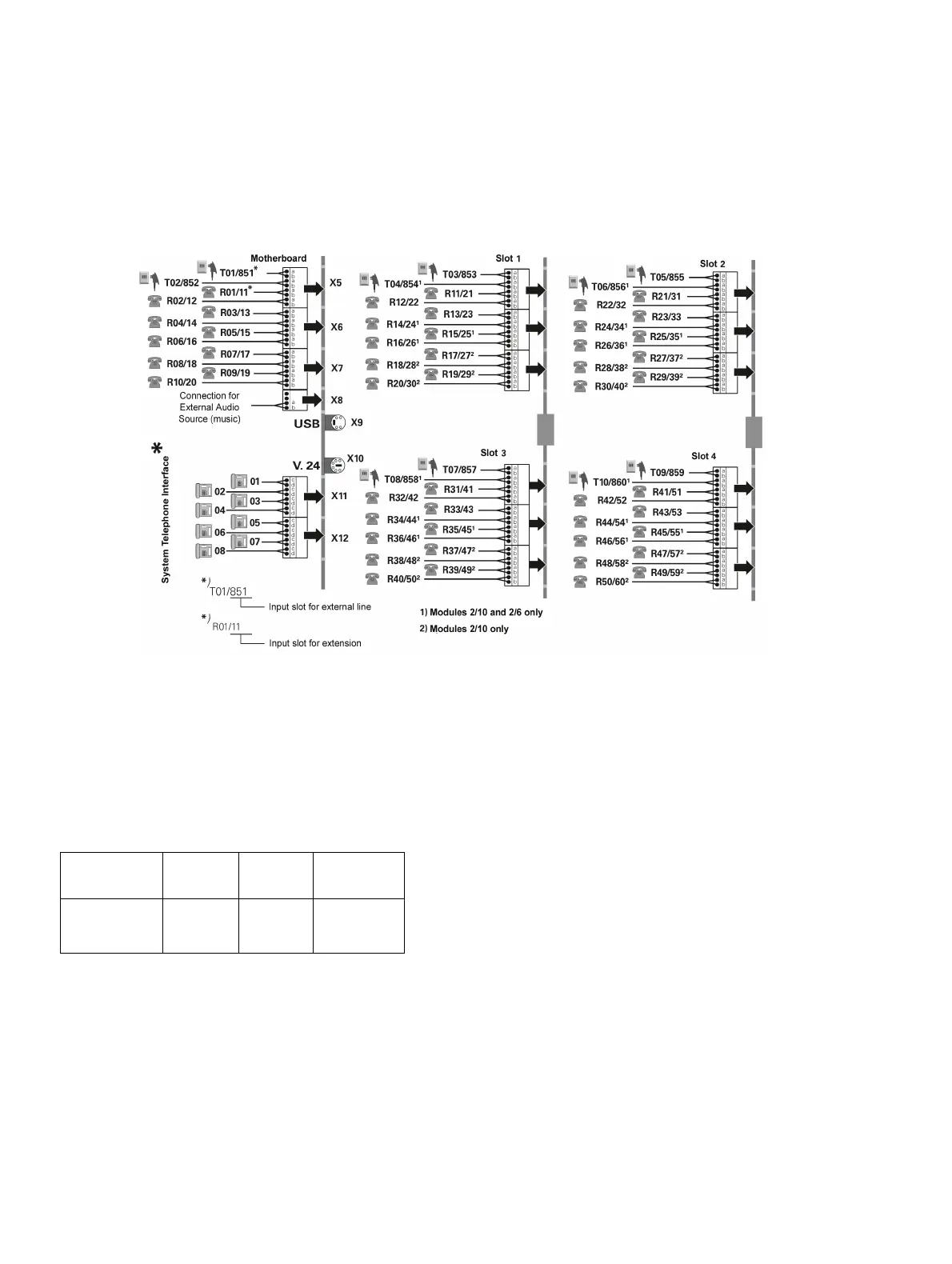

Figure 4-40 Distribution of extensions on the HiPath 1150 Main Distribution Frame

To access the inside of the Main Distribution Frame, remove the safety latch using a small

screwdriver (See figure 4-6). After completing the procedure on the system’s Main Distribution

Frame, replace the safety latch.

Slot

External

Line #

Exten-

sion slot

Internal #

01 801

02 802

*The installation of a system telephone requires a CD pair in conjunction with an A/B exten-

sion slot (see “Installing telephone terminals” on page 4-186).
