3. All groups must be set to the following position:
x = 0, y = 0, z = 0
4.
To make the groups invisible, the translation values are set as follows:
x = 1000000, y = 1000000 and z = 1000000
5. The following elements must have the same name both in the Flux Studio graphic models
and in the XML scene definitions (cf. Chapter Overview (Page 218)):
– Tool
– Cameras
6. Before you can create a .x3d file you must make the following settings in dialog box "Export
Options":

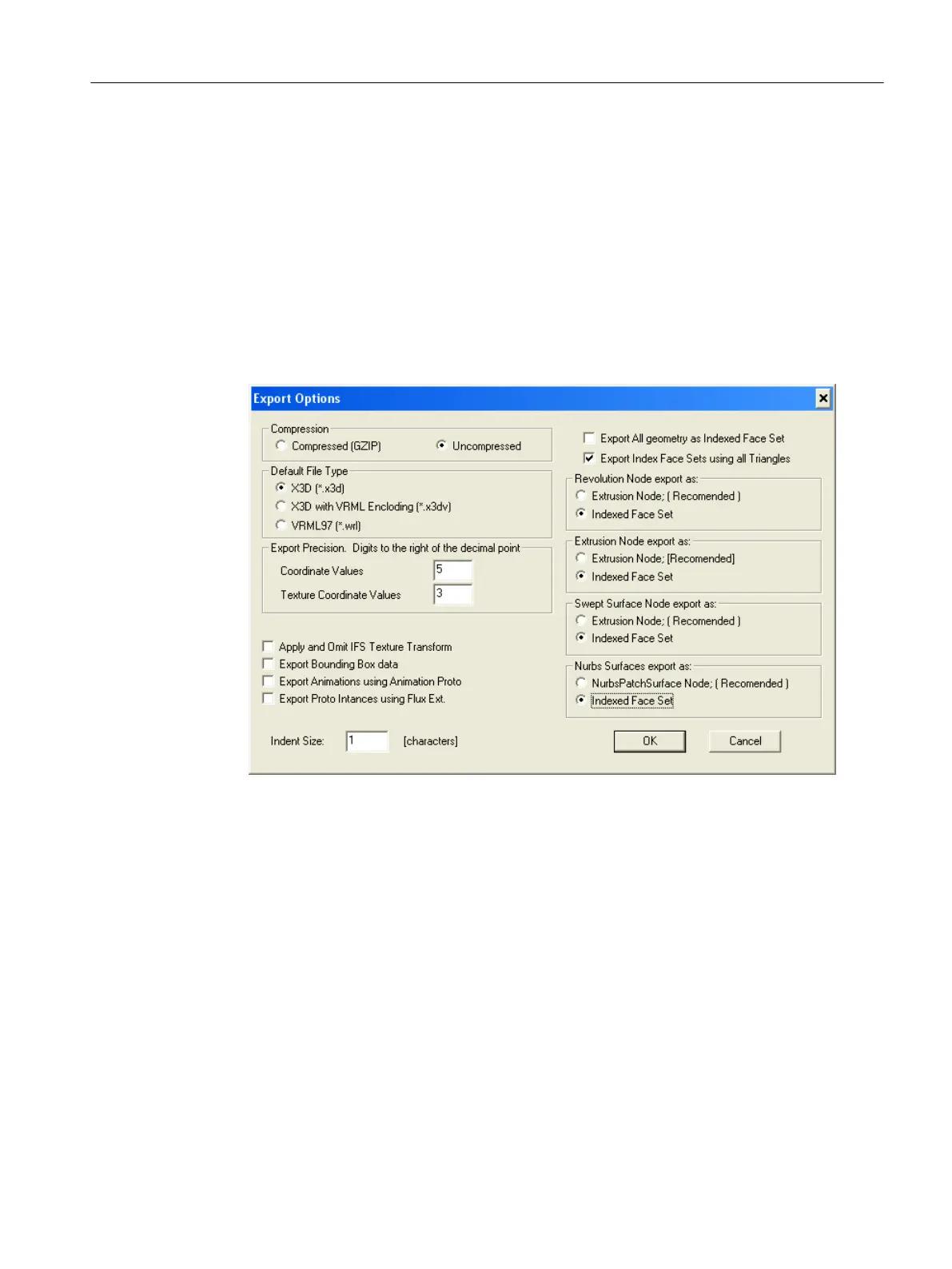

Figure C-2 Settings in the Export Options dialog box
Animated elements
C.2 Modeling
SINUMERIK Integrate Run MyScreens
Programming Manual, 10/2015, 6FC5397-3DP40-5BA3 213

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
