7. We recommend the following settings for texts (see also the following dialog box):
–
Texts must always be centered.
– The size of the text should be 0.2. This size allows you to position the text easily. The
text output by the X3D Viewer is in the font size of the user interface, irrespective of this
value.

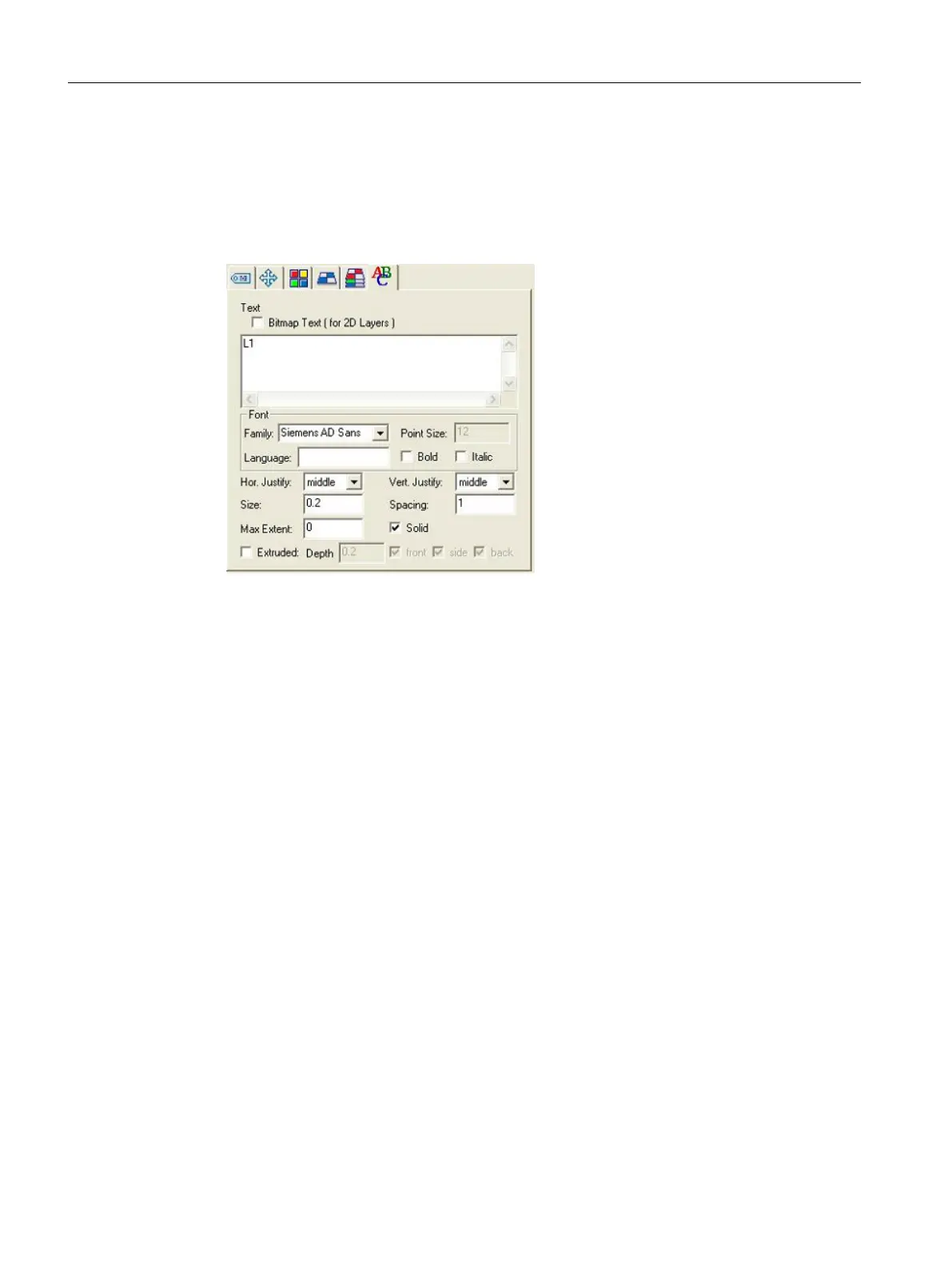

Figure C-3 Settings for text
Animated elements
C.2 Modeling
SINUMERIK Integrate Run MyScreens
214 Programming Manual, 10/2015, 6FC5397-3DP40-5BA3

Siemens SINUMERIK 828D Specifications

General

Control Type	CNC
Operating System	Windows Embedded
Processor	Intel Atom
Display	10.4" color TFT display
Interfaces	Ethernet, USB
Programming	ShopMill, ShopTurn
Operation Panel Size	10.4"
Protection Class	IP65
PLC Memory	2 MB
Spindle Capacity	4 spindles
Hard Drive	CompactFlash
